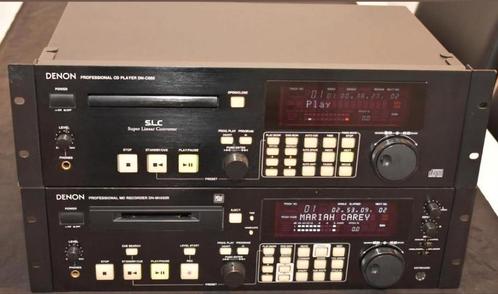

Denon DN-C680 Pro CD speler+DN-M1050R Pro MiniDisc Recorder

Denon DN-C680 + DN-M1050R in goede staat.
Incl.gebruiksaanwijzingen en netkabels.

DN-C680:
Rackmountable 19 inch 3He
Variable Pitch Control: f 9.9% max.
Audio Start-up time: 0.01 second less
Frame Search Accuracy: 1 frame (1 /75 second)

Audio section;
Channels: 2 channels (Stereo), 1 channel (Mono)
Sampling Frequency: 44.1 kHz
Digital Filter: 18 bit 8-times oversampling Digital filter
Frequency Response: 5 to 20,000 Hz (t 1.0 dB)
Total Harmonic Distortion: 0.003% (1 kHz, 0 dB playback, A filter)
Signal to Noise Ratio: 105 dB (1 kHz, 0 dB playback, A filter)
Channel Separation: 100 dB (1 kHz, 0 dB playback, A filter)
Analog Output: 1 kHz, 0 dB playback

Transfer and Connector: Balanced active, XLR connector
Unbalanced, RCA jack
Output Level: Balanced: + 18 dBs, 600 62/ohms
Unbalanced: 2 Vrms, 10 kg/kohms
Output Level Adjust Range: +22 dBs to -20 dBs (Balanced)
Headphone Output: 20 mW (30 to 40 52/ohms)

Digital Output;
Transfer and Connector: Balanced active, XLR connector (1. Common 2. Cold 3. Hot)
Unbalanced, RCA jack
Signal Format: AES/EBU or IEC 958 Type II or SPDIF
Output Level: Balanced: 3 Vp-p, 110 ohms
Unbalanced: 0.5 Vp-p, 75 ohms

Remote connector;
Serial Remote: RS232C/RS422A (switchable), D-sub 9-pin
Parallel Remote: D-sub 25-pin

Power Supply: AC 230 V , 50 Hz
Dimensions: 482(W) x 132(H) x 297(D)mm
Weight: 6.8 kg.
--------------------------------------------
DN-M1050R:
Rackmountable 19 inch 3He
• Auto Level Rec start.
• Auto Track Increment.
• The U-TOC recording method is selectable.
(Manual/Auto is switched according to the preset U-TOC mode.)
• Using CUE Signals to make searches.

Editing;
• Basic Editing- DIVIDE, ERASE TRACK/DISC, COMBINE, MOVE, TRACK/DISC NAME.
• Erase any A-B section.
• A-B section can be inserted into any track.
• Cue signals also can be edited.
• Undo function.
• SCMS : Recording is possible without reception of the copy defeat restriction.
Writing of the copy defeat code is selectable.

• Easy operations from IBM-PC compatible keyboard.
• Large FL Display, Illuminated Rubber Buttons.
• Track Search Select knob (Easy track selection).
• Jog/Shuttle Wheel.
• Program Play.
• Play mode & Finish mode.
• Auto Cue.
• End Monitor.
• End Of Message (EOM).
• Pitch Control (+/- 9.9 %, 0.1 % step).
• Instant Start/
• Rich Array of External Control Terminals.

Specifications;
Signal Compression System: ATRAC (Adaptive Transform Acoustic Coding) 4.0.
Rotating Speed: Approx. 400 to 900 rpm.
Recording/playback time: 74 min. (stereo), 148 min. (mono).

Audio section;
Channels: 2 channels (stereo), 1 channel (mono).
Sampling Frequency: 44.1 kHz
A/D, D/A Conversion: A/D converter: 16-bit; D/A converter: 18-bit.
Frequency Response: 20 Hz-20 kHz (±1.0 dB).
Total Harmonic Distortion: 0.012% or less - playback 0.02% or less - recording.
Signal-to-Noise Ratio: 92 dB or higher - playback, “A”-weighted.
Channel Separation: 86 dB or higher - playback.

Analog Output;
Transfer and Connector: Balanced active, XLR (1. Common, 2. Cold, 3. Hot); Unbalanced, RCA jacks.
Output Level: Balanced: +18 dBm, 600 ohms; Unbalanced: 1.7 Vrms,10 kohms.
Output Level Adjust Range: +22 dBm to -20 dBm (Balanced).
Headphone Output: 20 mW (30 to 40 ohms).

Digital Output;
Transfer and Connector: Balanced active XLR (1. Common, 2. Cold, 3. Hot); Unbalanced, RCA jack.
Signal Format: Balanced: AES/EBU; Unbalanced: IEC-958 Type II/SPDIF.
Output Level: Balanced: 3 Vp-p, 110 ohms; Unbalanced: 0.5 Vp-p, 75 ohms.

Analog Input;
Transfer and Connector: Balanced active XLR (1. Common, 2. Cold, 3. Hot); Unbalanced, RCA jacks.
Input Level: Balanced : +18 dBm, 10 kohms; Unbalanced: 1.7 Vrms, 47 kohms.

Digital Input;
Transfer and Connector: Balanced active XLR (1. Common, 2. Cold, 3. Hot); Unbalanced, RCA jack.
Signal Format: Balanced: AES/EBU or IEC-958 Type I; Unbalanced: SPDIF or IEC-958 Type II.
Input Level: Balanced: 3 to 10 Vp-p, 110 ohms; Unbalanced: 0.3 to 1.0 Vp-p, 75 ohms.

Variable Pitch Control: ±9.9%.
Audio Start-up Time: 0.01 second or less.
Frame Search Accuracy: 1/85 second.

Remote;
Serial Remote: RS-232C/RS-422A switchable, 9600 bps/19200 bps selectable, D-sub 9-pin.
Parallel Remote: D-sub 25-pin.
Keyboard Terminal: PS/ 2 PC keyboard, 101 or 104 key layout recommended.

Dimensions: 482 (W) x 132 (H) x 275.6 (D) mm.
Weight: 6.9 kg.

Opties:
RC-20HM 20 Hot Start Remote unit (foto 3); 175,- Euro.
With RC-20HM,load up to 20 tracks into ACD-26HM RAM memory
for instant "on the fly" track change.
ACD-26HM RAM Hot Start Card (foto 4); 85,- Euro.
Load up to 20 tracks into RAM memory for instant "on the fly" track change.
- Mini PS/2 toetsenbord nieuw (foto 5): 25,- Euro.
