Te koop: NIEUWE 48V 50Ah LiFePO4 Accu€ 425,00
12V 200Ah LiFePO4 accu met display is weer beschikbaar
140918sinds 13 jun. '25, 16:53
Gereserveerd
Ophalen of Verzenden
Thuisbezorgd via PostNL voor € 14,50
Kenmerken
ConditieNieuw
Beschrijving

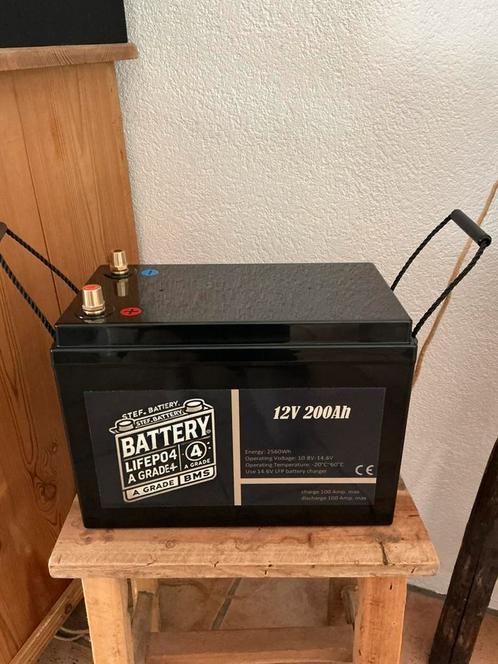

Te koop: 12V 200Ah LiFePO4 accu met display, USB, XLR en meer – nieuw in doos en direct klaar voor gebruik
Bent u op zoek naar een krachtige, betrouwbare en moderne accu voor uw camper, boot of zonne-energiesysteem? Deze 12 Volt 200Ah LiFePO4 accu is precies wat u zoekt. Nieuw in doos, voorzien van handige extra functies en zelf getest op werkelijke capaciteit.
Waarom kiezen voor deze accu:
• Werkelijke capaciteit van meer dan 220Ah
Zelf getest met een belasting van 19A – pas na 12 uur en 15 minuten uitgeschakeld. Testresultaten zijn beschikbaar.
• Tot 6000 laadcycli bij goed gebruik
• 75% meer capaciteit dan traditionele loodaccu’s
• Lichtgewicht ontwerp: slechts 18,7 kg
• Ingebouwde BMS (Battery Management System) beschermt tegen overspanning, onderspanning en balanceert de cellen automatisch
• 1 jaar garantie
Extra ingebouwde functies:
• Aan/uit-schakelaar
• LED-display voor actuele spanningsweergave
• XLR-oplaadpoort (geschikt voor 14,6V laders)
• 12V sigarettenplug-uitgang
• USB-aansluitingen, inclusief USB 3.0 en Type-C
Optionele laders:
• 10A lader: €30
• 20A lader: €60
Toepassingen:
Deze accu is uitermate geschikt voor:
• Campers en caravans
• Fluisterboten en visboten
• Zonnepaneel-opslagsystemen
• Noodstroomvoorzieningen en off-grid gebruik
Nieuw in doos en direct leverbaar. Geen import of dropshipping, maar getest en op voorraad. Alleen serieus geïnteresseerden. Geen onzinbiedingen.
Specification
Model: XSL-12.8V200A
Type: 4S2P-12.8V200Ah
Contents
1. Scope
2. Battery Specification
3. Battery Pack Specification
4. Battery Testing Equipment and Conditions
5. Storage and Others
6. Battery Management System
7. Case Structure of Battery Pack
8. Connection Mode for Parallel Communication
9. Packaging of Battery Pack
10. Appendix
11. Amendment of this Specification
1. Scope
This specification applies to 12.8V200Ah LiFePO4 rechargeable batteries produced by Xinshengli Power Co., Ltd.
2. Battery Cell Specification
No. Item General Parameter Remark
1 Rated Capacity Typical: 200Ah Minimum: 190Ah -
2 Nominal Voltage 3.2V Mean Operation Voltage
3 Internal Impedance ≤1mΩ Measured at AC 1KHZ after 50% charge
4 Dimension Thickness: Max 33mm Width: Max 175mm Height: Max 195mm Initial dimensions
5 Weight 2.2±0.15kg -
6 Standard Charge 0.5C 25±2℃ -
7 Standard Charge Voltage 0.5C constant current charge to 3.65V, then constant voltage charge at 3.65V until current decreases to 0.05C -
8 Standard Discharge 0.5C 25±2℃ -
9 Maximum Discharge Current 1C -
10 Typical Energy 320Wh 25±2℃, 0.5C/0.5C, fresh cell
3. Battery Pack Specification
No. Item General Parameter Remark
1 Combination Method 4S2P -
2 Rated Capacity Typical: 200Ah
3 Factory Voltage 12.8V-12V -
4 Voltage at End of Discharge 8-10.8V -
5 Charging Voltage 14.6V -
6 Internal Impedance ≤80mΩ Measured at AC 1KHZ after 50% charge
7 Standard Charge Constant voltage: see No.5 Cut-off current: 0.02CA -
8 Standard Discharge Constant current: 100A End voltage: see No.4 -
9 Maximum Continuous Charge Current 100A -
10 Maximum Continuous Discharge Current 100A -
11 Operation Temperature Range Charge: 045℃ Discharge: -2055℃ -
12 Storage Temperature Range Less than 3 months: -1045℃ Less than 7 days: -2065℃ -
13 Dimensions 355245180mm -
14 Weight Approx. 17.5kg -
4. Battery Testing Equipment and Conditions
• Appearance: No defects such as scratches, burrs, or mechanical damage. The metal terminals should be free of rust or dirt.
• Measurement Instruments:
• Dimension Measurement: Accuracy ≥ 0.01mm
• Voltmeter: Internal resistance ≥ 10 KΩ/V
• Ammeter: Total external resistance, including ammeter and wire, should be less than 0.01Ω
• Impedance Meter: Uses an AC 1kHz LCR meter
• Test Conditions:
• Temperature: 23±2℃
• Humidity: ≤75%
• Air pressure: 86Kpa~106Kpa
5. Storage and Others
• Long-Term Storage: If stored for more than three months, batteries should be kept in a dry, cool place at a voltage of 25.6V-26V.
• Temperature & Humidity:
• Temperature: 23±2℃
• Humidity: 45%-75%
• Recharge every three months to ensure battery voltage remains within the specified range.
6. Battery Management System
6.1 BMS Functions
• Overcharge detection
• Over-discharge detection
• Overcurrent detection
• Short circuit protection
• Temperature detection
• Balancing function
6.2 BMS Protection Parameters
Item Specification
Overcharge Protection Voltage 3.65±0.025V
Overcharge Release Voltage 3.38±0.02V
Over-Discharge Protection Voltage 2.5±0.02V
Over-Discharge Release Voltage 2.8±0.02V or charge release
Overcurrent Protection Current 200±1A
Overcurrent Detection Delay ≤100ms
Short Circuit Protection 200±1A
Temperature Protection (Charge) 55±3℃
Temperature Recovery (Charge) 50±5℃
Temperature Protection (Discharge) 65±5℃
