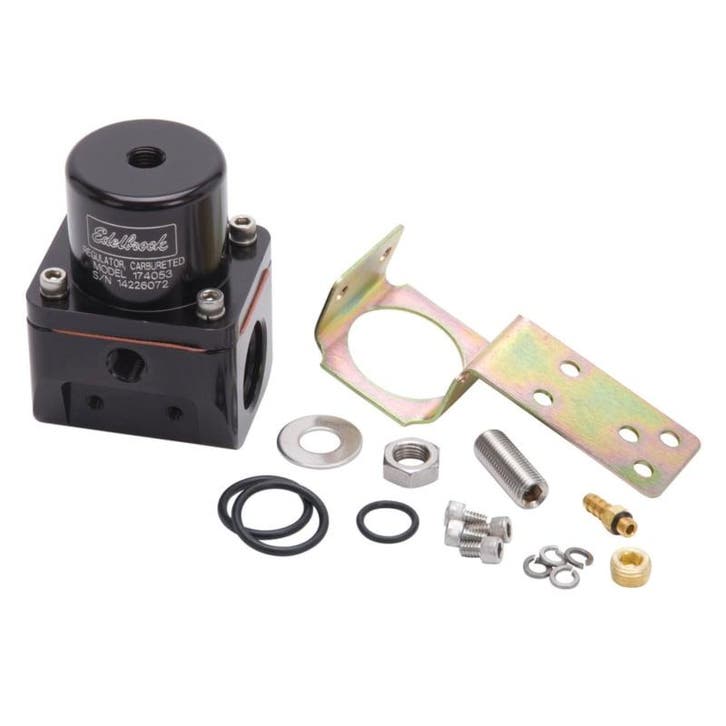

Edelbrock 174053 - Fuel Pressure Regulator, Return-Style, 180GPH
This Edelbrock fuel pressure regulator is machined from aircraft quality aluminum for those who demand the best. This carbureted fuel pressure regulator has an internal diaphragm made of fluorosilicone to ensure high temperature protection resulting in an extended life. This Edelbrock fuel pressure regulator #174051 is compatible with all grades of gasoline, ethanol, methanol and E85 fuels. Pressure regulation slope is 0.75 psi/gal of flow rate change. Will hold fuel system pressure for at least 20 minutes after pump shutdown. Developed for optimum compatibility with Edelbrock electric fuel pumps. This regulator is available with 1/8" NPT gauge port and a boost reference fitting for blow through or pressurized carburetor applications (even beyond 30 psi of boost).

• Manufactured by Essex Industries
• Machined from aircraft quality aluminum
• Have fluorosilicone diaphragm material
• Mounting bracket fittings and hardware included

• DETAILS
  Color/Finish: Black
  Fuel Pressure: 5-10 psi
  Gallons Per Hours: 180
  Gauge Port: Yes
  Inlet Port: -10 AN
  Outlet Port: -10 AN
  Regulator Style: Return-Style
  Return Port: -6 AN
  Vacuum or Boost Port: Yes
