Height And Damper Adjustable Coilover Suspension Kit Comp...

Height And Damper Adjustable Coilover Suspension Kit Compatible For Honda CR-V 1996-2001 1st Gen lowering kit

Introduction

maXpeedingrods SP1 lowering coilover, standard with adjustable rebound damping, separate height adjustment without changing preload, developed damping oil and upgraded racing springs, adjustable camber plate(for some vehicles) and decent outlook , offers you more ability to tune your suspension on performance and gives your vehicle more impressive appearance. Besides, all our coilover are assembled in dust-free factory, which turns out good quality and long life.

Application

Compatible for Honda CR-V 1996-2001 1st Gen. RD1-RD3 compatible for FWD & AWD

Specification

Front and Rear top mount: rubber
Damping: 24 levels rebound damping adjustable
Front spring rate: 10kg/mm(560 lbs/in)
Rear spring rate: 7 kg/mm (392 lbs/in)
Adjustable height: Yes lowering 1" to 3"
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: black body with blue spring

Package included

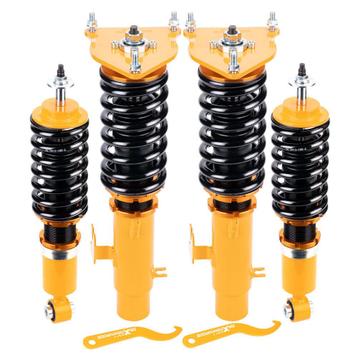

Complete coilovers assembly 2 front and 2 rear
A pair wrench for height adjustment

Dimension

Package dimension : 63*51*21
Weight: 23020g

Feature

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.
2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
3. Front and rear rubber top mount help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts.
4. Full length dust boot keeps shaft and oil seal from damage.

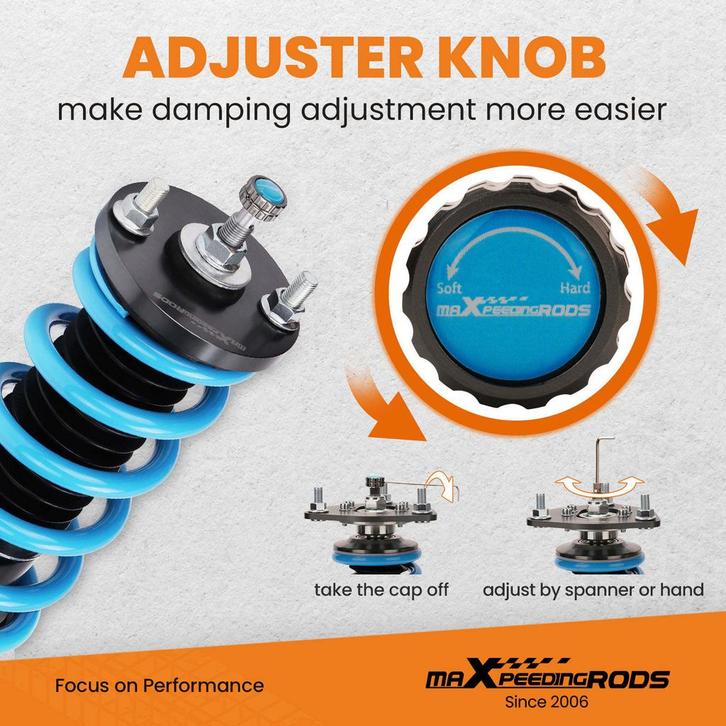

5. Upgraded damper adjust knob makes damping setting easier.
6. Upgraded valving for more smooth ride.
7. Twin-Tube structure allows sufficient stroke within the shock absorber.
8. High-Performance Damping Oil--maintains a stable viscosity in a broad temperature range, which sustains smooth stroke and reliable damping force in a variety of circumstances.
9. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%.
10. Decent appearance benefits from CNC machined parts and special surface treatment.
11. Most pieces in our coilover systems, including mounts, collars and spring perches, are made from 6061-T6 Billet Aluminum resulting in light weight, durable and rust resistant components.
12. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
13. Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed on the vehicle.
14. All coilovers were produced and assembled at dust-free factory which guaranteed the highest quality.

Specifications 2

Spring Rate Front: 10kg/mm(560lbs/in)
Spring Rate Rear: 7kg/mm(392lbs/in)
Front spring inner diameter: 70.5mm
Rear spring inner diameter: 70.5mm
Spring length Front: 200mm
Spring length Rear: 200mm
Front length range: 450-490mm
Rear length range: 500-605mm

Notice

Notice: The coilovers kit will "Lower your car" and does not keep to the original ride height.
