Kenmerken
Conditie
Nieuw
Materiaal
Printeraccessoires
Beschrijving

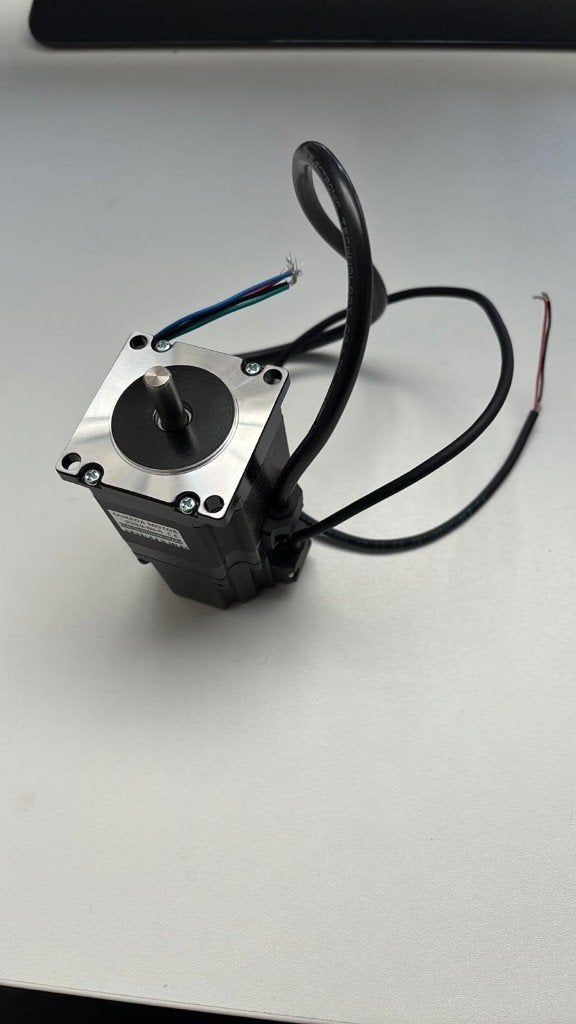

Nieuwe stappenmotoren te koop, wegens overstap naar ander variant. Meerdere beschikbaar.
Nieuw prijs: €63.25
Specificaties:
Phase: 2
Model: OK57DL56-2804A-YS
Step angle: 1.8°
Current: 2.8 A / Phase
Resistance: 0.9 Ohm / Phase
Torque: 1.8 Nm
Induction: 2.5 mH / Phase
Motor Frame Size ：57 x 56mm
Shaft: O-shaft Ф6.35 mm, 22mm long
Connector: 4-wire, 40cm long
Rated Voltage: 24V
Rated Current: 2.8A
Resistance/Phase: 0.9Ω
Inductance/Phase: 2.5mH
Holding Torque:126 Ncm
Precision angle step:±5%
Resistance accuracy:±10%
Precision inductance:±20%
Temperature rise: 80deg Max (rated current, 2 phase on)
Ambient temperature: ( - 20°)-(+ 50°)
Insulation resistance: 100MΩ Min, 500VDC
Insulation Force: 500VAC for a minute
Nieuw prijs: €63.25
Specificaties:
Phase: 2
Model: OK57DL56-2804A-YS
Step angle: 1.8°
Current: 2.8 A / Phase
Resistance: 0.9 Ohm / Phase
Torque: 1.8 Nm
Induction: 2.5 mH / Phase
Motor Frame Size ：57 x 56mm
Shaft: O-shaft Ф6.35 mm, 22mm long
Connector: 4-wire, 40cm long
Rated Voltage: 24V
Rated Current: 2.8A
Resistance/Phase: 0.9Ω
Inductance/Phase: 2.5mH
Holding Torque:126 Ncm
Precision angle step:±5%
Resistance accuracy:±10%
Precision inductance:±20%
Temperature rise: 80deg Max (rated current, 2 phase on)
Ambient temperature: ( - 20°)-(+ 50°)
Insulation resistance: 100MΩ Min, 500VDC
Insulation Force: 500VAC for a minute
...
...
...
...
...
...
...
...
...
...
...
...
