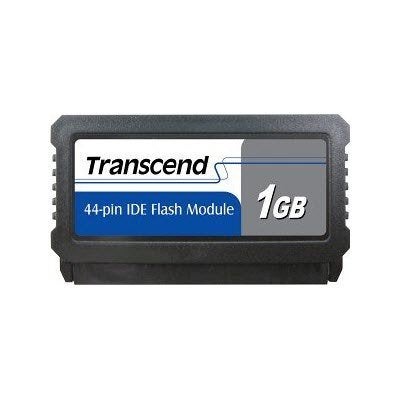

1GB IDE Flash Module (44-Pin Vertical)

Product P/N: TS1GDOM44V-S

Transcend’s IDE Flash Modules are specially designed for use in the demanding industrial environments where industrial PCs, Set-Top Boxes and other computer systems must operate. IDE Flash Modules are a convenient and easy to use solution for expanding an industrial computer’s memory capacity.

Features:

• Fully compatible with devices and O/Ss that support IDE standards.
• Built-in ECC functionality ensures high reliable data transfer.
• RoHS compliant.
• Lower Power Consumption.
• 44-Pin FEMALE Connector.
• The S series supports 50nm Flash
• 2 Year Warranty

Specification:

• Size: 52.0mm x 29.5mm x 6.9mm (with housing)
• Op. Voltage: 3.3V/5V
• Op. Temperature: 0C (32F) to 70C (158F)
• Durability: 10,000 insertion/removal cycles
• Weight: 11.4g
• Humidity: 5% to 95%
• MTBF: 1,000,000 hours

Accessories:

• Quick Installation Guide
• Warranty Card

Dit is een nieuw product !! (Verpakking kan geopend of beschadigd zijn)
15 op voorraad
