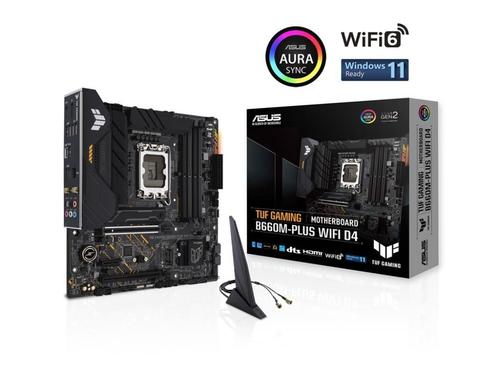

ASUS TUF GAMING MOTHERBOARD B660M-PLUS WIFI D4

12 maanden garantie, gefactureerd.
12 months warranty, invoiced.

Socket: LGA1700
Vormfactor: mATX
2 x M.2
4 x SATA
Wi-Fi 6, Bluetooth 5.2
1 x PCIe 5.0 x16 slot
Intel B660 Chipset*
1 x PCIe 3.0 x16 slot (supports x4 model)
1 x PCIe 4.0 x1 slot


Back Panel I/O Port
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
- 4 x USB 3.2 Gen 2 ports (4 x Type-A)
- 1 x USB 3.2 Gen 1 port (1 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x DisplayPort
- 1 x HDMI port
- 1 x Wi-Fi Module
- 1 x Realtek 2.5Gb Ethernet port
- 5 x Audio jacks
- 1 x Optical S/PDIF out port


USB
Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
4 x USB 3.2 Gen 2 ports (4 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header su[[prts additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports


Ethernet
1 x Realtek 2.5Gb Ethernet
TUF LANGuard


Wireless & Bluetooth
Intel Wi-Fi 6
Bluetooth v5.2


Graphics
1 x DisplayPort
1 x HDMI port
Supports 4K@60Hz as specified in DisplayPort 1.4 and HDMI 2.1


Audio Features
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
-Supports up to 24-Bit/192 kHz playback
- Audio Shielding
- Power pre-regulator reduces power input noise to ensure consistent performance
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers


CPU
Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors


Chipset
Intel B660 Chipset


Memory
4 x DIMM, Max. 128GB, DDR4 5333 (OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*


Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel 12th Gen Processors
M.2_1 slot (Key M). type 2242/2260/2280
- Intel 12th Gen processors support PCIe 4.0 x4 mode
Intel B660 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

• intel Rapid Storage Technology supports SATA RAID 0/1/5/10
• * Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.

Expansion Slots
Intel 12th Gen Processors
1 x PCIe 5.0 x16 slot
Intel B660 Chipset*
1 x PCIe 3.0 x16 slot (supports x4 model)
1 x PCIe 4.0 x1 slot

• *
• Supports Intel Optane Memory H Series on PCH attached PCIe slot.
