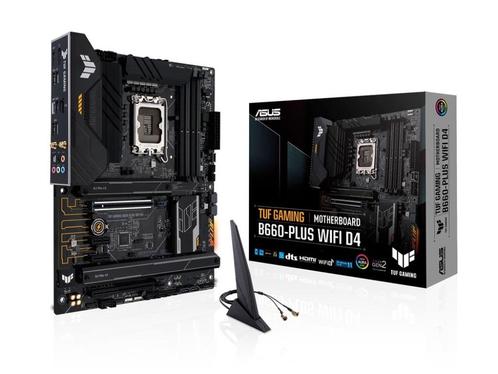

ASUS TUF GAMING MOTHERBOARD B660-PLUS WIFI D4

12 maanden garantie, gefactureerd.
12 months warranty, invoiced.

Socket: LGA 1700
Vormfactor: ATX
Chipset: Intel B660
3 x M.2
4 x SATA
Wi-Fi 6, Bluetooth 5.2
1 x PCIe 5.0/4.0/3.0 x16 slot(s)
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots


Back Panel I/O Port
- 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
- 1 x USB 3.2 Gen 2 port(s) (1 x Type-A)
- 3 x USB 3.2 Gen 1 port(s) (3 x Type-A)
- 1 x DisplayPort
- 1 x HDMI port
- 1 x Wif-Fi Module
- 1 x Intel 2.5Gb Ethernet port
- 5 x Audio jacks
- 1 x Optical S/PDIF out port

USB
Rear USB (Total 6 ports)
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
1 x USB 3.2 Gen 2 port(s) (1 x Type-A)
3 x USB 3.2 Gen 1 port(s) (3 x Type-A)
1 x USB 2.0 port(s) (1 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports


Ethernet
1 x Intel 2.5Gb Ethernet
TUF LANGuard


Wireless & Bluetooth
Intel Wi-Fi 6


Graphics
1 x DisplayPort
1 x HDMI port

• Supports max. 4K@60Hz as specified in DisplayPort 1.4

Supports 4k@60Hz as specified in HDMI 2.1


Audio Features
*Realtek 7.1 Surround High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24/bit /192 kHz playback
Audio Features
- Rear optical S/PDIF out ort
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover


CPU
Intel Socket LGA1700 for 12th Gen Intel Core, Pentium, Gold and Celeron


Chipset
Intel B660 Chipset


Memory
4 x DIMM, Max. 128GB, DDR4 DDR4 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II


Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel 12th Gen Processors
M.2_ 1 slot (Key M), type 2242/2260/2280/22110
- Intel 12th Gen processors support PCIe 4.0 x4 mode.
Intel B660 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (sipports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports


Expansion Slots
Intel 12th Gen Processors
1 x PCIe 5.0/4.0/3.0 x16 slot(s)
Intel B660 Chipset*
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots

• Supports Intel Optane Memory H Series on PCH-attached PCIe slot.
