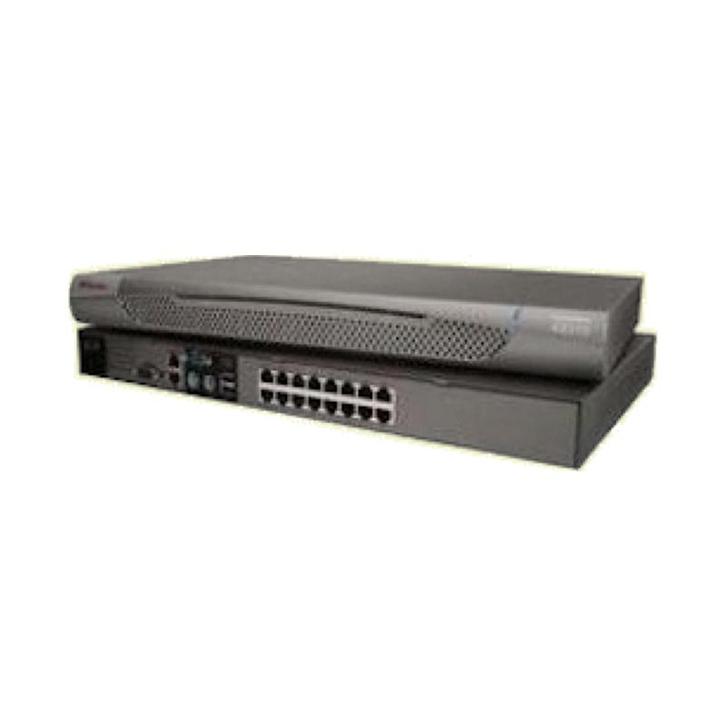

Refurbished Raritan Dominion KX216 met garantie

Raritan Dominion KX216 16-poorts KVM Over IP Switch, 1U 19"-rackmountable met minimaal 2 jaar garantie

Wordt bulk geleverd inclusief rackmountbeugels en netsnoer.

Exclusief Computer Interface Modules (CIMs); deze zijn in overleg met onze verkoopafdeling eventueel direct mee te bestellen.


The Raritan Dominion KX is an enterprise-class, secure, digital KVM appliance that combines analog switching with the industry's highest-performing KVM Over IP (remote access) technology. At the rack the Dominion KX216 provides BIOS-level control of up to 16 servers and other IT devices from a single keyboard, monitor, and mouse. Plus the Dominion KX's integrated remote access capabilities provide the same BIOS-level control of your servers, from anywhere in the world, via Web browser.

The Raritan Dominion KX216 is easily installed in minutes using standard UTP (Cat 5 / 5e / 6) cabling. Its advanced features, including 128-bit encryption; remote power control; dual Ethernet; LDAP, RADIUS, Active Directory, SNMP, syslog integration; and Web management, enable you to deliver higher uptime, better productivity, and bulletproof security ? at anytime from anywhere.

The Dominion KX consists of two components: the digital KVM switch and Computer Interface Modules (CIMs).

• The Dominion KX switch connects to each CIM and provides KVM Over IP capabilities for remote access, as well as a local access port for controlling servers at the rack.
• Each CIM connects to the KVM ports of an individual server and delivers ?keep-alive? keyboard/mouse emulation ensuring that servers never hang.
• Plus, CIMs convert video signals for transmission over UTP (Cat5/5e/6) cabling.
• Remote users easily access Dominion KX from any networked workstation via a standard Web browser.
• A true data center appliance, Dominion KX provides its entire feature set out-of-the-box: 128-bit encryption, remote power control, dual failover
• Ethernet, LDAP, RADIUS, and Active Directory integration.

Eigenschappen:

• Extremely rack-efficient - only 1U in height
• Simple deployment - Dominion KX interconnects with each server via standard, economical Cat5 (UTP) cabling. Servers may be located as far as 50 cable feet from the Dominion KX unit.
• A sophisticated, new product look featuring an ergonomic design and new blue LED indicators for clear easy-to-see power, network activity, and user activity.
• New smaller form-factor CIMs that enable firmware via the network and allow cabling distances of up to 50 feet.
• Employs Raritan's next generation IP technology with the addition of advanced video resolution detection hardware. When a user switches between servers, this system ensures that the transition to a new video source will be fast, accurate, and clear.
• Users can connect up to 16 servers to each switch in a 1U form factor and via Cat5 cabling.
• Includes Raritan's award-winning video compression circuitry from IP-Reach, the industry's highest-performing KVM Over IP technology, to provide remote network access to connected servers. Users can access Dominion KX from anywhere on the network (LAN or WAN [Internet]), allowing them to troubleshoot, reconfigure, and even reboot servers remotely.
• Features local ports for connecting a KVM console at the rack itself. From this console, Dominion KX behaves like a traditional KVM switch, allowing a user to select among 16 servers and control them as if directly connected to the servers' KVM ports. Provides PS/2 and USB ports for additional flexibility, so users may use the latest USB keyboards.
• Provides high-availability with dual Ethernet ports for redundancy. Should one Ethernet switch or interface card fail, Dominion KX can still remain available.
• Allows users to connect Raritan power strips and enables control over these power units in a single, seamless interface. Thus, in an emergency, a system administrator can not only troubleshoot a server remotely, but also even reboot that server using the same interface.
• Users can access Dominion KX216 with a standard web browser; this eliminates the need to install proprietary client software to access Dominion KX.
• Dominion KX is a completely self-contained system, i.e. an "appliance". All its features, including authentication and web-access, are built into the box and do not require a separate server to function.
• Improves upon previous Raritan KVM Over IP technology with the introduction of 15-bit color support (16,000 colors), enabling higher video quality over the network.
• Enables 1 remote user and 1 local user or 2 remote users to connect and access the same server. This is very useful for administrator collaboration for teamed troubleshooting of servers.
• KVM-Over-IP technology allows users to configure video performance to match available bandwidth. When accessing over a LAN (a local network), more bandwidth is available and hence more video information can be sent - resulting in better performance. When accessing via dial-up modem, very little bandwidth is available, and Dominion KX can adapt to provide fast response (but less video information).
• Incorporates 128-bit SSL encryption to ensure that customer server environments are protected from malicious hackers.
• Integrates with industry-standard directory servers, via either RADIUS or LDAP protocols. Allows Dominion KX to integrate with pre-existing usernames/password database for security.
• Remote Administrators can perform all management and configuration changes at the convenience of their desktop.
• Firmware upgrades can be downloaded from the internet, and upgrades can be performed via the network.
• Syslog integration allows Dominion KX's logging capabilities to be centralized in one syslog server (a standard event logging system).
• SNMP integration allows Dominion KX to be monitored with an industry-standard SNMP tool such as HP OpenView.
• Complete integration with Raritan's CommandCenter, allowing enterprise users to consolidate all Dominion devices into a single logical system, with a single IP address, and a single management interface.

Specificaties:

• Form Factor: 1U, volledige breedte, rack mountable (brackets meegeleverd)
• Bedrijfstemperatuur: 0°C tot 40°C
• Verbindingen op afstand:
• Network: Dual Failover 10/100 Ethernet (RJ45)
• Modem-poort: DB9(F) DTE
• Protocollen: TCP/IP, HTTP, HTTPS, UDP, RADIUS, LDAP(S), SNTP, DHCP, PAP, CHAP
• Poorten voor lokale toegang:
• Video: HD15(F) VGA
• Keyboard/Mouse: Mini-DIN6(F) PS/2; or USB A (F)
• Schermresoluties:
• PC text mode: 720x400
• PC graphic modes: 640x480, 800x600, 1024x768, 1152x864, 1280x1024
• Sun® video modes: 1024x768, 1152x900, 1280x1024
• Afmetingen: 439mm (W) x 290mm (D) x 44mm (H)
• Gewicht: 3.9 kg
• Voeding: 100V/240V 50/60Hz 0.6A
• Raritan productnummer: DKX216

Ruim 4500 klanten geven ons een schitterende 9.8 als rapportcijfer (4.9 uit 5 sterren). Je krijgt van ons altijd minimaal twee jaar garantie (ook op refurbished).
