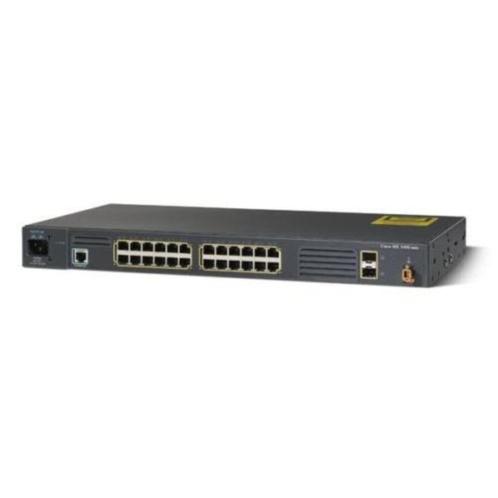

Cisco ME-3400-24TS-A ME 3400 Series Layer 3 Switch

With service provider-friendly hardware and mission-specific software, the Cisco ME 3400 Series is the first access switch family optimized for both the Ethernet-to-the-home (ETTH) triple-play services and Ethernet-to-the-business (ETTB) VPN services. It provides the most complete security solution for Metro Ethernet access that covers subscriber, switch, and network protection. The Cisco ME 3400 Series supports multiple software images to provide a “pay-as-you-grow” deployment model. With service breadth spanning triple-play and Layer 2 and Layer 3 VPN services, reduced total cost of ownership (TCO) and operating expenses (OpEx) can be achieved from a single ETTH + ETTB access solution.

Product Identifiers

• Brand Cisco
• Model 3400-24TS
• MPN ME-3400-24TS-A
• UPC 0882658054778

Key Features

• Form Factor External
• Ports Qty 24
• Data Transfer Rate 100 Mbps
• Data Link Protocol Ethernet
• Compatibility PC

Features

• Other Features Layer 3 switching, layer 2 switching, trunking, VLAN support
• Status Indicators Link activity, link OK, status

Networking

• Networking Type Switch
• Connectivity Technology Wired
• Switching Protocol Ethernet
• Remote Management Protocol HTTP, RMON, RMON 1, RMON 2, RMON 3, RMON 9, SNMP, SNMP 1, SNMP 2, SNMP 2c, SNMP 3, SSH, TFTP, Telnet
• Routing Protocol BGP-4, EIGRP, OSPF, PIM-DM, PIM-SM, RIP-1, RIP-2, Static IP routing
• MAC Address Table Size 8K entries

Connectors

• Interfaces 1 x management – console – RJ-45, 24 x network – Ethernet 10Base-T/100Base-TX – RJ-45

Power

• Power Consumption Operational 30 Watt
• Power Source AC 120/230 V ( 50/60 Hz )
• Power Supply Power supply – internal

Memory

• Flash Memory 32 MB flash
• RAM Memory 128 MB

Dimensions

• Width 17.5 in.
• Height 1.7 in.
• Depth 9.5 in.
• Weight 7 lbs

Miscellaneous

• Enclosure Type External – 1U
• Humidity Range Operating (Range) 5 – 95%
• Max Operating Temperature 122 F
• Min Operating Temperature 32 F
