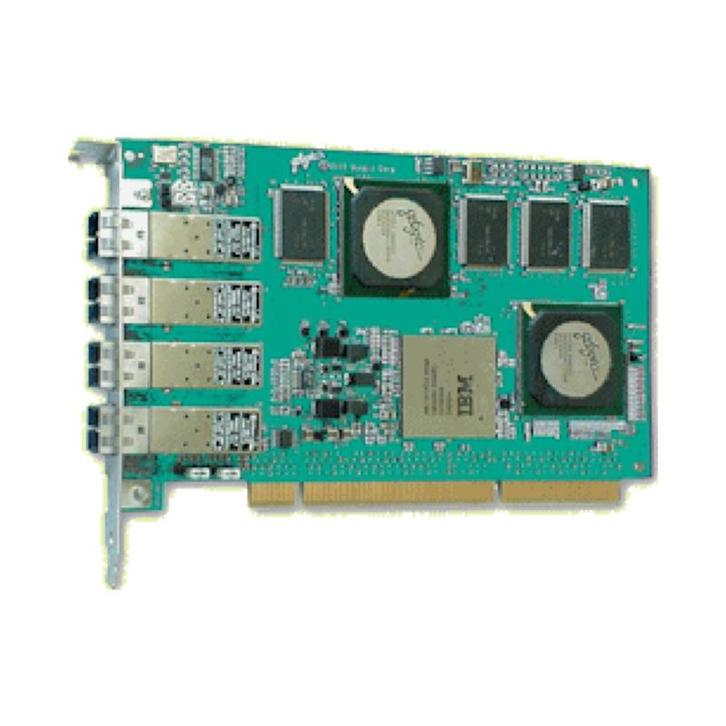

Refurbished Qlogic QLA2344 met garantie

Qlogic QLA2344 SANblade 2Gb 133MHz PCI-X Quad Channel HBA met minimaal 2 jaar garantie

Wordt bulk in antistatische verpakking geleverd.

• Unique, single-integrated Fibre Channel controller for added reliability and optimum performance
• Autonegotiation of Fibre Channel speed bit rate (1 Gbps or 2 Gbps)
• Automatic topology detection
• Concurrent support for SCSI and IP protocols
• Simultaneous initiator and target mode support
• HBA and LUN level failover
• Persistent binding
• LUN masking
• Local and remote management
• Load balancing for optimized performance
• Diagnostics
• Loop back test
• Read/write buffer tests

Host Bus Interface Specifications

• Speed 64-bit, 133-MHz PCI-X
• Voltage 3.3 V
• Compliance PCI Local Bus Specification rev. 2.2, PCI-X Addendum rev. 1.0a, PCI Hot Plug Specification rev. 1.0, PCI Bus Power Management Interface Specification rev 1.1

Fibre Channel Specifications

• Speed 200 MBps maximum at half-duplex, 400 MBps maximum at full-duplex
• Compliance Second Generation FC Generic Services Definition (FC-GS-2), Third Generation FC Generic Services Definition (FC-GS-3), Fibre Channel-Physical and Signaling Interface (FC-PH),
• SCSI-3 Fibre Channel Protocol (SCSI-FCP), Fibre Channel-Arbitrated Loop-2 (FC-AL-2), Fibre Channel-Private Loop Direct Attach Technical Report (FC-PLDA), RFC 2625 IP and APR
• Over Fibre Channel, Fibre Channel Framing and Signaling (FC-FS)
• Topology FC-AL, FC-AL-2, point to point, switched fabric (FL_Port and F_Port)
• Class of service Class 3 Fibre Channel service
• Protocol SCSI-FCP, IP, FC-TAPE
• Buffer credits For 512-byte frame size, 9 credits issued. For 2K-byte frame size, 3 credits issued.

Physical Specifications

• Ports Four
• Media Multimode optic
• Optics Short wave laser
• Form factor Half size: 17.78 cm~10.67 cm (7.0"~4.2")
• Bracket size Standard size
• Connectors Four LC-style connectors that support non-OFC, multimode fibre optic cabling using small form factor optical transceiver modules
• Power consumption ~ 16.0 watts

Environment and Equipment Specifications

• Airflow 0 lf/m or 100 lf/m, depending on Temperature (see below)
• Temperature Operating: 0‹C/32‹F to 40‹C/104‹F (no air flow); 0‹C/32‹F to 55‹C/131‹F (100 lf/m airflow). Storage: .20‹C/.4‹F to 70‹C/158‹F
• Humidity Relative (noncondensing): 10% to 90%, Storage: 5% to 95%
• Distance 1 Gbps: 500 meters 50/125 ƒÊm fiber, 300 meters 62.5/125 ƒÊm fiber
• 2 Gbps: 300 meters 50/125 ƒÊm fiber, 150 meters 62.5/125 ƒÊm fiber
• Cable 50/125ƒÊm multimode fiber, 62.5/125 ƒÊm multimode fiber

Door Qlogic geproduceerd voor HP/Compaq; partnummers: 403436-001, AG051-63001.
