Goed werkende Netwerk tester.
Wiremapping en lengte meting.
25,-

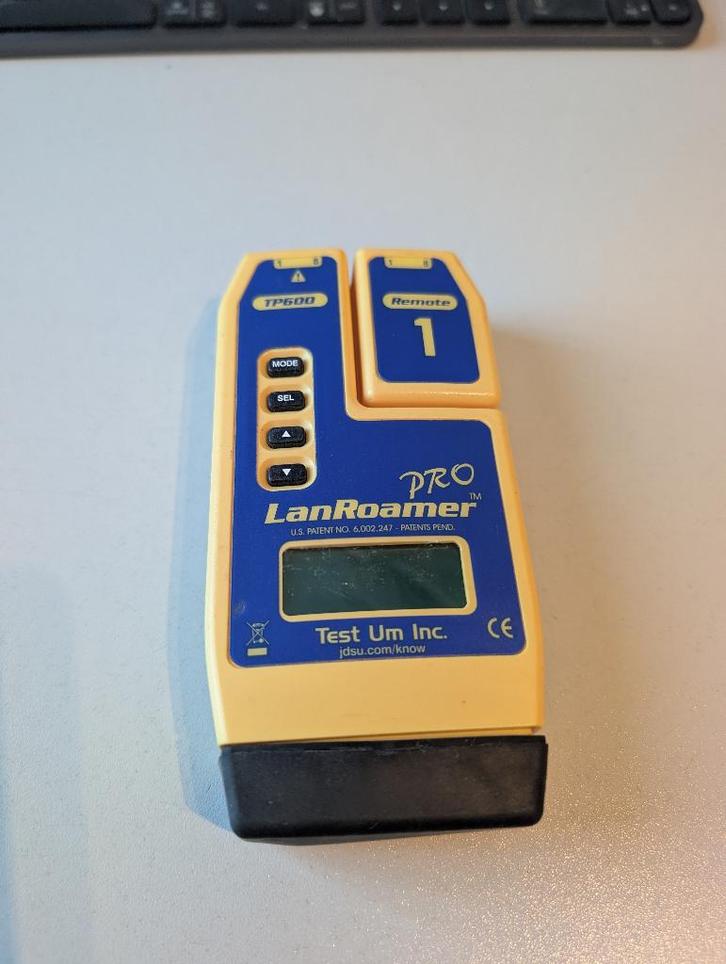

This high-performance length measurement CAT 5/6 tester identifies multiple faults clearly without interpretation for fast results; clear wiremapping form displayed on 2-line, 16-character LCD display; and measures cable length.

TP600 LanRoamerPROtm Features:
l
Measures cable length as a stand-alone function
l
Test for short, opens, miswires, reversals and split pairs
l
Identifies multiple faults clearly without interpretation
l
Clear wiremapping form displayed in 2-line, 16-character LCD display
l
Auto-off/Auto-on. Up to 10 times better battery life than other testers
l
One-ended testing with Pre-test mode for fast results
l
Built-in tone generator with selectable tones and pair capability

Identification:
Split up pairing, open ends, vein permutations, couple permutations and short circuits
Debug position per pair:
Split up, opens , miswires, reversals and shorts
Minimum cable length:
Split pair: 1 meter, Pre-test: 1.25 meter
Maximum cable length cat 5/6:
800 meters, split pair at UTP: 330 meters
Cable types:
Shielded and unshielded twisted pair cables
Adjustable capacity:
From 32.5 pF to 131.5 pF in steps of 0.5 pF
Automatically repeat speed:
5 Seconds
Signal:
Visually and sound
Tone generator:
4 Different tones. Tone is selected for a wire, reversal or for all reversals
Volt of tone generator:
10 Volts pp
Keyboard:
4 Buttons
LCD-display:
39 x 15 mm
Identification number loop-back & adapter:
1
Connection:
Sender: RJ45 f, workplace & loop-back & adapter: RJ45 f
Temperature:
Use: 0 °C to 50 °C, Storage: -10 °C to 60 °C
Relative humidity:
10% to 90%
Power requirements:
Sender: 9 Volt, Receiver: 9 Volt
Battery life:
Cable test: 120 hours
Battery indication:
Battery end indication
Automatic disconnection:
5 Minutes, at tone: 2.4 hour
Physical:
Length: 145 mm, Width: 72 mm, Height: 30 mm, Weight: 176 grams
Qualified:
CE, RoHS and WEEE
