Kramer VP-200xln 1:2 Computer Graphics Video Line & Distribu

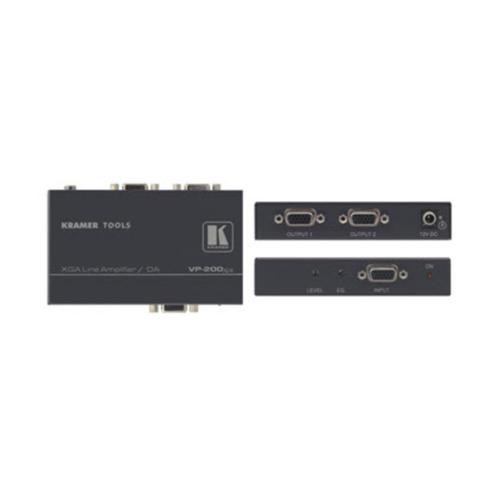

The VP-200xln is a high-performance line and distribution amplifier for computer graphics video signals with resolutions up to and exceeding UXGA. It provides controls to compensate for signal losses inherent in long cable runs.

Features & Benefits

• High Bandwidth – 400MHz (-3dB).
• HDTV Compatible.
• Level (Gain) and EQ (Peaking) Controls.
• ID Bit Control.
• AC/DC Coupling Selection – Individually for R, G, & B signals.

Product Specifications

• Inputs 1 UXGA on a 15-pin HD (F) connector
• Outputs 2 UXGA on 15-pin HD (F) connectors
• Max Output Level 2Vpp
• Bandwidth 400MHz
• Diff. Gain 0.05%
• Diff. Phase 0.03Deg
• K-Factor <0.05%
• S/N Ratio 71dB
• Controls Level: -1.5dB to +6.1dB; EQ.: 0 to +7.3dB @50MHz
• Coupling AC/DC
• Power Consumption 12V DC 95mA
• Operating Temperature 0° to 40°C (32° to 104°F)
• Storage Temperature -40° to +70°C (-40° to 158°F)
• Product Dimensions W, D, H 4.72″ x 2.81″ x 0.96″ (12.00cm x 7.15cm x 2.44cm)
• Product Weight 0.4 lbs (0.2kg)
