Kramer 105A 1:5 Stereo Audio Distribution Amplifier
€ 39,95
Verzenden
Verzenden voor € 17,50
161sinds 13 apr. '25, 20:14
Kenmerken
ConditieGebruikt
Beschrijving

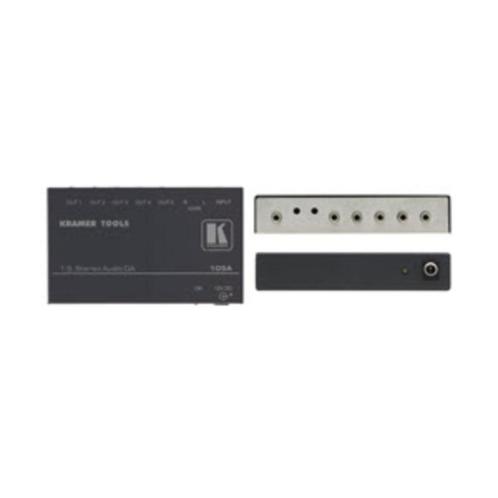

The 105A is a high−performance distribution amplifier for unbalanced stereo audio signals. It takes one stereo input and distributes the signal to five identical stereo outputs.
The 105A is part of the mini-series of compact distribution amplifiers. It accepts one unbalanced input on a stereo mini-plug and outputs five identical stereo audio signals through 3.5mm mini plugs. Typical applications are for consumer audio equipment distribution or can be used in conjunction with video distribution amplifiers to distribute the audio for VCR’s or DVD’s.
Level (Gain) Controls.
S/N Ratio – 80dB (unweighted).
Compact Kramer TOOLS™ – 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T rack adapter.
TECHNISCHE SPECIFICATIES
INPUT: 1 unbalanced stereo/balanced mono, 1Vpp/33kΩ on a 3.5mm mini jack.
OUTPUTS: 5 unbalanced stereo/balanced mono, 1Vpp/50Ω on 3.5mm mini jacks.
MAX. OUTPUT: 5Vpp.
AUDIO BANDWIDTH (-3DB): 20kHz.
S/N RATIO: 80dB unweighted.
CONTROL: Left and right gain rear trimmers (0 to +3.5dB).
COUPLING: AC.
AUDIO THD + NOISE: 0.03% (2nd harmonic).
POWER CONSUMPTION: 12V DC, 100mA.
DIMENSIONS: 12cm x 7.5cm x 2.5cm (4.7” x 2.95” x 0.98”) W, D, H.
WEIGHT: 0.28kg (0.62lbs) approx.
ACCESSORIES: Power supply.
OPTIONS: RK−3T 19″ rack adapter.
The 105A is part of the mini-series of compact distribution amplifiers. It accepts one unbalanced input on a stereo mini-plug and outputs five identical stereo audio signals through 3.5mm mini plugs. Typical applications are for consumer audio equipment distribution or can be used in conjunction with video distribution amplifiers to distribute the audio for VCR’s or DVD’s.
Level (Gain) Controls.
S/N Ratio – 80dB (unweighted).
Compact Kramer TOOLS™ – 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T rack adapter.
TECHNISCHE SPECIFICATIES
INPUT: 1 unbalanced stereo/balanced mono, 1Vpp/33kΩ on a 3.5mm mini jack.
OUTPUTS: 5 unbalanced stereo/balanced mono, 1Vpp/50Ω on 3.5mm mini jacks.
MAX. OUTPUT: 5Vpp.
AUDIO BANDWIDTH (-3DB): 20kHz.
S/N RATIO: 80dB unweighted.
CONTROL: Left and right gain rear trimmers (0 to +3.5dB).
COUPLING: AC.
AUDIO THD + NOISE: 0.03% (2nd harmonic).
POWER CONSUMPTION: 12V DC, 100mA.
DIMENSIONS: 12cm x 7.5cm x 2.5cm (4.7” x 2.95” x 0.98”) W, D, H.
WEIGHT: 0.28kg (0.62lbs) approx.
ACCESSORIES: Power supply.
OPTIONS: RK−3T 19″ rack adapter.
