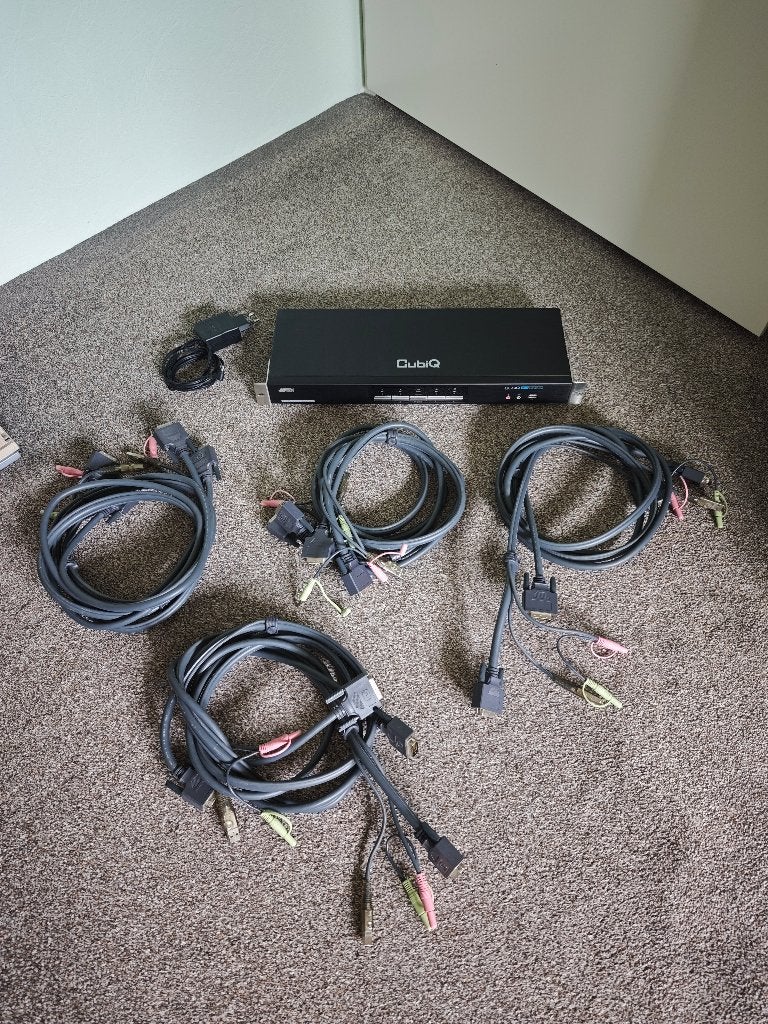

Aangeboden een ATEN CS1644 4-Port USB 2.0 DVI Dual View KVM switch.
De switch heeft altijd naar behoren gefunctioneerd en gaat weg i.v.m. upgrade.

De Switch is voorzien van een 19" bevestigingsbeugels (zie foto's) voor het kunnen plaatsen in een rack opstelling.

laatste Firmware versie (v1.2.117 van 2014-06-25) is reeds geïnstalleerd.

onderstaand de specificaties van de fabrikant:

• 4-port DVI Dual View KVMP switch with USB 2.0 support and 2.1 channel surround sound audio
• One dual-screen USB console controls four dual-screen computers and two additional USB devices
• 2-port USB 2.0 hub built in
• Fully compliant with the USB 2.0 specification
• Full bass response provides a rich experience for 2.1 channel surround sound systems
• Independent switching of KVM, USB, and Audio focus
• DVI digital and analog monitor support - fully compliant with the DVI specifications; also HDCP compliant
• Superior video quality: 1920 x 1200 @ 60Hz (Single Link); 2560 x 1600 @ 60Hz (Dual Link)
• nVidia 3D Vision Ready: Works with 120Hz LCD monitors and active shutter glasses to create a 3D environment with maximum resolution of up to 1920 x 1080
• Supports widescreen resolutions
• Computer selection via front panel pushbuttons and hotkeys
• Multiplatform support – Windows, Linux, Mac, Sun
• Console mouse port emulation / bypass feature supports most mouse drivers and multifunction mice
• Video DynaSync™ - stores the console monitors EDID (Extended Display Identification Data) to optimize display resolution
• Complete keyboard emulation for error-free booting
• Sun/Mac keyboard support and emulation
• Auto Scan Mode for monitoring all computers
• Firmware upgradable
