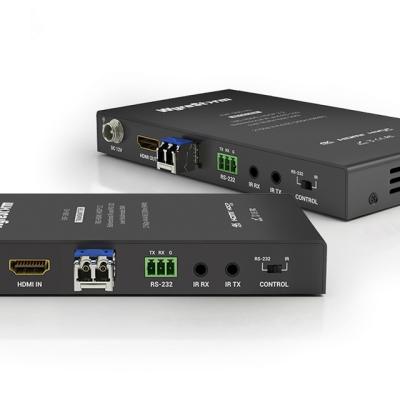

Wyrestorm EXF-300-H2 Fiber Extender - Nieuw

meerdere beschikbaar

18Gbps 4K HDR OM3 Multi-Mode Fiber Extender With HDCP 2.2 and Bidirectional IR or RS-232


WyreStorm’s first fiber-optical extender, ensuring perfect transmission of 18Gbps HDMI signals to 300m/984ft. The EXF-300-H2, is compatible with 2160p 4:4:4/60 or high frame rate HDR content with HDCP 2.2 encryption and will send it via a 10G OM3 multi-mode cable, without any effect from EM or RF interference along the way.


Technical Specifications
AUDIO & VIDEO
Inputs
TRANSMITTER
1x HDMI: 19-pin type A
RECEIVER
1x OM3: SFP+ Fiber LC Connection
Outputs
1x OM3: SFP+ Fiber LC Connection
1x HDMI: 19-pin type A
Output Video Encoding
TMDS over fiber
Encoding Data Rate
10Gbps
Audio Formats
2ch Analog/PCM | Multichannel: LPCM and Up to Dolby TrueHD and DTS-HD Master Audio
Video Resolutions (max)
1920x1080p @60Hz 16bit
3840x2160p @60Hz 10bit 4:2:0 HDR
4096x2160p @60Hz 8bit 4:4:4
Supported Standards
DCI | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100
Maximum Pixel Clock
600mHz


COMMUNICATION & CONTROL
HDMI
HDMI | HDCP 2.2 | EDID | DVI/D supported with adapter (not included)
Fiber Multimode
HDMI | HDCP 2.2 | EDID
RS-232
1x RS-232: 3-pin Phoenix | Bidirectional over OM3
IR
1x IR RX: 3.5mm (1/8in) TRS Stereo | 1x IR TX: 3.5mm (1/8in) TS Mono | Bidirectional over OM3
POWER
Power Supply
12V DC 0.5A
Max Power Consumption
4W
