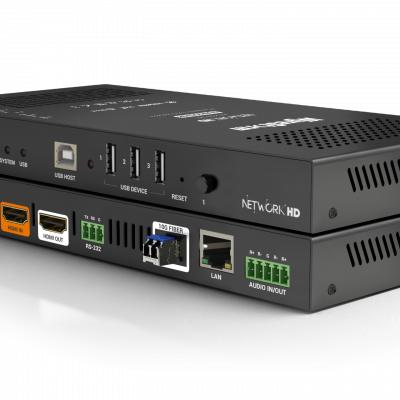

Wyrestorm NHD-600-TRXF

4K60Hz SDVoE Fiber Transceiver | 10GbE | Dolby Vision & HDR | Video Wall | Multiview | Ethernet Passthrough | USB 2.0

2 stuks beschikbaar

Nieuw!!

The NHD-600-TRXF is a SDVoE fiber transceiver capable of lossless, latency-free 4K60 over a 10Gb network. The TRXF allows you to transmit and receive A/V simultaneous through a single device or be programmed to act as a dedicated TX or RX. The SFP+ connector supports up to 300m (984ft), 10Gbps transmission distance for extremely long reach commercial applications. 3x High-Speed USB 2.0 ports allow extension for keyboard mouse applications and even compatibility with webcams, touchscreens, and media storage.

Technical Specifications
AUDIO & VIDEO
Inputs/Outputs
1x HDMI 2.0b Input
1x HDMI 2.0b Output
1x 5-pin Balanced Analog Audio
1x 10Gb/s SFP+:
– 10GBASE-SR: 300m using OM3 multi-mode
– 10GBASE-LR: 10km using OS1/OS2 single-mode
Video Encoding/Decoding
SDVoE Pixel Pipeline
Encoding/Decoding Data Rate
1080p@60Hz 8bit – 3.4Gbps
4K UHD@30Hz 4:4:4 8bit – 6.4Gbps
4K UHD@60Hz 4:4:4 8bit – 8.7Gbps (with light compression)
End to End Latency
Genlock Mode: Uncompressed = 30us, Compressed <120us
Fast Switch Mode: 1~2 video frames = min. between 16.7 – 33.4ms @ 60fps
Video Resolution (Max)
5120x2160p @30Hz 4:4:4
5120x1440p @30/45Hz 4:4:4
4096x2160p @ 60Hz 8bit 4:4:4 or RGB
3840x2160p @ 60Hz 12bit 4:2:2 Dolby Vision
3840x 2160p @ 60Hz 10bit 4:2:2 HDR10/HLG
1920x1080p @60Hz 12bit
Supported Standards
RGB | DCI | Rec. 709 | BT.2020
COMMUNICATION & CONTROL
HDMI
HDCP 2.2 | CEC
Ethernet
1x 1GbE LAN 8-pin RJ45
RS-232
1x 3-pin Phoenix Connector | 2 Way | Broadcast | Routed | API Programmable
IR
1x IR TX 3.5mm TS Mono Jack | API Programmable
1x IR RX 3.5mm TRS Stereo Jack | API Programmable
USB
3x USB 2.0 Type A
1x USB 2.0 Type B Host
USB Bandwidth: 480Mbps
POWER
Power Supply
12V 2A DC PSU
Max Power Consumption
Max: 24w | Average: 10w


Additional Features

• Capable of high-bitrate multichannel audio passthrough, including Dolby Atmos™ and DTS:X
• Powerful video scaling can match a connected display to the video source, leaving the original source content unaltered
• Video resolution, framerate and color space conversion using SMPTE/ITU recommended methods
• Genlock scaler mode for zero end-to-end latency
• Supports seamless AV source switching via Fast Switch mode
• Balanced analog audio port can be configured as an input or output for a discrete audio stream or HDMI de-embedding
• Bidirectional IP to Infrared / RS-232 functionality via the API or 3rd-party drivers
• Auxiliary 1GbE channel for network connectivity of attached source devices
• Powerful matrix functionality includes routing control of all audio, video, RS-232 and IR signals
• Compatible with NHD-000-RACK4 for easy rack mounting
• Secure A/V transmissions using AES encryption methods

Preview streams not supported

Multimode Fibre or Single Mode Fibre can be used
