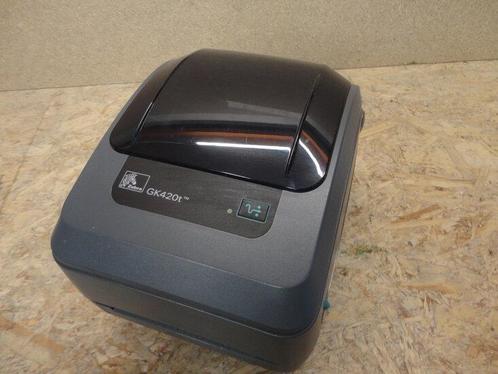

Zebra GK420T Thermal Transfer Barcode Label Printer - USB

€ 149,00
Verzenden
Verzenden voor € 7,50
861sinds 19 dec. '23, 10:48
Deel via
of

Kenmerken

ConditieGebruikt

Beschrijving

Zebra GK420T Thermisch Transfer Printer:


Thermisch Transfer & Thermisch Direct
Resolutie: 203Dpi
Toepassing: Barcodes - Labels - Sticker
Conditie: Occasion
Aansluiting: USB
Maximale Media Breedte: 10,8 cm

Inclusief:
Voedings Adapter
USB Kabel




Printer Specifications



Resolution 203 dpi (8 dots/mm)
MemoryStandard: 8 MB SDRAM (3 MB available to end user); 4 MB Flash (1.5 MB available to end user)
Print width 4.09" (104 mm)
Print length 39" (991 mm)
Print speed 5" (127 mm)/sec
Media sensors Reflective
Transmissive



ã



Media Characteristics



Maximum label and liner width 4.25" (108 mm)
Minimum label and liner width 0.75" (19 mm)
Maximum label and liner length 0.38" (9.7 mm) to 39" (991 mm)
Maximum roll diameter 5" (127 mm)
Core diameter 0.5" (12.7 mm), 1.0" (25.4 mm), 1.5" (37.1 mm)
Media thickness 0.003" (0.08 mm) to 0.0075" (0.20 mm)
Media typesblack bar, black mark, continuous, continuous receipt, die-cut, fanfold, gap, notched, perforated, receipt, roll-fed, tag, tag stock



ã



Ribbon Characteristics



Outside diameter 1.34" (34 mm)
Standard length 244' (74 m)
Ratio 1:1
Ribbon width



Recommended to be at least as wide as media



1.33" (33.8 mm) to 4.3" (110 mm)



ID Core 0.5" (12.7 mm)



ã



Operating Characteristics



Operating temperatureTT: Operating temperature 40° F (5° C) to 105° F (41° C) Thermal transfer
DT: Operating temperature 40° F (5° C) to 105° F (41° C) Direct thermal
Storage temperatures -40° F (-40° C) to 140° F (60° C)
Operating humidity 10-90% non-condensing
Storage humidity 5-95% non-condensing
Electrical Auto-detecable (PFC Compliant) 100-240 VAC, 50-60 Hz
Agency approvals



FCC Part 15



Subpart 15



VCCI



C-Tick



EN55022 Class-B



EN6100-3-2



EN6100-3-3



EN55024



CCC



CB Scheme IEC 60950: 1991 +A1 +A2 + A3 +A4



TUV NRTL



IRAM



NOM



AAMI



ã



Physical Characteristics



Width 7.6" (194 mm)
Height 7.5" (191 mm)
Depth 10" (254 mm)
Weight 4.6 lbs (2.1 kg)
Shipping weight 9.1 lbs (4.1 kg)
Orientation Center



ã



Related Product



Options



10/100 internal Ethernet connectivity



Dispenser - label peel and present with present sensor



Asian font sets



Communication and Interface Capabilities



Auto-sensing Serial RS-232 (DB-9)



USB V1.1, bi-directional



Centronics Parallel



10/100 internal Ethernet (replaces parallel port)



ã



Programming Languages



Core programming languages EPL2, ZPL I/ZPL II



ã



Bar Codes/Symbologies



Linear Codabar
Code 11
Code 128
Code 128 with subsets A/B/C
Code 39
Code 93
EAN-13
EAN-14
EAN-8
EAN-8 and EAN-13 with 2 or 5 digit extensions
German Post Code
Industrial 2-of-5
Interleaved 2-of-5
Japanese Postnet
Logmars
MSI
MSI-3
Plessey
Postnet
RSS (reduced space symbology)
Standard 2-of-5
UCC/EAN-128
UPC and EAN 2 or 5 digit extensions
UPC-A
UPC-A and UPC-E with 2 or 5 digit extensions
UPC-A and UPC-E with EAN 2 or 5 digit extensions
UPC-E
2-dimensional Aztec
Codablock
Code 49
Data Matrix
MacroPDF417
MaxiCode
MicroPDF417
PDF417
QR Code
RSS / GS1 DataBar family (12 barcodes)
Fonts and Graphics



16 resident expandable ZPL II bitmap fonts



One resident scalable ZPL font



Five resident expandable EPL2 bitmap fonts



Supports user-defined fonts and graphics - including customer logos
