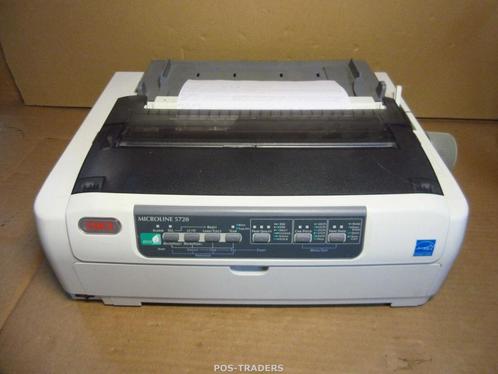

OKI Microline 5720 Dot Matrix A4 USB 6copy Naald Printer

24 STUKS BESCHIKBAAR - DIRECT UIT VOORRAAD LEVERBAAR

Kan verstuurd (15 euro) of afgehaald worden (na afspraak)

Printing Method

Serial Impact Dot Matrix Method

Print Head

Dual 9 Pin

Dot Wire Diameter

0.3 mm

Print Direction

Bidirectional/Unidirectional printing, Short line-seeking printing

Graphic Resolution

Max. 240(H) x 216(V) dpi

Print Speed

Super Speed Draft : 700 cps, High Speed Draft : 600 cps, Draft : 450 cps, Near Letter Quality : 113 cps

Line Feed Pitch

4.23mm (1/6 "), 3.18mm (1/8 "), n x 0.35mm(n/72 ") (n=1-85), n x 0.18mm(n/144 ") (n=0-255), n x 0.12mm(n/216 ") (n=0-255)

Feed Speed

5.25 inches per second

Feed Rate

4.23mm(1/6”) line feed: Approx. 47 milliseconds

Paper Route

Tractor feeder (Front), Tractor feeder (Rear), Tractor feeder (Bottom), Manual (Top), Manual (Front), Roll paper stand, Cut sheet feeder (Rear)

Character Pitch

Super Speed Draft : 12.0 cpi
High Speed Draft : 10.0 cpi, 12.0 cpi, 15.0 cpi, 17.1 cpi, 20.0 cpi
Draft : 10.0 cpi, 12.0 cpi, 15.0 cpi, 17.1 cpi, 20.0 cpi
Near Letter Quality : 10.0 cpi, 12.0 cpi, 15.0 cpi, 17.1 cpi, 20.0 cpi, Propotional

Printing Width

80 characters/line at ANK 10 cpi

Interface

IEEE1284-1994 Bi-directional Parallel, USB 2.0 (Full Speed), (Optional) 100BASE-TX/10BASE-T, (Optional) RS-232C (25pin)

Emulation

OKI Microline, ESC/P emulation, IBM ProPrinter emulation



Receive Buffer

Max. 128KB

Resident Font

High Speed Draft, Draft, NLQ Courier, NLQ Gothic, OCR-B, Scalable Courier, Scalable Gothic

Font Style

Bold, Double Width, Double Height, Emphasized, Italics, Over score, Underline

1-D Barcode

UPC-A, UPC-E, EAN8, EAN13, Code39, Interleaved 2 of 5 (ITF), Code128, POSTNET, Codabar (NW-7), Industrial 2 of 5, Matrix 2 of 5

Paper Type

Continuous paper, Continuous copying paper, Cut sheet, Card, Envelope, Label

Paper Weight Adjustment

Manual

Paper Size

Continuous paper: Width 76.2-254.0mm x Length 76.2-558.8mm
Single part paper: Width 99.1-256.5mm x Length 99.1-363.0mm
Multi part paper: Width 76.2-254.0mm x Length 76.2-558.8mm

Paper Weight

Continuous paper : 45 - 90 gsm
Single part paper : 45 - 90 gsm
Multi part paper : 35 - 40 gsm

Copy Capability

Normal print mode: original + 5sheets(Total Thickness < 0.36mm)
High copy print mode: original + 6 sheets(Total Thickness <0.36mm)

Dimensions(WxDxH)

414 x 320 x 159 mm
