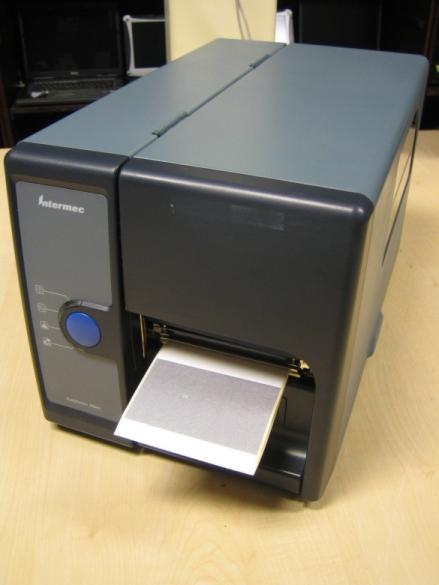

Intermec PD41 Thermische Barcode Label Printer USB NETWERK

Getest en 100% werkend!

• *Interfaces: USB, RJ45 LAN Network, Serial DB9 & Parallel

Standaard specificaties:

Application
Direct Thermal and Thermal Transfer label, ticket and tag printing.

Physical Characteristics
Length: 453 mm (17.8 in)
Height: 273 mm (10.8 in)
Width: 270 mm (10.6 in)
Weight: 13 kg (28.7 lbs)

Print Specifications
Max. Width:104 mm (4.09 in) at 203 dpi
105.7 mm (4.16 in) at 300 dpi
Max. Length: 1520 mm (59.8 in) at 203 dpi
1028 mm (40.5 in) at 300 dpi

Print Speed
50-100 mm/s (2-4 ips) at 300 dpi

Print Direction
Prints smooth text, any size barcodes and graphics in all four orthogonal directions.

Print Resolution
• 12 dots/mm (300 dpi)

Label/Ticket/Tag
Width: 25-118 mm (1.00-4.64 in) 25-114 mm (1.00-4.48 in with cutter)
Thickness: 60-250 μm (2.3 to 9.8 mil)
Style: Roll-fed, die-cut, continuous or fanfold labels, tags or tickets
Label Roll max. diameter: 213 mm (8.35 in) 190 mm (7.5 in) with internal rewinder (full roll of liner/backing paper)
Label Roll Core: 37.5 or 75 mm (1.5 or 3 in)
Media Type: Direct Thermal or Thermal
Transfer media: Roll-fed, Fanfold and Continuous.

Ribbon
Max. Ribbon Length: 450 m (18 000 in)
Ribbon Roll Core Diam: 25,4 mm (1.0 in)
Ribbon Width: 30-110 mm (1.18-4.33 in)
Winding Direction: Ink-in or Ink-out

Sensors
• Adjustable Gap, Blackmark and Punched Hole sensors
• Out-of-Media sensor
• Out-of-Ribbon sensor
• Label Taken sensor

Interfaces
• Serial RS-232
• USB v. 2.0 full speed
• Parallel or EasyLAN Ethernet (depending on configuration)
• Parallel IEEE 1284 or
• EasyLAN integrated Ethernet: RJ-45
connector for 10BaseT or 100baseTX
Supported Protocols: TCP/IP-suite (TCP,UDP, ICMP, IGMP, etc.), LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMP, SMTP, SNMP-MIB II supported (over UDP/IP), private enterprise MIB included
