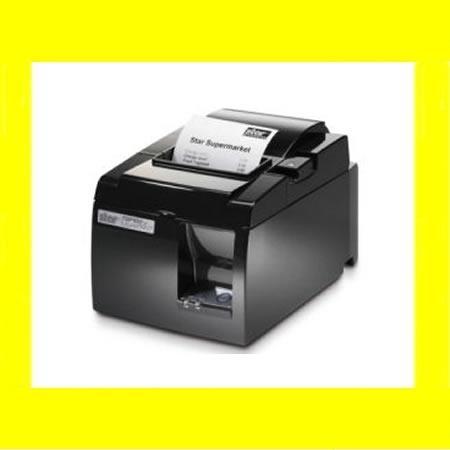

SPECIFICATIONS - TSP100 futurePRNT Series
Printer Method
Direct Line Thermal
Print Speed
22 RPM (Receipts Per Minute)
Printer Case Color
Putty or Gray
Models Available
Tear Bar or Auto Cutter
Print Resolution
203 dpi (8 dots per mm)
No. of Columns
Star Mode = 40, ESC/POSTM Font A 42 Font B 64
Font Size
12 x 24
Character Set
ANK 95, 32 Int 128 Graphic plus Chinese, Japanese, Korean, Taiwanese
International Code Pages
Star Mode=40. ESC/POSTM= 10 + 1 blank allowing an additional character page to be added
Bar Codes
Extended barcode functionality - 9 versions / PDF 417, Maxicode Option
Line Spacing
3 mm or 4 mm or programmable
Paper Specifications
Width
Thickness
Roll Diameter
Easy-Load
Paper Out Sensor
Paper Low Sensor
Maximum Print Width
80mm standard, 58mm with paper guide
0.065 ~ 0.085 mm
Up to 83 mm
"Drop-In & Print"
Standard
N/A
80mm paper = 72mm, 58mm paper = 50.8mm
Top Margin
11 mm minimum default
Auto Cutter
Guillotine (Partial Cut Only)
Cover Open Sensor
Yes
Logo Store Capacity
Unlimited
Multiple Copy Support
Supported through futurePRNT Software
Journal Capability
Supported through futurePRNT Software
Label Support
N/A
Power Supply
Internal with power cable supplied (not available on the TSP100PUSB; requires optional PS60A external power supply only when using standard Full Speed 2.0 USB cable)
Drivers Available
Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, CE, POSReady 2009, OPOSTM, JavaPOSTM, USB Vendor Class, LinuxTM, Mac OS X, StarIO SDK with support for Android and Blackberry
Digitally Signed (WHQL)
Yes
Swappable Interfaces
N/A
