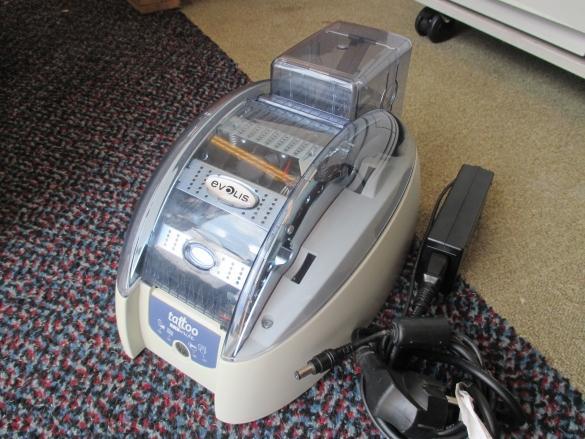

Evolis Tattoo RW Rewrite kaart printer

Inclusief: Voeding, CD met drivers, handleidingen en een Demo van Cardpresso kaart software.

Werkt op Windows XP, Vista en 7.

USB en Parallel aansluiting.

General specifications

• 300 dpi print head for premium quality printing (11.8 dots/mm)
• USB & Ethernet connections
• 16 MB RAM
• Detachable feeder with a capacity of 100 cards (0.76 mm or 30 mil)
• Detachable output hopper with a capacity of 15 cards (0.76 mm or 30 mil)
• 1-Button and 4-LED control panel
• Brilliant Blue cover

Print Mode

• Direct thermal printing and erasing on rewritable material
• Maximum print area: 48 mm x 76 mm (1.89" x 2.99")

Erasing & Printing speed

• 8 seconds (manual)
• 12 seconds (card feeder)
• 3-Track ISO magnetic encoding: 4 seconds per card

Card feeding

• Manual card insertion and delivery
• Card-feeder insertion and delivery to removable hopper
• Automated Mode: selects a card from the feeder if no card is inserted manually

Card format

• CR-80 – ISO 7810 (53.98 mm x 85.60 mm – 2.125" x 3.37")

Card type: Rewritable thermochromic material

• Mitsubishi Black & Blue
• Ricoh upon request
• Other material upon request and validation
• Card thickness: from 0.5 mm to 0.76 mm (20 to 30 mil)

​
Resident fonts
Arial 100, Arial bold 100
Barcode – Code 39, 2/5 interleaved

Supported platforms

• Windows 7 (32 & 64 bits), XP and Vista (32 & 64 bits)
• Windows 2003 Server and Windows 2000 drivers available upon request - depending on system configuration

Interface

• USB & Ethernet (USB cable supplied)

Printer form factor

• Without output hopper: 166 mm (6.54") (H) x 290 mm (11.42") (L) x 187 mm (7.36") (W)
• With output hopper: 166 mm (6.54") (H) x 368 mm (14.49") (L) x 187 mm (7.36") (W)

Printer weight

• 2.4 Kg (5.3 lbs)

Power supply

• Power supply: 100/240 V AC, 1.8 A, 50-60 Hz
• Printer: 24 V DC, 3 A
