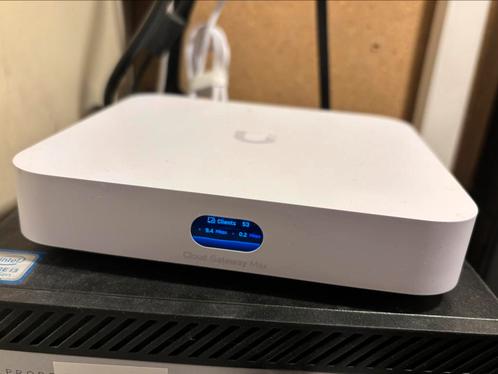

Ubiquiti Unifi Cloud Gateway Max (NS)

Ubiquiti Unifi Cloud Gateway Max (NS = No Storage)

Aanschafdatum:
23-08-2024
Rechtstreeks gekocht via de Ubiquiti webstore.
Dus 2 jaar garantie, waarvan nu nog ruim 1 jaar.

Aankoopbon is aanwezig en wordt meegeleverd i.v.m. de garantie.

Tevens is de orginele verpakking ook nog aanwezig en zal het product hierin worden geleverd.

Dimensions:
141.8 x 127.6 x 30 mm
(5.6 x 5 x 1.2")
UniFi Application Suite
Network
✓
Protect
✓
Access
✓
Talk
✓
Connect
✓
Managed UniFi Devices
30+
Managed Cameras
(15) HD
(8) 2K
(5) 4K
Simultaneous Users Connected
300+
Max. WAN Port Count
4
Default WAN Ports
(1) 2.5 GbE RJ45
Port Layout
2.5 GbE RJ45
5
(2.5G/1G/100M/10M)
IDS/IPS Throughput
2.3 Gbps
Form Factor
Compact desktop

Security:
Stateful Firewall
✓
Application-Aware Layer 7 Firewall
✓
DPI & Traffic Identification
✓
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
✓
Content Filtering
✓
Intrusion Prevention (IPS/IDS)
✓
Ad Blocking
✓
IDS/IPS Signatures
55,000+
with CyberSecure
VLAN/Subnet-based Traffic Segmentation
✓

VPN & SD-WAN:
License-Free SD-WAN
✓
Site-to-Site VPN
Site Magic
✓
IPsec
✓
OpenVPN
✓
VPN Server
Identity Endpoint One-Click VPN
✓
Teleport Zero-Configuration VPN
✓
WireGuard
✓
OpenVPN
✓
L2TP
✓
VPN Client
OpenVPN
✓
WireGuard
✓

Networking:
Multi-WAN Load Balancing
✓
Dynamic Routing
OSPF
✓
Advanced QoS
✓
Multicast DNS (mDNS)
✓
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
✓
Integrated RADIUS Server
✓
RADIUS over TLS (RadSec)
✓
Additional Internet Failover with UniFi LTE Backup
✓
Internet Quality and Outage Reporting
✓
MAC Address Table Size
2,000
Policy-based WAN and VPN Routing
✓
Customizable DHCP Server
✓
IPv6 ISP Support
✓
IGMP Proxy
✓

Hardware:
NVR Storage
Selectable NVMe SSD up to 2 TB

Max. Power Consumption
16.1W

Power Method
USB type C (5V DC/5A)

Power Supply
USB type C (5V DC/5A) (Adapter included)

Supported Voltage Range
100—240V AC

Processor
Quad-core ARM® Cortex®-A53 at 1.5 GHz

System Memory
3 GB

Weight
Without SSD: 460 g (1 lb)
With SSD: 519 g (1.1 lb)

Enclosure Material
Polycarbonate

LCM Display
0.96" status display

Management
Ethernet
Bluetooth
LEDs

Ethernet
✓

Button
(1) Factory-reset

ESD/EMP Protection
Air: ± 8kV, contact: ± 4kV

Ambient Operating Temperature
-10 to 40° C (14 to 104° F)

Ambient Operating Humidity
5 to 95% noncondensing

NDAA Compliant
✓

Certifications
CE, FCC, IC, Anatel, SRRC

Software
Application Requirements
Mobile App
UniFi iOS™ and Android™: Version 10.17.2 and later
