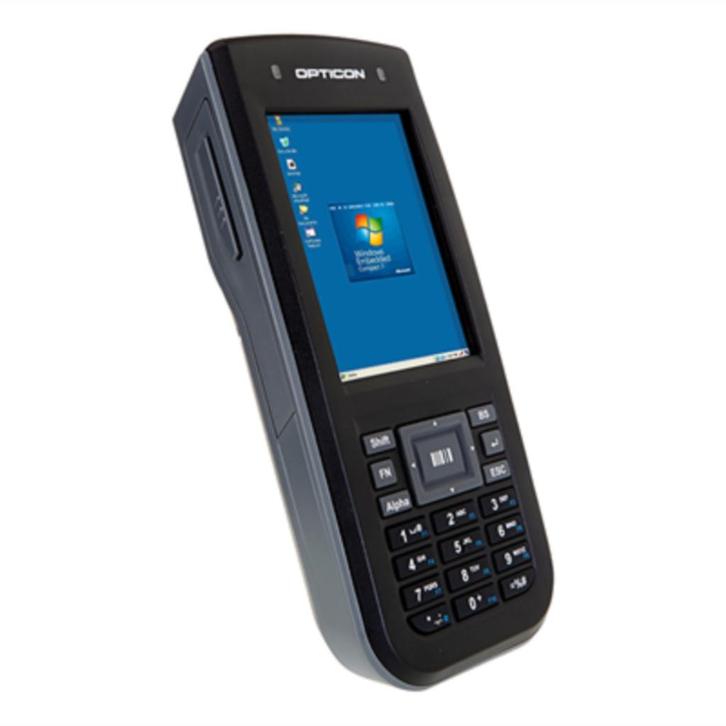

Opticon H-32 WEC 7 1D laser scanner WiFi Bluetooth

The Opticon H32, a power-packed Windows Embedded Compact 7 device from Opticon, offers a lightweight, compact design that is ideal for today’s mobile workers in field sales and service, inventory control, asset management, security and inspections and merchandising.

Product Features

• Windows Embedded Compact 7
• 2.8” QVGA touch screen
• 1D laser scanner (100 scans/sec)
• Bluetooth V2.1 + EDR
• WiFi, IEEE 802.11 a/b/g/n
• USB, OTG
• IP 54
• 1.5 meter drop proof

Specifications

• Opticon H-32 1D Alphanumeric keypad
• Article number: 13218 Opticon H-32 1D Alphanumeric keypad

Operation

• CPU: AM3354 ARM Cortex A8, 800 MHz
• O/S: Windows Embedded Compact 7
• Software: Wordpad, Internet Explorer, Active Sync, Opticon scanner application,
• Upgradeable via integrated microSD card slot
• RTC: Supports year, month, day, hour, minute, second (leap year supported)

Memory

• NAND flash: 256 MB
• RAM: 256 MB mobile DDR2
• Expansion: User accessible MicroSDHC

Display

• Type: transflective QVGA with touch panel, with white LED backlight
• SiZE: 2.8”, 240 x 320 pixels
• Mode: Portrait

Operating indicators

• Visual: 2 LEds (red/green scanning indication & charging indicator)
• NON-Visual: Vibrate, Speaker

Operating keys

• Entry Options: 26 keys total, 12 key (alpha)numeric keypad, 4-way navigation keys, function key, backspace key, power key, Enter key, Alpha key, Escape key, Shift key, 3 scan keys

Communication

• USB: Micro USB OtG, ver. 2.0
• Bluetooth: Ver. 2.1 + EDR
• W-lAN: 802.11 a/b/g/n; WEP, WPA, WPA2; WEP, tKIP, AES; Static (40 and 128 bit), PSK (Pre-Shared), Dynamic; EAP, PEAP, lEAP; Cisco CCx version 4
• AUDIO: Speaker
• Extension: User accessible microSD I/O

Power

• Rechargeable Battery: lithium-Ion 3.7V 1800mAh
• Backup Battery: fixed rechargeable lithium-Ion 15mAh
• Charging Method: through Micro USB cable (enclosed item), power supply (sold separately) or cradles (sold separately)

Barcode Scanner Optics

• Light Source: 650 nm visible laser diode
• Scan Rate: 100 scans/sec
• Reading Pitch Angle: -35 to 0˚, 0 to +35˚
• Reading Skew Angle: -50˚ to -8˚, +8˚ to +50˚
• Reading Tilt Angle: -20˚ to 0˚, 0˚ to +20˚
• Curvature: R>15 (EAN8),R>20 (EAN13)
• MiN. PCS Value: 0.45
• Depth Of Field: At PCS 0.9, Code 39, 70 -650 mm / 2.76 – 25.59 in (1.00 mm / 39 mil), 50 – 420 mm / 1.97 – 16.54 in (0.5mm / 20 mil), 50 – 260 mm / 1.97 – 10.24 in (0.25 mm / 10 mil), 50 – 150 mm / 1.97 – 5.91 in (0.15 mm / 6 mil), 60 – 120 mm / 2.36 – 4.72 in (0.127 / 5 mil)

Supported Symbologies

• Barcode (1D): JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IAtA, ISBN, Industrial 2of5, Interleaved 2of5, Matrix 2of5, MSI/Plessey, telepen
• POSTAL CODE: Chinese Post, Korean Postal Authority code
• 2D CODE: Composite Codes, MicroPDF417, PDF417

Durability

• Temperature in Operation: -10 to 50˚C / 14 to 122˚f
• Temperature in Storage: -20 to 60˚C / -4 to 140
• Humidity in Operation: 20% to 80% RH
• Humidity in Storage: 20% to 90% RH
• Drop test: 1.5 m / 5 ft drop onto concrete surface
• Protection Rate: IP 54

Physical

• Dimensions (W x H x D): 64 x 143 x 28 mm / 2.52 x 5.63 x 1.1 in
• Weight Body: Ca. 195 g / 6.9 oz (incl. battery)
• Case: Black

Regulatory & safety

• Product Compliance: CE, FCC, RoHS, IEC 60825-1 Class 2, FDA CDRH Class II

Inclusief opbergtasje !!
4 stuks beschikbaar
