Condition: Refurbished

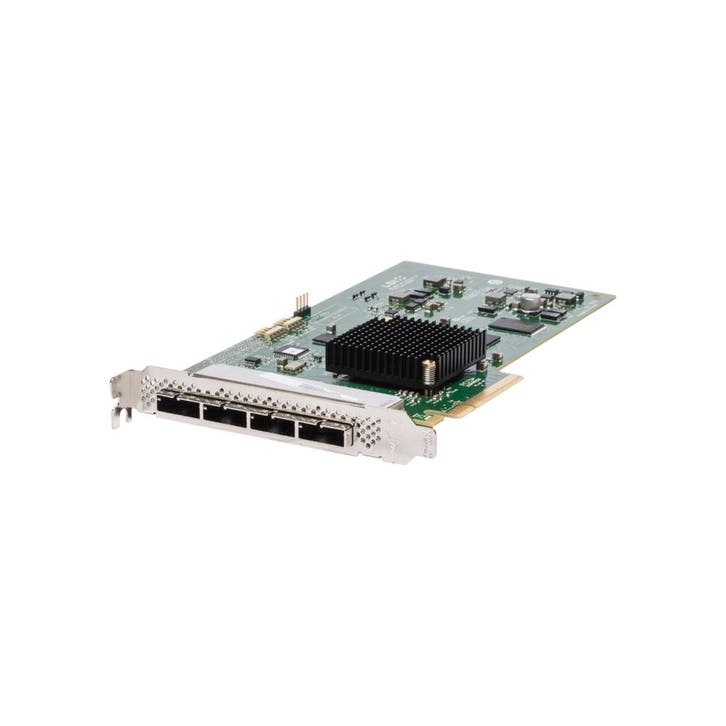

The LSI SAS9200-16E is an enterprise 16-port SAS/SATA Host Bus Adapter (HBA) designed to connect servers to external storage systems such as JBOD enclosures, disk shelves, and tape libraries. It uses a PCI Express 2.0 x8 interface and provides four external Mini-SAS (SFF-8088) connectors, each carrying four SAS lanes, enabling up to 16 external device connections. The controller operates at 6 Gb/s per port and supports both SAS and SATA drives, as well as SSDs and tape devices, making it flexible for mixed storage environments.

Features:

• Key features of the LSI SAS9200-16E (16-Port SAS 6Gb/s HBA) are: 16 external SAS ports via 4 × Mini-SAS (SFF-8088) connectors PCI Express 2.0 x8 host interface for high bandwidth server connectivity
• 6Gb/s per port data transfer rate (SAS 2.0 / SATA 2.0 compatible)
• Supports up to 512 SAS or SATA devices using expanders Works with SAS HDDs, SATA HDDs, SSDs, and tape drives
• HBA (non-RAID) operation, ideal for ZFS, Linux MDRAID, and software-defined storage Based on LSI Fusion-MPT architecture for high I/O performance and efficiency

Whats in the Box?

• SAS9200-16E

Specifications:

General Information

• PCI Card Form Factor: Plug-in Card

Inputs/Outputs

• Number of Ports: 4
• Expansion Card Computer Interface: PCIe
• I/O Expansion Card ports: Mini-SAS
