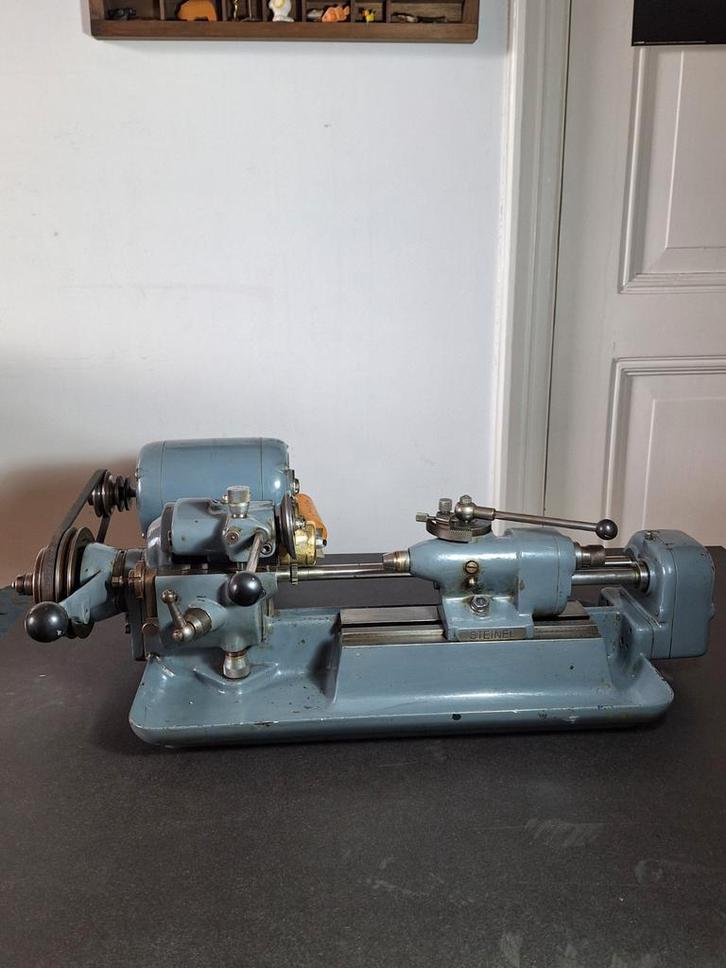

Steinel Pivot Pollishing machine SR2
In a good and working condition.
Beautiful machine of very high quality.
In very neat condition.
Pick-up only in The Hague or Otterlo, Netherlands.
The polishing disc is in a excellent condition!
Included is the L7 Collet with ø1.5MM

The rolling tool, which is lowered to the opposite side of the rotating part by means of a carefully placed micrometer. Precise adjustment of the length of the rolling surface and with this associated sizing of the shaft transitions is achieved by using the exact longitudinal stop of the tailstock.
The clamping of the parts takes place by the collet in the spindle of the tailstock, which is equipped with a quick-action clamping device.
During the movement, the flat washer is cleaned around the perimeter with a felt impregnated with oil.

Burnishing (rolling) wheel
burnishing wheel Ø 62 mm
revolution of burnishing wheel 560/530-1050-2100 rev/min
revolution of pivot 790/750-1500-3000 rev/min
Spindel seat for collet shanks L-7

Dimensions of pivot:
Ø 0-5 mm
length 0-18 mm
max. length of pinion 140 mm
Weights and dimensions:
length 679 mm
width 220 mm
height 200 mm
weight approx. 45 kg
