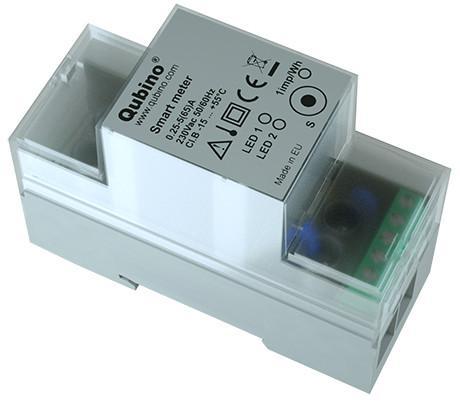

Qubino Smart Meter

Qubino Zwave smart meter

Verbruiksmeting, zichtbaar in je control station (Fibaro HCL3, HC2, Domoticz, Homey, etc).

De perfecte Z-Wave Smart Energy Meter (1 fase).
Het meet het energieverbruik van je netwerk.
Rapporteert in W en kWh, V, A, var, kWh import, kWh export, kVAh en kvarh.


Handleiding

Main terminals (LI, NI, Lo, No)   Contacts capacity: 1.5 ... 16 (25) mm2 Connection screws: M5 Max torque: 3.5 Nm (PZ2) Optional terminals (1,2,4,5)   Contact capacity: 0.05 ... 1 (2.5) mm2 Screws: M3 Max torque: 0.6 Nm Measuring input:   Type (connection): single phase (1b) Reference current (Iref): 5 A Maximum current (Imax): 65 A Minimum current (Imin): 0.25 A Starting current: 20 mA Voltage (Un): 230 V (±20%) Power consumption at Un: < 2 W Nominal frequency (fn): 50 and 60 Hz Accuracy:   Active energy and power:   Standard EN 62053-21: class 1 Standard EN 50470-3: class B Reactive energy:   Standard EN 62053-23: class 2 Optical communication:   Type: IR - used to control BICOM432-40-WM1 Input (1):   Rated voltage: 230 V (± 20%) Input resistance: 450 kOhm Safety:   Indoor Meter: yes Degree of pollution: 2 Protection class: II AC voltage test: 4 kV Installation Category: 300 Vrms cat. III Standard: EN 50470 Ambient conditions and EMC:   According standards for indoor active energy Meters.   Temperature and climatic condition according to EN 62052 11   Ambient conditions and Safety:   According standards for indoor active energy Meters.   Temperature and climatic condition according to EN 62052 11   Dust/water protection: IP20 Operating temperature: -15 ... 55°C Storage temperature: -40 ... 70°C Enclosure material: Self-extinguish
complying UL94 V Indoor Meter: yes Degree of pollution: 2 AC voltage test: 4 kV Distance: up to 30 m indoors (depending on building materials) Weight (with packaging): 150g (170g) Frequency range: 868.4 MHz, Z-Wave Installation: DIN rail 35mm Dimensions (W x H x D): 36 x 90 x 64mm Package dimensions (W x H x D): 40 x 95 x 80mm Colour: RAL 7035
