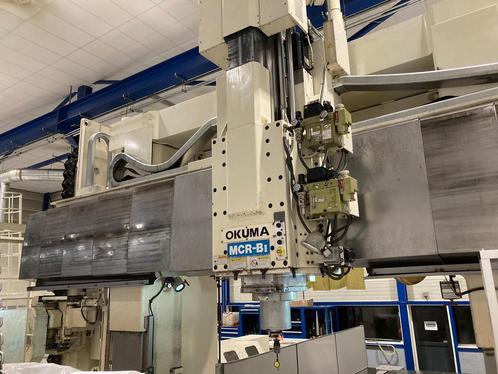

Okuma MCRB II

Aangeboden
Okuma MCRBII
Bouwjaar 2001
Exacte type : 30/65



Twin Column Vertical Machining Centre

Manufacturer Okuma
Model MCR-BII EA HP30-65
Year 2001
Control OSP 100M

Table clamping size 2500 x 6300 mm
Table loading capacity 43000 kg
Travels X 6500mm
Y 3700 mm
Z 800 mm
W 1300 mm
Clearance between the columns 3050 mm
Vertical clearance spindle to table 0 – 1850 mm
Ram size 350 x 350 mm
Feedrates X,Y,Z 1 – 10000 mm/min
Rapids up to X,Y 15000 mm/min.
Z 10000 mm/min
Crossrail positioning speed W 1000 mm/min
Spindle motor rating 30/22 KW
Spindle speeds max. 6000 rpm
Number of gear steps 2
Spindle taper BT 50
Tool magazine positions 180 station auto tool changer
Tool taper MAS BT 50
Tool diameter with/without adjacent tools max. 136 / 230 mm
Tool length max. 400 mm
Tool weight max. 25 kg
Machine weight approx. 61000 kg
Floor space requirements L x W, approx. 15800 x 7855 mm
Machine height approx. 6650 mm

Machine is snel beschikbaar
Prijs op aanvraag
