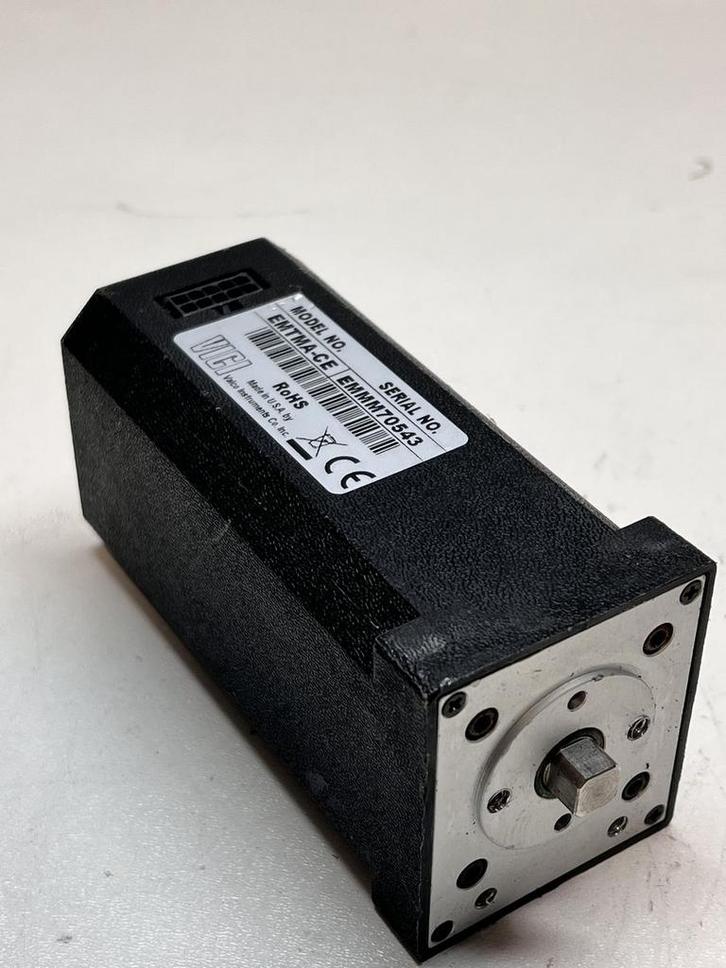

VICI Valco EMTMA-CE Multiposition Microelectric Pneumatische actuatoren Sourced from working
VICI EMTMA-CE multiposition microelectric valve actuator
Specification Detail Model EMTMA-CE Product Type Microelectric multiposition valve actuator (high torque version) Manufacturer Valco Instruments Co. / VICI AG Power Supply Voltage 24-28 VDC (preferred) - input via external power supply (universal 110-240 VAC to 24 VDC) Power Consumption ~48 W (24 VDC) - typical based on product reseller specification Average Operating Current ~2.5 A DC (typical during movement) Standby Current < 100 mA DC Torque Characteristic High torque (EMT series) - designed for valves requiring higher actuation torque (exact numeric torque not published in TN415QS) Speed Characteristic Lower speed relative to high-speed EMH (dependent on number of positions - see Note below) Control Interface STEP and HOME functions via digital input contacts or TTL level; Manual controller (optional) Remote Control Interface Optional remote control via contact closure or TTL as specified; optional RS-232 (via 3-pin connector) Connector Types . Motor driver (10-pin) . Manual/remote digital I/O (26-pin) . RS-232 (3-pin) Position Display On manual controller (LED position indication) when used Mounting Bracket Optional mounting hardware required Operating Temperature Standard environment (not specified in TN415QS) - typical for microelectric actuators Weight ~0.61 kg (~1.35 lb) CE Certification CE-marked version (EMTMA-CE) - complies with applicable CE directives¹ Typical Applications Actuation of multiposition selector valves in fluid control systems (e.g., chromatography valves)
Voor meer info over dit product, product-opties, of eventueel direct bestellen, klik op link:
VICI EMTMA-CE multiposition microelectric valve actuator
Specification Detail Model EMTMA-CE Product Type Microelectric multiposition valve actuator (high torque version) Manufacturer Valco Instruments Co. / VICI AG Power Supply Voltage 24-28 VDC (preferred) - input via external power supply (universal 110-240 VAC to 24 VDC) Power Consumption ~48 W (24 VDC) - typical based on product reseller specification Average Operating Current ~2.5 A DC (typical during movement) Standby Current < 100 mA DC Torque Characteristic High torque (EMT series) - designed for valves requiring higher actuation torque (exact numeric torque not published in TN415QS) Speed Characteristic Lower speed relative to high-speed EMH (dependent on number of positions - see Note below) Control Interface STEP and HOME functions via digital input contacts or TTL level; Manual controller (optional) Remote Control Interface Optional remote control via contact closure or TTL as specified; optional RS-232 (via 3-pin connector) Connector Types . Motor driver (10-pin) . Manual/remote digital I/O (26-pin) . RS-232 (3-pin) Position Display On manual controller (LED position indication) when used Mounting Bracket Optional mounting hardware required Operating Temperature Standard environment (not specified in TN415QS) - typical for microelectric actuators Weight ~0.61 kg (~1.35 lb) CE Certification CE-marked version (EMTMA-CE) - complies with applicable CE directives¹ Typical Applications Actuation of multiposition selector valves in fluid control systems (e.g., chromatography valves)
Voor meer info over dit product, product-opties, of eventueel direct bestellen, klik op link:
...
...
...
...
...
...
...
...
...
...
...
...
