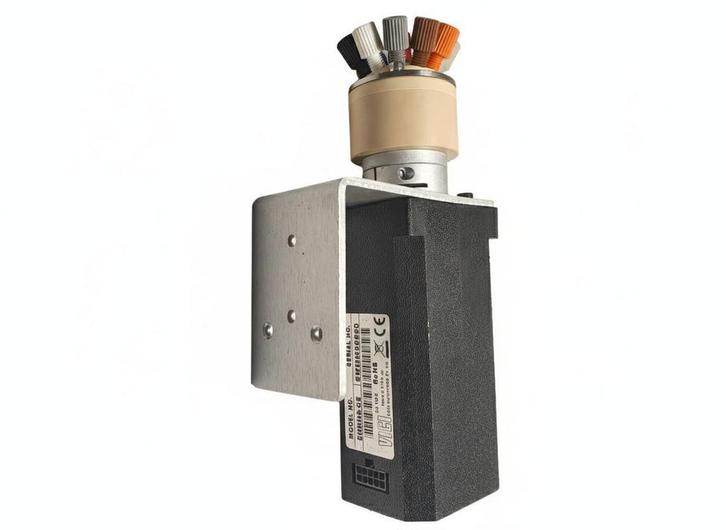

VICI Valco EMHMA-CE / CHIMINERT Multiposition Microelectric Pneumatische actuatoren Gebruikt
De VICI Valco EMHMA-CE:
Model: EMHMA-CE
Category Parameter Type Micro-electric actuator (motor + precision gearbox) Compatible Valves VICI Cheminert® multiport valves Mechanical / Motion Stepper motor coupled with precision reduction gearbox for high torque and positional stability
Smooth, incremental rotation for reliable indexing of multiport valve positions
Direct mounting onto valve body with appropriate hardware Electrical Requirements Power Supply: 24 V DC (via included or external supply)
Control Interface: Step/Direction or integrated controller (system dependent)
Designed for low-voltage control systems in analytical instruments Function Automated control of valve rotor position
Enables software- or instrument-controlled port switchingIdeal for analytical automation systems requiring multiport flow routing Application Automated multi-stream selection, analytical sampling, instrument-controlled flow distribution
Model: C25-6180D
Category Parameter Type Replacement valve body for 10-position selector valve Port Connections 1/8? tube connections via 1/4-28 flangeless fittings Maximum Fluid Pressure 250 psi (~17 bar) Maximum Operating Temperature 75 °C (167 °F) Port Bore ~1.50 mm (0.060?) internal diameter Rotor Material Valcon E2 (standard low-pressure formulation) Stator Material PPS (polyphenylene sulfide) polymer Function Multiport selector valve directing fluid/gas between inlet and multiple outlets or dead-end positions Application Analytical and low-pressure fluid handling (e.g., sampling, stream selection) Maintenance Rotor and stators replaceable without removing valve body from system Automation Compatibility Compatible with EMHMA-CE micro-electric actuator when coupled with Cheminert C25 series valves (e.g., C25-6180D) for programmable, reliable rotor positioning Use Case Automated multi-stream selection, analytical sampling, automatic sample routing, flow distribution
Voor meer info over dit product, product-opties, of eventueel direct bestellen, klik op link:
De VICI Valco EMHMA-CE:
Model: EMHMA-CE
Category Parameter Type Micro-electric actuator (motor + precision gearbox) Compatible Valves VICI Cheminert® multiport valves Mechanical / Motion Stepper motor coupled with precision reduction gearbox for high torque and positional stability
Smooth, incremental rotation for reliable indexing of multiport valve positions
Direct mounting onto valve body with appropriate hardware Electrical Requirements Power Supply: 24 V DC (via included or external supply)
Control Interface: Step/Direction or integrated controller (system dependent)
Designed for low-voltage control systems in analytical instruments Function Automated control of valve rotor position
Enables software- or instrument-controlled port switchingIdeal for analytical automation systems requiring multiport flow routing Application Automated multi-stream selection, analytical sampling, instrument-controlled flow distribution
Model: C25-6180D
Category Parameter Type Replacement valve body for 10-position selector valve Port Connections 1/8? tube connections via 1/4-28 flangeless fittings Maximum Fluid Pressure 250 psi (~17 bar) Maximum Operating Temperature 75 °C (167 °F) Port Bore ~1.50 mm (0.060?) internal diameter Rotor Material Valcon E2 (standard low-pressure formulation) Stator Material PPS (polyphenylene sulfide) polymer Function Multiport selector valve directing fluid/gas between inlet and multiple outlets or dead-end positions Application Analytical and low-pressure fluid handling (e.g., sampling, stream selection) Maintenance Rotor and stators replaceable without removing valve body from system Automation Compatibility Compatible with EMHMA-CE micro-electric actuator when coupled with Cheminert C25 series valves (e.g., C25-6180D) for programmable, reliable rotor positioning Use Case Automated multi-stream selection, analytical sampling, automatic sample routing, flow distribution
Voor meer info over dit product, product-opties, of eventueel direct bestellen, klik op link:
...
...
...
...
...
...
...
...
...
...
...
...
