Kenmerken
Conditie
Gebruikt
Beschrijving

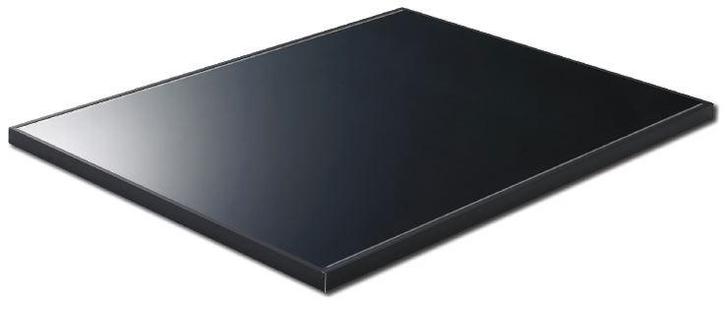

12 Kleine zonnepanelen 165W SolarFrontier SF165-S (126X98X3,5cm)
Piekvermogen 1,98kwp, ouderdom 12 jaar
Tegen elk aanemelijk bod
De Solar Frontier SF165-S biedt het hoogste omzettingsrendement van alle in massa geproduceerde dunnefilmmodules, tot wel 13,8 %. Alle modules voldoen aan de RoHS-richtlijn en zijn cadmium- en loodvrij.
Lichtabsorberend effect verhoogt de output na installatie. Goed gedrag bij weinig licht. Hoge schaduwtolerantie. Hoge temperatuurstabiliteit.
STC
Nominal power Pmax 165 W
Module efficiency % 13.4 %
Power tolerance +5 W/ 0 W
Open circuit voltage Voc 110.0 V
Short circuit current Isc 2.20 A
Voltage at nominal power Vmpp 85.5 V
Current at nominal power Impp 1.93 A
Standard Test Conditions (STC): 1,000 W/m2 irradiance, module temperature 25 °C, air mass 1.5. Isc and Voc are }10 % tolerance of STC rated values. Module output may rise due to the Light Soaking Effect. Subject to simulator measurement uncertainty (using best-in-class AAA solar simulator and applying Solar Frontier preconditioning requirements): +10 %/ -5 %.
NOTC
Nominal power Pmax 123 W
Open circuit voltage Voc 100.0 V
Short circuit current Isc 1.76 A
Voltage at nominal power Vmpp 80.2 V
Current at nominal power Impp 1.53 A
Nominal Operating Cell Temperature Conditions: Module operating temperature at 800
W/m2 irradiance, air temperature 20 °C, wind speed 1 m/s and open circuit condition.
Efficiency reduction of maximum power from an irradiance of 1,000 W/m2 to 200 W/m2 at 25 °C is typically 2.0 %. The standard deviation for the reduction of efficiency is 1.9 %.
NOCT 47 °C
Temperature coefficient of Isc α +0.01 %/K
Temperature coefficient of Voc β -0.30 %/K
Temperature coefficient of Pmax δ -0.31 %/K
I-V Curve
Power output guarantee: 90 % for 10 years, 80 % for 25 years
Dimensions (L x W x H) 1,257 x 977 x 35 mm
Weight 20 kg
Application class (IEC 61730) Class A
Fire rating (IEC 61730) Class C
Safety class (IEC 61140) II
Snow/wind load* 2,400 Pa (IEC 61646) / 1,600 Pa design load (UL 1703)
Cell type CIS glass substrate (cadmium free)
Front cover Clear tempered glass, 3.2 mm
Encapsulant EVA
Back sheet Weatherproof plastic film (color: black & silver)
Frame Anodized aluminum alloy (color: black)
Edge sealant Butyl rubber
Junction box Protection rating: IP67 (with bypass diode)
Adhesive Silicone
Piekvermogen 1,98kwp, ouderdom 12 jaar
Tegen elk aanemelijk bod
De Solar Frontier SF165-S biedt het hoogste omzettingsrendement van alle in massa geproduceerde dunnefilmmodules, tot wel 13,8 %. Alle modules voldoen aan de RoHS-richtlijn en zijn cadmium- en loodvrij.
Lichtabsorberend effect verhoogt de output na installatie. Goed gedrag bij weinig licht. Hoge schaduwtolerantie. Hoge temperatuurstabiliteit.
STC
Nominal power Pmax 165 W
Module efficiency % 13.4 %
Power tolerance +5 W/ 0 W
Open circuit voltage Voc 110.0 V
Short circuit current Isc 2.20 A
Voltage at nominal power Vmpp 85.5 V
Current at nominal power Impp 1.93 A
Standard Test Conditions (STC): 1,000 W/m2 irradiance, module temperature 25 °C, air mass 1.5. Isc and Voc are }10 % tolerance of STC rated values. Module output may rise due to the Light Soaking Effect. Subject to simulator measurement uncertainty (using best-in-class AAA solar simulator and applying Solar Frontier preconditioning requirements): +10 %/ -5 %.
NOTC
Nominal power Pmax 123 W
Open circuit voltage Voc 100.0 V
Short circuit current Isc 1.76 A
Voltage at nominal power Vmpp 80.2 V
Current at nominal power Impp 1.53 A
Nominal Operating Cell Temperature Conditions: Module operating temperature at 800
W/m2 irradiance, air temperature 20 °C, wind speed 1 m/s and open circuit condition.
Efficiency reduction of maximum power from an irradiance of 1,000 W/m2 to 200 W/m2 at 25 °C is typically 2.0 %. The standard deviation for the reduction of efficiency is 1.9 %.
NOCT 47 °C
Temperature coefficient of Isc α +0.01 %/K
Temperature coefficient of Voc β -0.30 %/K
Temperature coefficient of Pmax δ -0.31 %/K
I-V Curve
Power output guarantee: 90 % for 10 years, 80 % for 25 years
Dimensions (L x W x H) 1,257 x 977 x 35 mm
Weight 20 kg
Application class (IEC 61730) Class A
Fire rating (IEC 61730) Class C
Safety class (IEC 61140) II
Snow/wind load* 2,400 Pa (IEC 61646) / 1,600 Pa design load (UL 1703)
Cell type CIS glass substrate (cadmium free)
Front cover Clear tempered glass, 3.2 mm
Encapsulant EVA
Back sheet Weatherproof plastic film (color: black & silver)
Frame Anodized aluminum alloy (color: black)
Edge sealant Butyl rubber
Junction box Protection rating: IP67 (with bypass diode)
Adhesive Silicone
...
...
...
...
...
...
...
...
...
...
...
...
