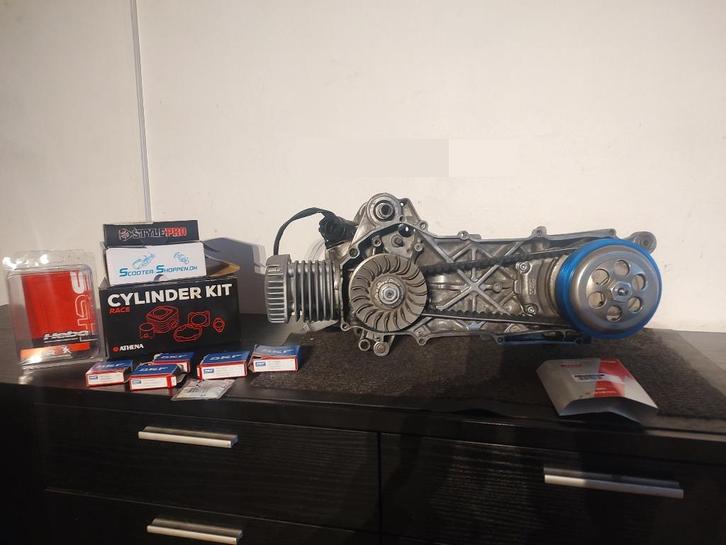

Minarelli 5BM engine 70cc Racing setup with Athena evo Malossi overage pully with Malossi multi variator and 17-40 Primary gearing and much more

New Parts:

• Athena 70cc EVO cylinder kit with cylinder head, exhaust port raised by 1.5mm and polished
• Malossi overrange pulley
• Malossi OR drive belt
• Athena oil seals
• WingBell clutch bell (Malossi copy)
• Jasil racing needle bearing for cylinder
• 2x SKF C4 crankshaft bearings
• Stylepro stator Euro 1
• 1x rear wheel bearing
• 2x SKF C3 bearings for engine mounts
• 1x SKF C3 bearing in the gear housing in the engine block
• Engine mount axle with 2 circlips
• STD 21mm studs
• Gaskets and miscellaneous: 2x homemade diaphragms, 1x gear housing gasket, 1x oil seal for rear wheel axle, bushing behind variator, kickstarter clutch star, 4x large cylinder nuts, and 1x nut for clutch bell
• 50% Hebo pressure spring
• 6x 4.7-gram LeoVince rollers
• Almost all nuts and bolts replaced with new
• New fully synthetic gear oil

Additional Components: This engine is equipped with a Stage6 racing clutch and racing gearing (17-40 primary), a Doppler racing crankshaft (10mm), Malossi Multivar variator, Malossi variator cooling fan, and Polini carbon reed valves, all in good condition.

This is a 70cc racing engine, so it does not have an electric starter or oil pump. The engine has been tested for leaks and is completely sealed. The Euro 1 stator has been tested and shows correct values. The engine also does not leak gear oil.The engine is a 5BM, i.e., a Yamaha Jog Space engine, but it can also be used on JOG FS, AS, Aprilia Sonic, and others.

Note:
The engine block is generally in good condition, with a few remarks: the engine number is worn off, one gear housing thread is loose (requiring a nut on the opposite side), part of the thread for one exhaust stud (M10) is broken, some kickstarter threads are slightly worn (requiring longer bolts and possibly a nut on the opposite side, with space available), and a center stand cannot be mounted on this engine. These issues are largely inconsequential if the provided instructions are followed. See the pictures.
