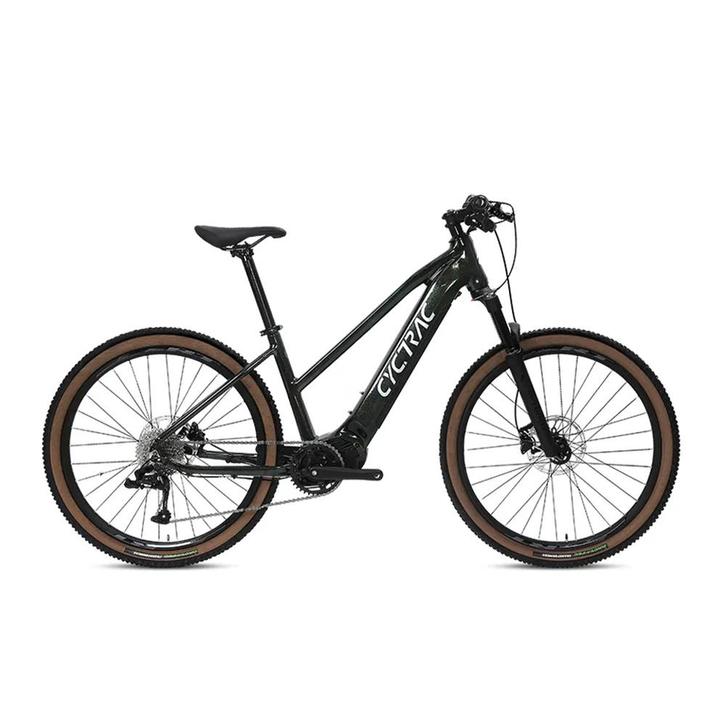

The CYCTRAC-EC1 is a high-performance electric mountain bike built for riders who require torque, stability, and off-road capability. Featuring a flat-welded AL6061 aluminum frame with internal cable routing and paired with a magnesium air suspension fork, the EC1 offers an unbeatable combination of durability and responsiveness. Equipped with a Shimano 12-speed drivetrain and a powerful Bafang mid-drive motor system, this bike is engineered to conquer climbs, trails, and long-range adventure rides.

Technical SpecificationsFrame & Structure

• Frame: CYCTRAC-EC1, AL6061 aluminum alloy, flat welds, smooth finish, internal cable routing, matte finish with UV laser decals

• Fork: Magnesium alloy, air suspension with remote lockout control

Dimensions & Weight

• Wheel Size: 27.5"

• Net Weight: 21.9 kg

• Max Load: 150 kg

Cockpit

• Handlebar: Alloy, matte finish, 31.8 × 720 mm

Groupset

• Shifters & Derailleur: Shimano Deore M6100, 12-speed rear drivetrain

Braking System

• Brakes: Shimano MT200 hydraulic disc brakes, 180 mm rotors (front and rear)

Wheelset & Tires

• Tires: Maxxis Crossmark, available in 29" or 27.5" × 2.25"

  • Choose wheel size at checkout

Motor & Battery Options

Choose between two power configurations to suit your riding style:

Option 1: Bafang M510

• Motor: 36V 250W mid-drive

• Torque: 95 N·m

• Battery: Samsung 21700, 720 Wh (36V 20A)

• Range: 140–160 km

• Charging Time: 8–9 hours (2A charger)

Option 2: Bafang M560

• Motor: 48V 500W mid-drive

• Torque: 130 N·m

• Battery: Samsung 21700, 720 Wh (48V 15A)

• Range: 130–150 km

• Charging Time: 8–9 hours (2A charger)


   Throttle-Ready: This M560 motor is throttle-compatible. If throttle is selected at checkout or requested in advance, we will ship the bike pre-configured with the dedicated throttle wiring and port.

  Where to Place It

  Insert this line right after the motor specification in the M560 configuration. For example:

  Motor:
  Bafang Mid Drive, M560 (48V500W)
  Throttle-Ready: This M560 motor is throttle-compatible. If throttle is selected at checkout or requested in advance, we will ship the bike pre-configured with the dedicated throttle wiring and port.

Electronics & Features

• Display: Bafang LCD digital unit, 5 power modes

• Waterproof Rating: IPX5

Why Choose the CYCTRAC-EC1?

Built for off-road power and long-distance exploration, the CYCTRAC-EC1 seamlessly combines strength, torque, and rider comfort in a fully integrated e-MTB platform.

Ideal for:

• Riders tackling technical terrain or long-distance climbs

• Those seeking torque-rich mid-drive performance

• Cyclists who trust the reliability of Shimano shifting

• All-weather rides with confident braking and waterproof protection

The CYCTRAC-EC1 is more than just an electric MTB — it’s a full-package adventure platform, ready for your next trail or challenge.
