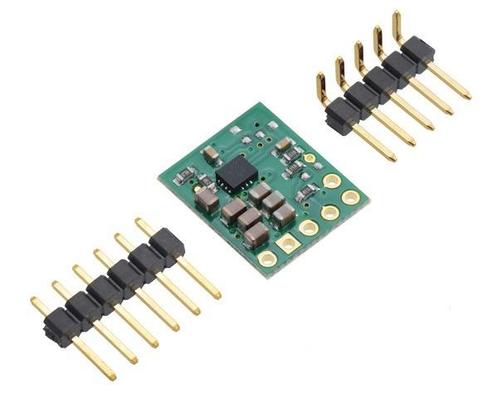

3.3V Step-Up/Step-Down Regulator S9V11F3S5C3 Pololu 2873

3.3V Step-Up/Step-Down Regulator S9V11F3S5C3 Pololu 2873

The S9V11F3S5C3 switching step-up/step-down regulator efficiently produces a fixed 3.3 V (default) or 5 V (selectable) output whether it is higher or lower than the input voltage, which can range from 3 V to 16 V. The regulator also has fixed 3.3 V low-voltage cutoff with hysteresis that can be used to prevent battery over-discharge. The compact (0.5″ × 0.6″) module can supply a typical output current of up to 1.5 A when the input voltage is close to the output voltage.

Features

• Input voltage: 3 V to 16 V
• Fixed 3.3 V output with +5/-3% accuracy (can be changed to 5 V using the SEL pin)
• Typical maximum continuous output current: 1.5 A (when input voltage is close to the output; the Typical efficiency and output current section below shows how the achievable continuous output current depends on the input and output voltages)
• Fixed 3 V low-voltage cutoff with hysteresis protects batteries from over-discharging (quiescent current is approximately 10 µA per volt on VIN when regulator is disabled)
• Power-good indicator can be used to tell when the regulator has reached and is maintaining its target output voltage
• Power-saving feature maintains high efficiency at low currents (quiescent current is less than 1 mA while enabled)
• Integrated over-temperature and short-circuit protection
• Small size: 0.5″ × 0.6″ × 0.17″ (12.7 × 15.3 × 4.3 mm)

Voor meer info klik hier Hier

Snelle levering meerdere op voorraad.

U kunt betalen via Paypal, Ideal en overschrijving

Kijk bij onze andere advertenties.

Of in de webshop voor onze complete assortiment



Verzending
De verzending wordt gedaan met PostNL voor een laag bedrag. Daarnaast kan je het natuurlijk ook af komen halen op het adres van VanAlleEnMeer.nl.



klik nu op onderstaande link voor meer voordeel

Kijk voor het gehele assortiment Adruino, 3D-printer onderdelen en led lampen op . www.vanallesenmeer.nl
