PLC W&T Web-IO 57634 - 12x Digital Input, 6x Digital Relay

Te Koop

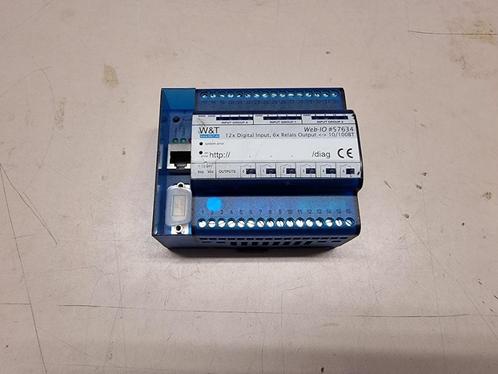

Wiesemann & Thei Web-IO 57634 - 12x Digital Input, 6x Digital Relay
Switching signals:
12 switching inputs:
Digital 24V inputs
32-bit pulse counter
6 potential-free contacts:
Switching voltage 12V, 24V, up to max. 48V
(110V, 230V via coupling relays)
Switching current max. 5A
Connectivity:
Intuitive Web interface for simpler operation
Select between German or English
Switching the outputs directly from the Web interface
Adaptation for smartphone
Time-controlled switching
Switching times configured via online calendar
Switching times transferred as an iCal file (*.ics)
Box-to-Box
Pass switching signals over the network 1:1
Alarm and reporting functions:
Email for alarm sending or as status report
SNMP polling / alarm traps
Configure up to 12 alarm messages
Dynamic integration into other Web sites:
Direct access to current measurement values via AJAX, JavaScript and Java applet
Additional software interfaces for incorporating into your systems/databases:
OPC
Modbus TCP
Syslog
TCP and UDP sockets, client and server
FTP (data logging)
Internal clock
Time synchronization via time server calibration
Battery-backed device clock
Possible applications:
Remote monitoring and fault messaging
Cross-location switching
House and building automation
Process monitoring and visualization
Light, gate and cabinet control
Machine Data Collection (MDC)
More uses can be found here.
Power supply:
External
Screw terminal
12 - 24V DC

Prijs € 50,-
2 stuks beschikbaar
