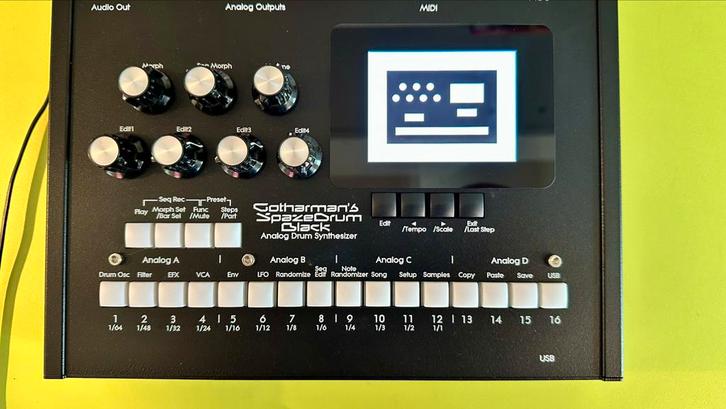

Gotharman’s - SpazeDrum Black

SUPER PRIJS 50% off WINKEL PRIJS VOOR 2 DAGEN MAAR ivm Lange Vakantie

Geweldige analog drummachine met touchscreen.In perfecte , nauwelijks gebruikt, staat. Uiteraard zonder gebruik sporen of wat dan ook.
Boutique, handgemaakt in Denemarken.
Ophalen liever ,gezien de waarde. Als het moet kan goed gepakt verzekerd verzonden worden .
Nieuw prijs als niet out of stock boven de 1700€.

Bijzonder boutique handgemaakt in Denemarken analog drum / synth met toutch screen for sneller interactie.
Door gebrek aan tijd kom ik niet aan toe en ligt in de kast. Zonde voor zo een bijzonder en dure apparaat.
Liefst Ophalen of verzekerd verzenden kk.
Betaling per tikkie, Paypal of bank overschrijving mogelijk.
Ruil enkel tegen op-xy of tosti s4 met bijbetaling.

Analog drum synthesizer with sequencer and Gotharman's unique highend effects and filters.

Analog drum synthesizer with 16 parts / 8 voices (4 analog/4 digital), based on dual SSI2140's.
-Has touch display for X/Y mod and Sequencer programming.
-Each part can be configured as an analog drum sound or a digital sound/sampler with or without 2 analog filters.
-2 filters and 2 insert effects per part.
-2 output effects.
-Sample wav import (18 minutes/2047 samples).
-Sequencer with 16 note tracks and 64 knob tracks.
-64 random generators, 16 LFO's.
-Stereo out.
-Morphing.
Uitgebreid info van gotharman.dk

Analog drum synthesizer with sequencer and Gotharman's unique highend effects and filters.

Available in 2 different models

Blue and Black. Blue is the original SpazeDrum, with its analog circuitry based on dual SSI2144 filter chips. The analog circuitry of Black is based on dual SSI2140 filterchips. The sound of the 2 instruments are quite different. The Blue has the crunchy Gotharman sound, while Black has a cleaner sound.
Other differences is that the analog filters of the Blue has a fixed slope of 24 db, while on Black the slope can be set to 6, 12 or 18 dB. On the analog oscillators of Black, it is possible to add harmonics to the sound in 4 steps.
SpazeDrum Black has a touch screen, which functions as an X/Y controller, makes it easier to program sequencer step values, and makes accessing the menus a bit easier.

Voice Structure

It has 16 parts, that is divided into 4 analog groups, with 4 parts each. Each analog group can have one analog voice and one digital voice playing at the same time.With the 4 parts of each analog group, it is possible to program some variations of the same sounds, or even 4 completely different sounds.

The Drum Oscillator of each part can be set up to one of six configurations, at a time:

Analog Percussion - A dual analog percussion oscillator and a digital oscillator. The analog percussion oscillator has special parameters like Shape, Buzz and G-Ray feedback. The digital oscillator can run in several modes, like waveform, resonator, percussion oscillator, cymbal oscillator, clap oscillator and sampler. Each oscillator can have most parameters modulated by any modulation source. The analog percussion oscillator can be FM'ed by a percussion noise source and by the digital oscillator. Can produce kicks, snares, analog hihats, toms, claps, noise and much more...


Analog Cymbal - A dual analog percussion oscillator and a digital oscillator. The analog cymbal oscillator has special parameters like Shape, Buzz and G-Ray feedback. The digital oscillator can run in several modes, like waveform, resonator, percussion oscillator, cymbal oscillator, clap oscillator and sampler. Each oscillator can have most parameters modulated by any modulation source. The analog Cymbal oscillator can be FM'ed by a multiple square wave source and by the digital oscillator. Can produce metallic sounds like cymbals and hihats, noises and much more...

Analog Clap - A dual analog percussion oscillator and a digital oscillator. The analog clap oscillator has special parameters like Shape and G-Ray feedback. The digital oscillator can run in several modes, like waveform, resonator, percussion oscillator, cymbal oscillator, clap oscillator and sampler. Each oscillator can have most parameters modulated by any modulation source. The analog Clap oscillator can be modulated by a clap oscillator, to produce the classical clap sound, and it can be FM'ed by a noise source and by the digital oscillator. Can produce hand claps, noises and more...


Synthesizer - 2 digital oscillators, going into 2 analog lowpass filters with separate cutoff and resonance controls, and G-Ray feedback. Each of the digital oscillators can run in several modes, like waveform, resonator, percussion oscillator, cymbal oscillator, clap oscillator and sampler. Each oscillator can have most parameters modulated by any modulation source. Most analog filter parameters can also be modulated. Oscillator 1 and the analog filters can be FM'ed by Oscillator 2. Crossfade is possible between oscillator 1 and 2. Can produce a wide variety of synthesizer sounds, including drum sounds.

External MIDI - The sequencer note track, that is assigned to the part, and the part trigger button, controls an external MIDI device, that is connected to MIDI out of SpazeDrum.

Digital Voice - One digital oscillator, that can run in several modes, like waveform, resonator, percussion oscillator, cymbal oscillator, clap oscillator and sampler. Most parameters of the oscillator can be modulated by any modulation source. A digital voice will not cut off an analog voice, so this is useful for adding some extra voices to your pattern.

The FM is done via hardware circuits.

After the oscillator section, it has 1 or 2 resonant digital multimode filters (depending on the selected filter group), to shape the sound further, that is coupled in parallel to each other. Both oscillators can be routed to both filters, or oscillator 1 can go to filter 1, and oscillator 2 to filter 2. Most of the filter parameters can be modulated. The filters has 41 filter types to choose from.

After the digital filters, the sound enters 2 insert effect processors. While the oscillators, the analog filters and the digital filters can have different settings for each part, the insert effects can only have settings for each of the 4 analog voices. Each analog voice has 2 insert effect processors - 8 in total. The effect type for each insert effect processor can be chorus, distortion, bit crush, a selection of pitch shifters, time strech, delays, parametric EQ, filters, compressor, expandor, bass enhancer, variator and sample pitch. Each insert effect can be placed before or after the VCA. Up to 3 parameters can be modulated at a time, for each insert effect.

After (or before regarding to the settings) the insert effects a VCA is located. This can be modulated by its own ADSR envelope, to set the amplitude shape of the sound. It can also be modulated by any other modulation source. From the VCA, the sound can be sent to the audio outputs, or to one or both of the 2 output effects.

The last stage of the audio chain is 2 output effect processors. Each part can be sent to one or both of these. The possible effects here is reverb, delays, granulators, sample pitch, time stretch, abstruct0, variator.


Analog Outputs

4 analog outputs can optionally be added. Each of these outputs has an analog VCA. So when audio is taken from these, and one of the analog drum structures is selected, the sound path will be purely analog. When the Synthesizer oscillator structure is selected, the analog output will be 2 digital oscillators/sampler going through 2 analog filters and an analog VCA. Effects can not be outputted throiugh the analog outputs. The 4 analog voices can output through their own analog audio output, or all 4 voices can be mixed to analog audio output 1.


Sequencer

The SpazeDrum sequencer has 16 note tracks. 1 track for each part. Each track can be up to 64 steps long, and the resolution can be set between 1/64 and 1/1 with triplets included. The number of steps and the resolution can be set separately for each track. Each note track contains 5 subtracks: Note number, gate time, velocity, position and sub-position. The values for each of these subtracks, is set separately for each step. Notes can be recorded in realtime, in steps and in X0X style, and all the subtracks can be edited.

For each part, the 4 Edit Knobs can be set up to control any number of parameters via modulation. Each of the 4 knobs has a knob track assigned to them, that can control it. SpazeDrum has a total of 64 knob tracks, and each of these can be up to 64 steps long, and have their resolution set between 1/64 and 1/1 with triplets included. The number of steps and the resolution can be set separately for each track. A "Smooth" parameter are available, which when on, smoothens out the transition between each step. Knob movements can be realtime and step recorded to these tracks, and the tracks can be edited.

The tempo goes from 51 BPM to 306 BPM.

The sequencer Note Tracks can control external MIDI devices.


Modulation Sources

Most parameters can be modulated by modulation sources like 16 global multi waveform LFO's, 3 envelopes per part, 4 random generators per part, 4 knobs and knob tracks per part and MIDI velocity and CC's.


Solid

Built to last in a steel box with extruded aluminium sides. All powdercoated with a "Black Sand" finish, that is very resistant to scratches and dust. All knobs, buttons and connectors are of the highest quality.


Released: Blue: June 2020. Black: November 2020.

-1024 user storable presets and 1024 user storable songs. Comes with 64 presets pre-programmed.

-256 favorite sounds can be stored for instant recall, when adding sounds to parts.

-16 parts. 8 voices (4 analog/4 digital). Each part can either be analog percussion, analog cymbal, analog clap, or synthesizer with or without analog filters.

Oscillator configurations:
Analog Percussion. Dual analog oscillator and a digital oscillator (waveform, resonator, percussion, cymbal, clap, sampler).
Analog Cymbal. Dual analog oscillator and a digital oscillator (waveform, resonator, percussion, cymbal, clap, sampler).
Analog Clap. Dual analog oscillator and a digital oscillator (waveform, resonator, percussion, cymbal, clap, sampler).
Synthesizer. 2 digital oscillators (waveform, resonator, percussion, cymbal, clap, sampler), 2 analog filters. Osc 1/2 crossfade.
External MIDI: The sequencer note track and the trigger button will control an external MIDI device.
Digital Voice. Synthesizer with one digital oscillator (waveform, resonator, percussion, cymbal, clap, sampler).

The analog circuitry of Blue is based on dual SSI2144's. On Black this is based on dual SSI2140's.

Samples. wav files can be imported via USB. Room for 2047 samplings/ Max 18 minutes. If stereo samplings are imported, only the left audio channel will play back.

Hardware FM.

-1 or 2 digital filters per voice (depending on selected filter group). 41 filter types.

-8 Insert effects, 2 per voice. Chorus, distortion, bit crush, pitch shift, resonator, stretcher, FM, glitch shift 1 and 2, pitch shaper 1 and 2, FAT, filters 1 and 2, compressor, expandor, delay, roto delay, bright delay, bright roto delay, variator, time stretch, sample pitch 1 and 2, bass enhancer, parametric EQ, Comb Filter.

-2 output effects. Delay, roto delay, bright delay, bright roto delay, granulator SQ, granulator (unsynced), xfade granulator, variator, reverb, abstruct0, time stretch, sample pitch.

-16 sequencer note tracks. Up to 64 steps per track and settable resolution. Position subtrack makes it possible for any step to play back at any position.

-64 sequencer knob tracks. Controls the 4 Edit Knobs, or runs as independent controller tracks. Up to 64 steps per track and settable resolution. Can be used as LFO Draw waveforms.

-Sequencer tempo: 51 to 306 BPM.

-Synthesizer Morph Knob and Sequencer Morph Knob.

-16 global LFO's with controller track draw waveforms, 4 Random generators per part and 3 envelope generators per part.

Display: Blue: 2,4" non-touch. Black: 3,2" touch.

USB: Connect a USB drive for importing and exporting of wav samplings, presets and songs, and for updating the firmware.
Imports: SpazeDrum presets and songs, wav samplings, 44.1 KHz 16 or 24 bit, broadcast wavs, cue points (will be used as chop points), LD3, Tiny LD and Urano sequences.
Exports: SpazeDrum presets and songs, wav samplings 16 bit, 44.1 KHz. Chop points are exported as cue points, for use with many computer programs.

Sample Editing: Graphical sample editing are available. Start and end points can be set, and chop points can be inserted.

Audio: Stereo out, optional 4 separate analog outputs. Left output also functions as a headphone connector.

Audio system:
-Inputs and outputs: 24 bit, 44.1 KHz Cirrus Logic high end ADC/DAC.
-Internal: 32 bit, 44.1 KHz.
-Sampler: 16 bit, 44.1 KHz.
-Maximum audio latency: 1 sample - 22 uS (microseconds). 450 times faster than Linux based instruments!!!

MIDI: In and out.

High quality MultiMec pushbuttons that should be able to withstand 1.000.000 operations.
The knobs has solid metal shafts.
Box is made of steel and aluminium.

Size: 25 x 17.5 x 4.5 cm

Weight: 1.7 KG

Power: 9V, 0.5A (average).
