Kenmerken
Conditie
Gebruikt
Aantal kanalen
10 tot 20 kanalen
Beschrijving
Goed werkend mengpaneel te koop.

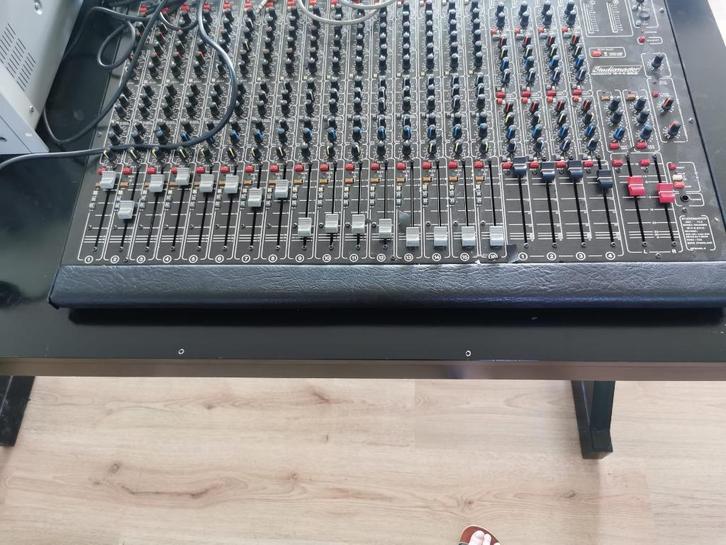

Studiomaster Mixdown 16-4-8 mixer.16 mic/line channels with: fx send/return, direct out, +48v phantom, ch1-8 mic/tape switch, ch9-16 mic/line switch, -20dB switch, gain, 16dB para-eq w/hi, mid-sweepable, low-sweepable, 4 post-fade sends, 1 pre-fade send, 1 pre-EQ/pre-fade send, pan, clip LED, solo switch, channel on switch, LR/12/34 routing buttons, 100mm sealed carbon fader 8 line-level inputs/tape returns 4 sub-mix groups with: LED meters, 2-band eq, 1 pre aux send, 1 post aux send 8 tape outs stereo out with: LED meters, fx send/return, balanced/unbalanced outs monitor out w/level control 2-track return w/level control stereo fx return 1kHz slate and XLR talkback mic/level control headphone out w/level control Specs: mic input noise level: -129dB line input noise level: -89dB SNR mic input through L/R output: -76dB (ref +4dBm) SNR line input through L/R output: -85dB (ref +4dBm) THD mic Gain @ 50dB, master @ 0dBm into 600 ohms: < 0.05% @ 1kHz stereo crosstalk across pan control: < -72dB stereo crosstalk across routing switch: < -88dB dimensions: 780mm W x 130mm H x 640mm D weight: 50 lbs –
Studiomaster Mixdown 16-4-8 mixer.16 mic/line channels with: fx send/return, direct out, +48v phantom, ch1-8 mic/tape switch, ch9-16 mic/line switch, -20dB switch, gain, 16dB para-eq w/hi, mid-sweepable, low-sweepable, 4 post-fade sends, 1 pre-fade send, 1 pre-EQ/pre-fade send, pan, clip LED, solo switch, channel on switch, LR/12/34 routing buttons, 100mm sealed carbon fader 8 line-level inputs/tape returns 4 sub-mix groups with: LED meters, 2-band eq, 1 pre aux send, 1 post aux send 8 tape outs stereo out with: LED meters, fx send/return, balanced/unbalanced outs monitor out w/level control 2-track return w/level control stereo fx return 1kHz slate and XLR talkback mic/level control headphone out w/level control Specs: mic input noise level: -129dB line input noise level: -89dB SNR mic input through L/R output: -76dB (ref +4dBm) SNR line input through L/R output: -85dB (ref +4dBm) THD mic Gain @ 50dB, master @ 0dBm into 600 ohms: < 0.05% @ 1kHz stereo crosstalk across pan control: < -72dB stereo crosstalk across routing switch: < -88dB dimensions: 780mm W x 130mm H x 640mm D weight: 50 lbs –
...
...
...
...
...
...
...
...
...
...
...
...
Harmelen
253x bekeken
4x bewaard
Sinds 16 sep '25
Advertentienummer: m2311918444
