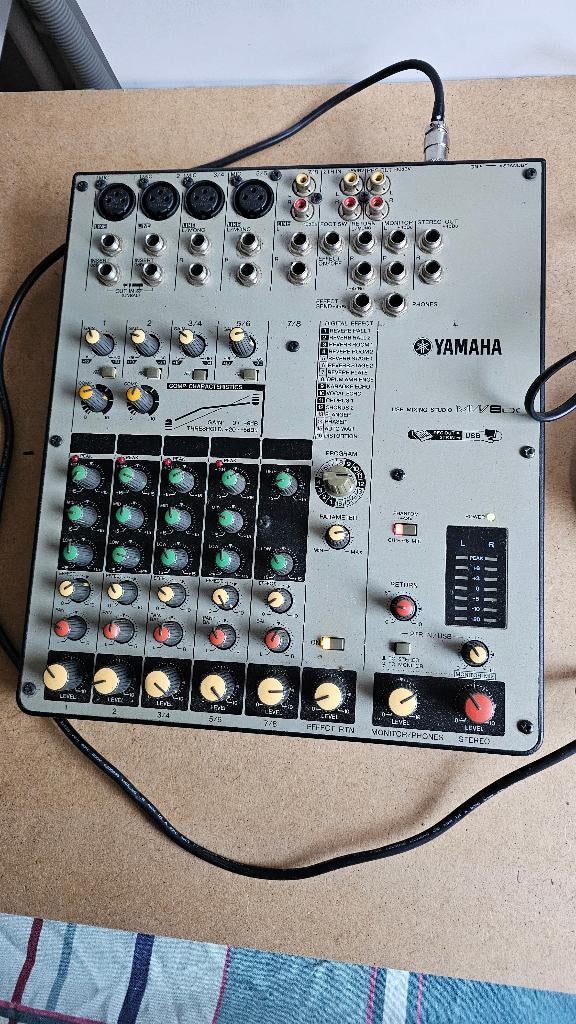

YAMAHA USB Mixing Studio MW8CX

Mag weg tegen een goed bod .

Features


8-channel USB Mixer

Connect To Your Computer via a Single USB Cable

No Driver Installation Required

Cubase LE DAW Software Supplied

Easy-to-use 1-knob compression

3-Band EQ On Each Channel

48V Phantom Power


Specs
MW8CX 8-Channel USB Mixer


Frequency Response: ST OUT, REC OUT, AUX (EFFECT*) SEND, MONITOR OUT, -3.0, 0, 1.0 dB, GAIN: min (CH 1-2, CH 3/4-5/6), 20Hz-20kHz, nominal output level @1kHz

Total Harmonic Distortion (THD+N): ST OUT, Less Than 0.1 %, +14dBu, 20Hz-20kHz, Input Gain Control at minimum

Hum & Noise (Hum & Noise are measured with a 6dB/octave filter @12.7kHz; equivalent to a 20kHz filter with infinite dB/octave attenuation):

CH INPUT 1-4 MIC: -128 dBu, EIN (Equivalent Input Noise): Rs=150ohms,

GAIN: max

ST OUT, REC OUT: -87 dBu, ST MASTER CONTROL at nominal level and all Ch level controls at minimum.

AUX (EFFECT) SEND:-85 dB, All Ch AUX controls at minimum.

ST OUT, REC OUT -64 dB, ST Master control and one Ch level control at nominal level. (CH1, 2)

ST OUT: -100 dB, Residual Output Noise.

Crosstalk @ 1 kHz: Input to Output -70 dB, STEREO L/R, CH 1-2, PAN panned Hard left or right.

Phantom Voltage: MIC, +48 V

USB Audio I/O Sampling Frequency: 44.1, 48 kHz, Depend on the application of PC

Input HPF: CH 1-2 and CH 3/4-5/6, 80Hz, 12dB/oct

Input Equalization (+15,-15dB maximum. Turn over/roll-off frequency of shelving: 3dB blow maximum variable level.)

High: 10 kHz shelving (CH 1-2, CH 3/4-5/6)

Mid : 2.5 kHz peaking (CH 1-2, CH 3/4-5/6)

Low: 100 Hz shelving (CH 1-2, CH 3/4-5/6)

High: 10 kHz shelving (CH 7/8, CH 9/10)

Low: 100 Hz shelving (CH 7/8, CH 9/10)

PEAK Indicator: Red LED turns on when post EQ (ST CH: or post Mic HA) signal reaches -3dB below clipping (17dBu).

Internal Digital Effects: 16 PROGRAM, PARAMETER control, Foot Switch (Digital Effect, on/off)

LED Level Meter: Pre MONITOR Level 2x7 points LED meter (PEAK,+6,+3,0,-5,-10,-20 dB) PEAK lights if the signal comes within 3 dB of the clipping level.

Power Supply Adapter: PA-10

Power Consumption: 21 W

Dimensions (W x D x H): 10.10 x 11.90 x 2.44 in. (256.6 x 302.5 x 62.2 mm)

Net Weight: 3.74 lbs. (1.7 kg)

Option: Microphone Stand Adaptor (BMS-10A)


MW8CX System Requirements:


Windows Vista:

Computer: Windows-based computer with built-in USB interface

OS: Windows Vista

CPU: 1 GHz or better Intel Core / Pentium / Celeron processor

Memory: More than 1 GB

Windows XP:

Computer: Windows-based computer with built-in USB interface

OS: Windows XP Professional / XP Home Edition

CPU: 750 MHz or better Intel Core / Pentium / Celeron processor

Memory: More than 128 MB

Macintosh:

Computer: Macintosh computer with built-in USB interface

OS: Mac OS X 10.3.3 or higher

CPU: Macintosh G3 processor 300 MHz or better

Memory: More than 128 MB


Cubase AI4 System Requirements:


Windows:

OS: Windows XP Professional / XP Home Edition

CPU: Intel Pentium 1.4 GHz or better

Available Memory: More than 512 MB

Hard Disk: Free disk space of 400 MB or more; high-speed hard disk

Audio Interface: Windows DirectX / ASIO compatible

Macintosh:

OS: Mac OS X 10.4 or higher

CPU: Power Mac G4 1 GHz or Core Solo 1.5 GHz or better

Available Memory: More than 512 MB

Hard Disk: Free disk space of 400 MB or more; high-speed hard disk
