12 inch basspeaker Faital pro 12FH520 16 ohm. Nieuw in doos

12 inch basspeaker Faital pro 12FH520 16 ohm. Nieuw in doos en geseald.

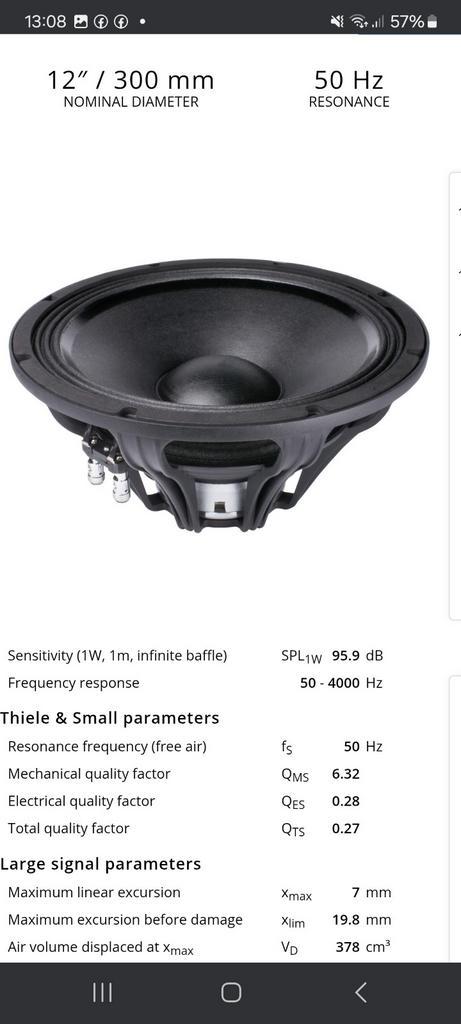

Foto's zijn van t internet.
100 euro VASTE PRIJS!
Ophalen heeft de voorkeur zodat u m kan bekijken en uitproberen.
Versturen kan maar verzendkosten en risico zijn voor de koper.

Specificaties:
Nominal Diameter: 300 mm (12in)

Overall Diameter: 316 mm (12.44in)

Bolt Circle Diameter: 298.5 mm (11.75in)

Baffle Cutout Diameter: 284 mm (11.18in)

Overall Depth: 155.75 mm (6.13in)

Flange/Gasket Thickness: 12.5 mm (0.49in)

Impedance: 16ohm

AES Power: 600 W

Program Power: 1200 W

Sensitivity: 98 dB

Frequency Range: 50:4000 Hz

Voice Coil Diameter: 77 mm (3in)

Voice Coil Material: Al

Voice Coil Former: Glass Fiber

Voice Coil Depth: 18.5 mm (0.71in)

Magnetic Gap Depth: 12 mm (0.47in)

Surround Type: Triple

Spider Profile: 1x variable height waves

Chassis Material: Aluminum

Magnet Material: Neodymium Slug

Demodulating Ring: Aluminum Ring

Flux Density: 1.1 T

Driver Displacement Volume: 2.4 L (0.085ft^3)

Resonance (Fs) - 50 Hz

DC Resistance (Re) - 5.1 Ohm

Electrical Q (Qes) - 0.30

Mechanical Q (Qms) - 11.1

Total Q (Qts) - 0.29

Compliance Equivalent Volume (Vas) - 73.7 L

Diaphragm Area (Sd) - 540 cm2

Maximum Linear Excursion (Xmax) - 7.25 mm

Maximum Mechanical Excursion (Xdamage) - 19.5 mm

Moving Mass - System (Mms) - 56.0 g

Force Factor (BL) - 17.3 Tm

Voice Coil Inductance (Le) - 0.74 mH

Moving Mass - Diaphragm (Mmd) - 41.8 g

Compliance (Cms) - 0.18 mm/N

Mechanical Resistance (Rms) - 1.6 Kg/s

Reference Efficiency (Eta Zero) - 2.98 %

Efficiency Bandwidth Product (EBP) - 167
