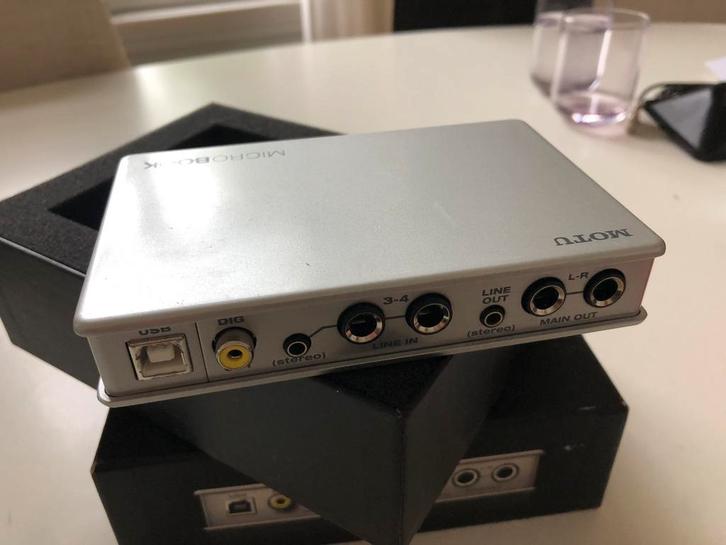

USB audio interface
Opname interface voor instrumenten

4-input, 2-output bus-powered "plug-and-play" USB audio interface for Mac and Windows.
4 x 8 physical input / output channels.
10-bus digital mixer to route and mix live inputs with live computer tracks.
Pre-amp equipped mic input with Precision Digital Trim, 48V phantom power, and 20 dB pad.
Guitar input with Precision Digital Trim.
Stereo line level analog input (balanced TRS quarter-inch or stereo mini).
Stereo balanced TRS quarter-inch line level main outs.
Stereo eighth-inch line level out.
S/PDIF digital out (duplicates main out).
Headphone output on eighth-inch stereo "mini" jack with independent volume control.
Support for both 44.1 and 48 kHz sample rates on all analog and digital ins / outs.
Digitally controlled analog trim for all analog inputs.
Digital trim for all outputs.
7-band parametric EQ and compression.
Test tone and white / pink noise generator.
Advanced audio analysis software tools, including FFT display, spectrogram "waterfall" display, oscilloscope, XY plot, and phase analysis.
Industry standard Mac and Windows drivers (Core Audio, Wave, and ASIO) for across-the-board software compatibility.
Compatible with all current and recent generation Macs and PCs.
Chassis dimensions: 9.14x13.97x2.54cm
