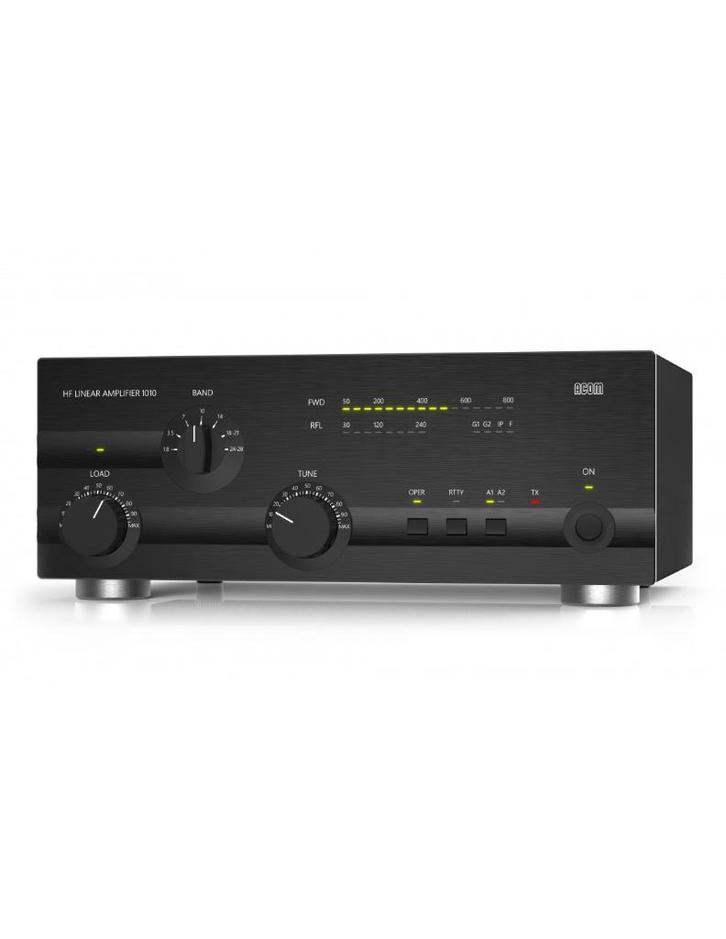

Acom 1010 HF Amplifier 160-28 (27) Model 2025

NIEUWE PRIJS 2025

DIRECT LEVERBAAR

Acom 1010 2 jaar garantie  op electronica en 1 jaar op de buis GB ANTENNES 35 JAAR

Frequency Coverage

• All amateur bands from 1.8 through 29.7 MHz:
• 1.800 - 2.000 MHz (160 m band)
• 3.500 - 4.000 MHz (80 m band)
• 5.020 - 5.455 MHz (60 m band)*
• 7.000 - 7.300 MHz (40 m band)
• 10.100 - 10.150 MHz (30 m band)
• 14.000 - 14.350 MHz (20 m band)
• 18.068 - 18.168 MHz (17 m band)
• 21.000 - 21.450 MHz (15 m band)
• 24.890 - 24.990 MHz (12 m band)
• 28.000 - 29.700 MHz (10 m band)
• 27.000 - 28.000 MHz ( 11m band )
• geen betaling via marktplaats

• (*) Please, refer the applicable regional band plans and laws for specific allocations and limitations;
• In specific business cases, extensions or changes of the frequency coverage can be discussed, but this must be agreed upon before ordering. In any case, this is not the producer's obligation and can not be against local rules and laws.

Power Output

• 800 W PEP or 500 W continuous carrier; GU74B/ 4CX800A tube

Intermodulation Distortion

• Better than 35 dB below rated output;

Hum and Noise

• Better than 40 dB below rated output;

Harmonic Output Suppression

• Better than 50 dB below rated output;

Input and Output Impedances

• Nominal value: 50 Ohm unbalanced, UHF (SO-239) type connectors;
• Input circuit: broadband, SWR less than 1.3, 1.8-30 MHz continuously (no tuning, no switching);
• Bypass path: SWR less than 1.1, 1.8-30 MHz continuously, 200 W maximum;
• Output (antenna) impedance matching capability: SWR up to 3 or higher;

RF Gain

• 11 dB typically, frequency response less than 1 dB (50-70 W drive power for rated output);

Mains Power Supply Voltage

• 85-132 VAC / 170-264 VAC (100, 110, 120, 200, 210, 220, 230 & 240 V nominal taps, +10% -15% tolerance), 50-60 Hz, Single phase;

Mains Power Consumption

• 1200 VA at rated output;

Safety and Electromagnetic Compatibility

• Complies with CE safety and electromagnetic compatibility requirements, as well as with the US Federal Communications Commission (FCC) regulations;

Size & Weight (operating, excluding connected cables)

• WxDxH: 402x315x166 mm, 17 kg (15.9x12.4x6.6 inches, 37.5 lbs.);

Shipping Size & Weight

• WxDxH: Approx. 580x460x340 mm, 20.0 kg (22.9x18.2x13.4 inches, 44.1 lbs.);
• Please, contact us for shipment details;

Operating environments

• Temperature range: 0 to +50 degrees Celsius (32 degrees F to 122 degrees F);
• Relative air humidity: up to 95% @ +35 degrees Celsius (95 degrees F);
• Height above sea level: up to 3050 m (10000 ft) without output deterioration.

NIEUW MODEL 2024 OP VOORRAAD
