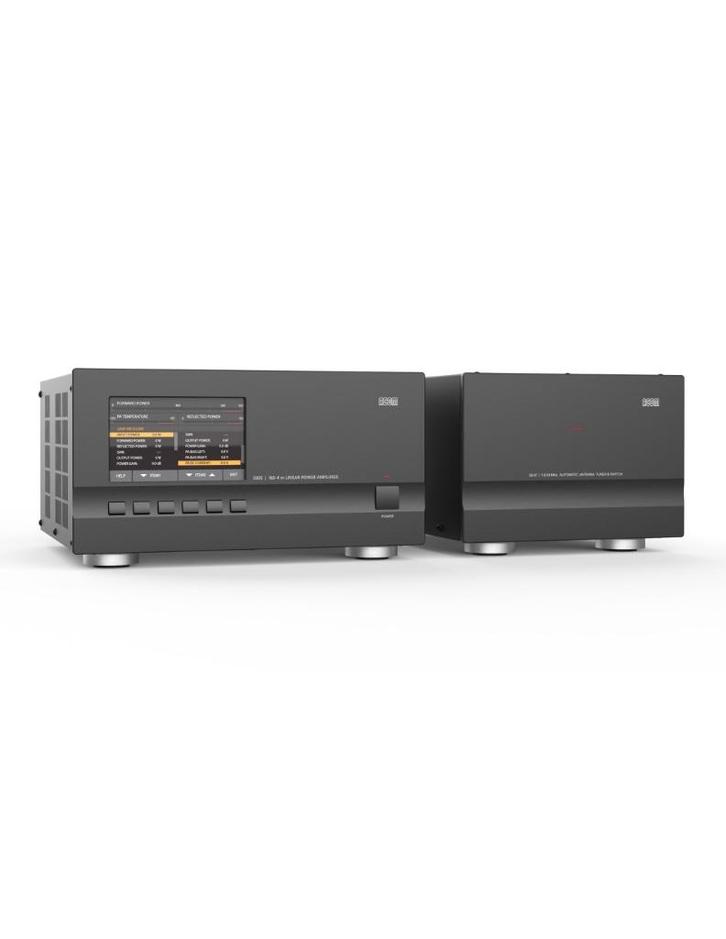

Acom 500S HF +6m+4m Amplifier

Let op de verzendkosten i.v.m.gewicht gaat met speciaal vervoer mail ons eerst.
KAN OOK REMOTE GEBRUIKT WORDEN MET DE eBOX
GB ANTENNES 35 JAAR
AMPLIFIER ACOM 500S
LEVERTIJD IS 1 WEEK
LET OP DE TUNER O6AT ZIT ER NIET BIJ DE LEVERING DEZE IS APART TE BESTELLEN OP DE WEBSITE
Frequency Coverage

• All amateur bands from 1.8 through 70.5 MHz;
• Extensions and/or changes on request;

Rated Output Power

• 500 W ±0.5 dB, PEP or digital;

Intermodulation Distortion (IMD3)

• Better than 30 dB below rated PEP;

Harmonic and Parasitic Emissions Output Suppression

• Below 30 MHz - better than 50 dBc below rated output;
• Above 30 MHz - better than 70 dBc below rated output;

Input Impedances

• Nominal value: 50 Ohm unbalanced, UHF (SO-239A) type connectors;
• SWR: Below 1.5 (1.2 typically), 1.8-70.5 MHz continuous range;
• RF bypass: SWR - below 1.1, 1.8-70.5 MHz;

Antenna Impedance

• Nominal value: 50 Ohm unbalanced;
• Two antenna outputs available:
• RF OUTPUT 1 output provides seamless integration with the auto-switching antenna tuners ACOM 04AT or ACOM 06AT, for access from amplifier's front panel to 4 antennas having an SWR up to 3, within 160 to 6 meter bands;
• RF OUTPUT 2 - A well-matched antenna with an SWR below 1.5 can be connected to this output for any band. While low SWR is good for any band, it is extremely important on 6 and 4 m. RF OUTPUT 2 is not intended for ACOM 04AT or ACOM 06AT antenna tuners;

• Antenna connectors: PTFE UHF (SO-239A) type;

RF Power Gain

• 14 dB ±1 dB (typically 20 W drive for rated output); Met Mostfet MRF1K50H

Mains Power Supply Voltage

• 100-240 VAC ±10%, 50-60 Hz, Single phase;

Mains Power Consumption at Rated Output Power

• Up to 1000 VA;
• Power factor at rated output: 0.95 or higher;

Mains Power Consumption in Low Energy (Waiting) Mode

• Less than 1 VA;

Safety and Electromagnetic Compatibility

• Complies with CE safety and electromagnetic compatibility requirements, as well as with the US Federal Communications Commission (FCC) regulations;

Size & Weight (operating, excluding connected cables)

• WxDxH: 291x270x157 mm, 7.8 kg (11.5x10.7x6.2 inches, 17.2 lbs.);

Shipping Size & Weight

• WxDxH: Approx. 500x470x380 mm, 11.6 kg (19.7x18.5x15.0 inches, 25.6 lbs.);
• Please, contact us for shipment details;

Operating environments

• Temperature range: -10 to +40 degrees Celsius (14 degrees F to 104 degrees F);
• Relative air humidity: up to 95% @ +35 degrees Celsius (95 degrees F);
• Height above sea level: up to 3050 m (10000 ft) without output deterioration.
