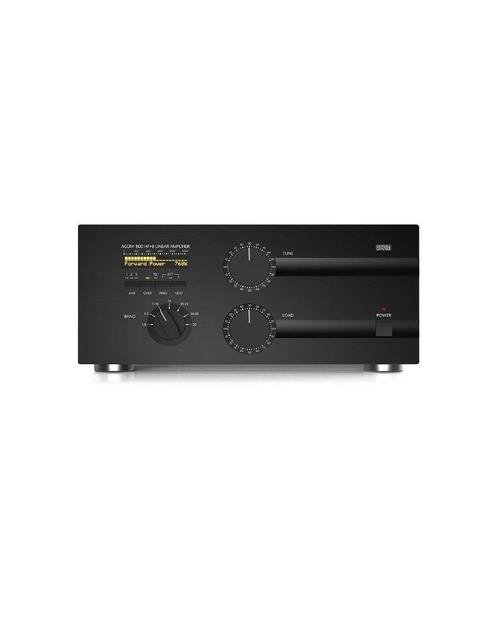

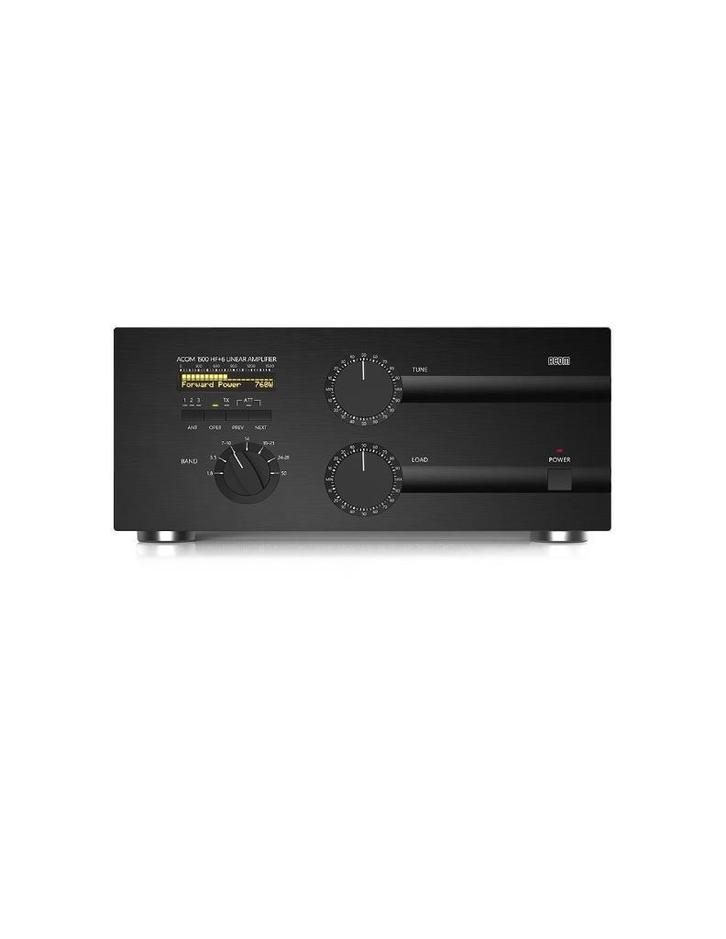

Acom 1500 HF Amplifier 160-6m Model 2025

NIEUWE PRIJS 2025 ACOM 1500 met EXTRA FAN FT8
voor zelf mounting

Frequency Coverage

• All amateur bands from 1.8 through 54 MHz:
• 1.800 - 2.000 MHz (160 m band)
• 3.500 - 4.000 MHz (80 m band)
• 7.000 - 7.300 MHz (40 m band)
• 10.100 - 10.150 MHz (30 m band)
• 14.000 - 14.350 MHz (20 m band)
• 18.068 - 18.168 MHz (17 m band)
• 21.000 - 21.450 MHz (15 m band)
• 24.890 - 24.990 MHz (12 m band)
• 28.000 - 29.700 MHz (10 m band)
• 27.000 - 28.000 MHz (11 m band)
• 50.000 - 54.000 MHz (6 m band)*
• geen betaling via marktplaats

• (*) Please, refer the applicable regional band plans and laws for specific allocations and limitations;
• In specific business cases, extensions or changes of the frequency coverage can be discussed, but this must be agreed upon before ordering. In any case, this is not the producer's obligation and can not be against local rules and laws.

Power Output
1200 W continuous carrier, no mode limit;
Intermodulation Distortion

• Better than 35 dB below PEP rated output;

Hum and noise

• Better than 40 dB below rated output;

Harmonic Output Suppression

• 1.8-21.5 MHz - better than 50 dB below rated output;
• 24-54 MHz - better than 66 dB below rated output;

Input and Output Impedances

• Nominal value: 50 Ohm unbalanced, UHF (SO-239A) type connectors;
• Input circuit: broadband, SWR less than 1.3:1, 1.8-54 MHz continuously (no tunings, no switching);
• Bypass path SWR less than 1.1:1, 1.8-54 MHz continuously;
• Output (antenna) impedance matching capability: SWR up to 3:1 or higher;

RF Gain

• 13 dB typically, frequency response less than 1 dB (60-85 W drive power for rated output); With 4CX1000A Tube

Mains Power Supply Voltage

• 85-132 VAC / 170-264 VAC (100, 110, 120, 200, 210, 220, 230 & 240 V nominal taps, +10% -15% tolerance), 50-60 Hz, Single phase;

Mains Power Consumption

• Up to 3500 VA at rated output from 200/240 VAC mains supply;
• Up to 2400 VA at 1000 W output from 100/120 VAC mains supply;

Safety and Electromagnetic Compatibility

• Complies with CE safety and electromagnetic compatibility requirements, as well as with the US Federal Communications Commission (FCC) regulations;

Size & Weight (operating, excluding connected cables)

• WxDxH: 422x355x195 mm, 26.5 kg (16.7x14.0x7.7 inches, 58.5 lbs.);

Shipping Size & Weight

• WxDxH: Approx. 590x490x380 mm, 30.0 kg (23.3x19.3x15.0 inches, 66.2 lbs.);
• Please, contact us for shipment details;

Operating environments

• Temperature range: 0 to +50 degrees Celsius (32 degrees F to 122 degrees F);
• Relative air humidity: up to 95% @ +35 degrees Celsius (95 degrees F);
• Height above sea level: up to 3050 m (10000 ft) without output deterioration.

GB ANTENNES 35 JAAR : ACOM 1500 MODEL 2025
