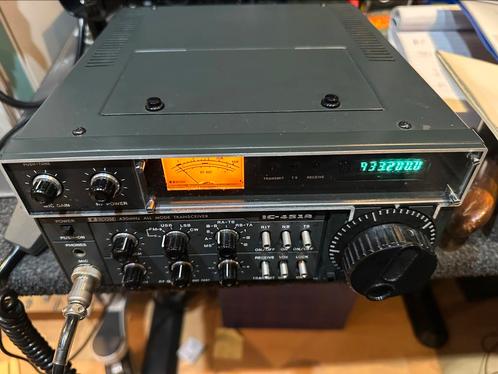

Icom ic 451A 430mhz all mode transceiver

In superstaat verkerende Icom 451a All mode transeiver (70 cm band) compleet met doos en manual/layouts. 10 watt, regelbaar.

Type:Amateur UHF transceiverFrequency range:USA
TX: 430-440 MHz
RX: 430-440 MHzTuning steps:100 Hz, 1 / 5 KHzFrequency stability:±0.001% @ -10 to +60°C (14 to 140°F)Mode:FM / SSB / CWChannels / memory management:3 regularRepeater shift / offset:No dedicated. Use VFO A/B splitPower supply:Mains: 117 VAC ±10%
or 13.8 VDC ±15%Current drain / power consumption:RX: 600 to 800 mA
TX: Max 3.5 AAntenna impedance / connector:50 ohm / N-jackDimensions (W*H*D):241*111*264 mm (9.5*4.37*10.4")Weight:7.2 Kg (15.9 lb)Other features:NB. VOX.



RECEIVER SECTIONReceiver system:Double conversion superheterodyne (SSB/CW)
1st IF: 39.38 MHz
2nd IF: 10.75 MHz
Triple conversion superheterodyne (FM)
1st IF: 39.38 MHz
2nd IF: 10.75 MHz
3rd IF: 455 KHzSensitivity:FM: 0.6 uV (20 dB noise quieting)
SSB/CW: 0.5 uV (10 dB S+N/N)Selectivity:FM
15 KHz (-6 dB)
30 KHz (-60 dB)
SSB/CW
2.4 KHz (-6 dB)
4.8 KHz (-60 dB)Image rejection:AF output power / speaker:2 W at ?% distortion / 8 ohmExternal speaker connector:3.5 mm



TRANSMITTER SECTIONRF output power:1-10 W adjustableModulation system:FM: Variable reactance
SSB: BalancedMax FM deviation (Factory set):±5 KHzSpurious emissions:Better than -60 dBMicrophone impedance / connector:1.3 Kohm / 8-pin (Metal locking ring connector)Microphone input level:? mV
