Yaesu FT 897D HF VHF UHF ALL MODE

Te koop wegens aankoop andere set. hier in werking te testen op draadantenne en rondstraler. krasvrije staat.

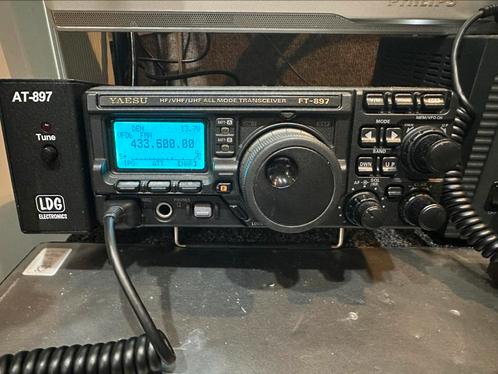

Yaesu FT 897D  INCL: LDG AT897  antenne tuner , Desktop mic M90 en extern display.en natuurlijk de originele Handmike Mh31.
doos en boekjes aanwezig,


Features | Specifications | Accessories
View Large | View Very Large | System Diagram | Rear Panel
American hams got their first look at the new Yaesu FT-897 at the 2002 Dayton Hamvention. It is the world's first multi-mode high-power base/mobile transceiver designed to fitted with internal batteries (optional) for portable use. The coverage is HF 160 to 10 meters plus 50/144/430 MHz VHF/UHF. Receive is 0.1-56, 76-108, 118-164 and 420-470 MHz. It is ideal for home, vacation, emergency, rescue, DX-pedition or VHF/UHF rover operation. With optional items the FT-897 system can be configured for mobile, base or portable use.
The large multi-color display can be programmed to show different colors on each band, mode, memory group or event to track signal strength by color! There are two antenna connectors HF/50 and 144/430 MHz. 7.9 x 3.2 x 10.3 inches (200x80x263 mm). The FT-897 comes with a MH-31B8 hand mic and power cord.

Features

• TX Frequency Coverage: 160-10 Meters, 50 MHz, 144 MHz, 430-450 MHz, plus Alaska Emergency Chan. (5167.5 kHz).
• RX Frequency Coverage: 100 kHz-56 MHz; 76-154 MHz; 420 - 470 MHz. (Exact frequency range may be slightly different)
• Power Output: 100 watts HF-6M, 50 watts 2 M, 20 watts 70 cm. (20 watts on battery)
• Operating Modes: USB, LSB, CW, AM, FM, W-FM, Digital (AFSK), Packet (1200/9600 FM).
• Digital Modes: RTTY, PSK31-U, PSK31-L, and User defined USB/LSB (SSTV, Pactor, etc.).
• U.S. Weather Band reception.
• Built-in 3-Message Memory Keyer.
• Multi-Color LCD Multi-function Display.
• Bar-Graph Metering of Power Output, ALC, SWR, Modulation.
• Optional Narrow CW and SSB Filters.
• AGC Fast-Slow-Auto-Off Selection.
• RF Gain/Squelch Control/IF Control.
• Built-in Noise Blanker.
• AM and FM broadcast reception.
• Dual VFOs, Split Capability, IF Shift, and R.I.T. ("Clarifier").
• Wide/Narrow FM Selection.
• AM Aircraft Reception.
• Dedicated SSB-based Digital Mode for PSK31 on USB/LSB, AFSK RTTY, etc.
• Built-in CW Electronic Keyer and Semi-Break-In.
• Transverter Interface Jack.
• Built-in VOX.
• Carry Handle.
• Built-in CTCSS and DCS.
• ARTS™ (Auto-Range Transponder System).
• Smart Search™ Automatic Memory Loading System.
• Spectrum Scope.
• 200 Regular Memories, plus Home Channels and Band-Limit (PMS) Memories.
• Alpha-Numeric Labeling of Memory Channels.
• Automatic Power-Off (APO) and Tx Time-Out Timer (TOT) Features.
• CAT System Computer Control Capability Cloning Capability.
