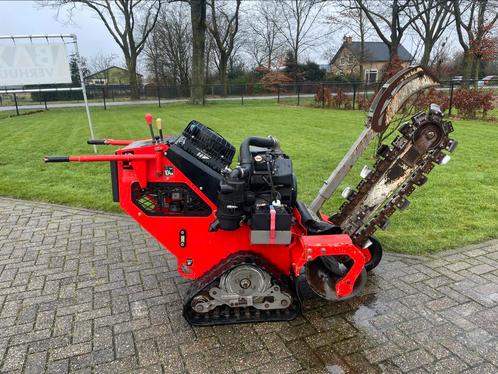

Vermeer RTX150 sleuvengraver sleuvenfrees

GENERAL
Length (tractor with tracks): 81.4" (206.8 cm)
Width (over rubber tracks): 34" (86.4 cm)
Width (over rubber tires): 35" (88.9 cm)
Height: 46" (116.8 cm)
Weight (tractor with tires): 1000 lb (453.6 kg)
Wheel base from centerline of axles: 34.2" (86.9 cm)
HYDRAULIC SYSTEM
Attachment pump relief pressure (trencher/forward): 2975 psi (205 bar)
Ground drive pump relief pressure (forward/reverse): 2400 psi (165.5 bar)
Ground drive pump gpm at maximum engine RPM: 5.4 gpm (20.5 L/min)
Hydraulic supply filter rating: 100 mesh suction strainer
Attachment pump gpm at maximum engine RPM: 10.5 gpm (39.6 L/min)
ENGINE
Make and model: Kohler CH20
Fuel type: Gas
Gross horsepower: 20 hp (14.9 kW)
Displacement: 39.1 cu in (.624 L)
Number of cylinders: 2
Cooling medium: Forced air
Aspiration: Natural
Maximum operating angle (fore/aft): 25 degrees
GROUND DRIVE
Ground drive type: Hydrostatic
Maximum forward transport speed at full throttle: 3.1 mph (5 km/h)
CAPACITIES
Fuel tank: 2.8 gal (10.6 L)
Hydraulic tank: 12 gal (45.4 L)
Hydraulic system: 12 gal (45.4 L)
TRENCHER ATTACHMENT
Maximum digging depth: 36" (91.4 cm)
Maximum cutting width: 6" (15.2 cm)
Minimum cutting width: 4" (10.2 cm)
