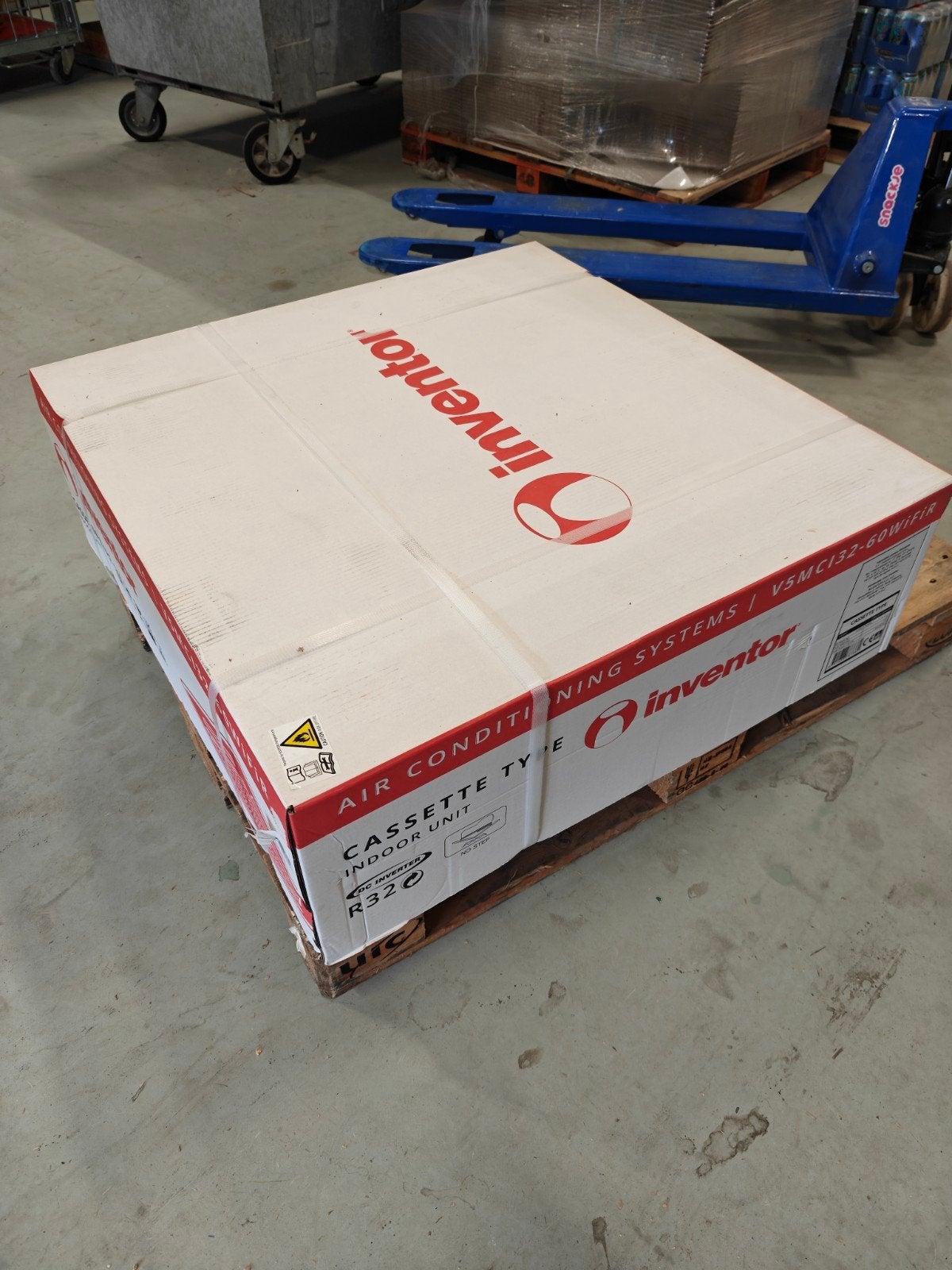

Nieuw in doos Inventor V5MCI32-60WiFiR Air Conditioning
Cassette Unit 15kw

Tech Specs V5MCI32-60WiFiR/U5MRT32-60
Cooling Capacity: 53,000 Btu/h Heating
Capacity: 62,000 Btu/h Energy Class (warmer
zone): A+++ Cooling Capacity Range: 18,000-
57,000 Btu/h Cooling Capacity Range: 15.53
(5.28-16.71) kWatt Heating Capacity Range:
15,000-66,000 Btu/h Heating Capcity Range:
18.17 (4.4-19.34) kWatt Seasonal Capacity
(According to ??14.825) Cooling Pdesign: 15.7
kW Energy Class: A++ SEER: 6.1 Heating
Middle Zone Pdesign: 11.9 kW Energy Class:
A+ SCOP: 4.0 Warm Zone Pdesign: 12.5 kW
Energy Class: A+++ SCOP: 5.1 Voltage
/Frequency/Phase: 380-415/50/3 V/Hz/Ph
Current Input – Cooling / Heating: 9.8 (1.8-11.6)
/ 9.9 (1.6-11.2) ? Power Input Cooling / Heating:
5,951 (1,147-6,682) / 6,036 (1,022-6,448) W Air
Flow Volume (High / Medium / Low): 1.970/1737
/1.537 m³/h Noise Level Indoor unit (Low /
Medium / High) (dB ): 48/50.5/53 db(A) Noise
Level Outdoor unit: 66 db(A) Noise Level Indoor
unit/Outdoor unit: 62/65 db(A) Power Supply
Wire Outdoor / Fuses: 5×2.5/3×20 No x mm² / ?
Power Supply Wire Indoor/Fuses: 3×1.5/1×10
Signal Wires: 2 x 1.0 Shield No x mm²
Dimensions WxDxH – Panel: 950 x 950 x 55
mm Dimensions WxDxH – Indoor: 840 x 840 x
287 mm Dimensions WxDxH – Outdoor: 952 x
415 x 1,333 mm Net Weight – Panel: 5/29.7/111.
3 kg Liquid line – Gas line: 3/8"/5/8" Refrigerant
/ Charge: R32/2.950 g Outdoor Operation
Outdoor Operation Temperature Range

Ophalen in Duiven
