Bouwjaar: 2025. Weight 1000kg
Digging bucket capacity 0.025cbm/120kg
Bucket width 380mm
Engine KOOP 192F
Bore stroke Single cylinder, fan cool
Rated power 7kw/3000r/min
Main pump G5-6...

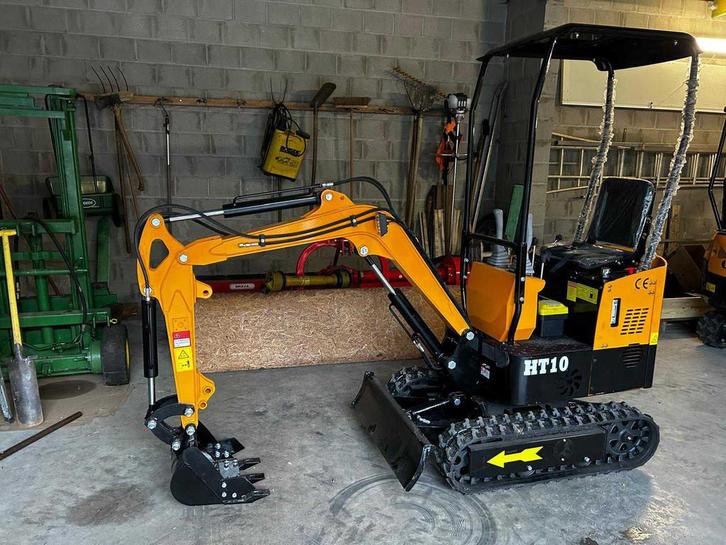

HT10 Mini-Excavator 2025

Veiling:
- Sluitdatum: 22 dec. 2025
- Type: online
- Website: https://troostwijkauctions.com/l/ht10-mini-excavator-2025-A3-37378-5012?utm_source=marktplaats
Type: Minigraver
Bouwjaar: 2025
Referentienummer: A3-37378-5012
Fuel types: Diesel

Weight  1000kg
Digging bucket capacity  0.025cbm/120kg
Bucket width  380mm
Engine  KOOP 192F
Bore stroke  Single cylinder, fan cool
Rated power  7kw/3000r/min
Main pump  G5-6
Displacement  6.8ml/r
Swing motor  SANYANG (BMRS-250)
Traveling motor  SANYANG (BMT-245)
Travel speed  1. 5km/h
Main Demensions
Overall dimension( LxWxH)  2775 X 930 x 2219 mm
Wheelbase  910 mm
Total length of track  1230mm
Platform ground clearance  380mm
Platform back turming radius  784 mm
Chassis width  896 mm
Track width  180 mm
Chassis ground clearance  132 mm
Track height  320 mm
Operating Range
Max. Digging depth  1650 mm
Max. Vertical digging depth  1375 mm
Max. Digging height  2610 mm
Max. Dumping height  1850 mm
Max. Digging radius on ground  2850 mm
Min. Rotation radius  1330 mm
Max. Upgrade height of bulldozer blade  345mm
Max. Digging depth of bulldozer blade  255 mm
