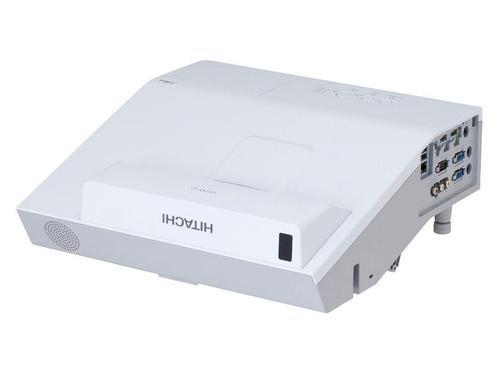

Hitachi UST CP AX3503 3600 lumen beamer / projector

Ultra Short Throw beamer van Hitachi met weinig branduren. Model CP AX 3503

Hieronder een aantal specificaties:

Projection Technology 3LCD, 3 chip technology
Resolution XGA 1024 x 768
White Light Output 3,600 ANSI lumens
Color Light Output 3,600 ANSI lumens
Colors 16.7 million colors
Aspect Ratio Native 4:3 / 16:9 and 16:10 compatible
Contrast Ratio 5000 : 1 (using active IRIS)
Throw Ratio
(distance : width)
0.2 : 1 from edge of projector to screen
0.3 : 1 from mirror cover to screen
Focus Distance 15" - 26" from mirror cover to screen
Display Size 60" - 100"
Lens & Operation
Lens F = 1.8, f = 4.21 mm
Lamp Wattage 250W
Expected Lamp Life* Approximately 4,000 hours (standard mode)
6,000 hours (Eco mode)
Expected Filter Life Approximately 4,000 hours
Speaker Output 16W x 1
Keystone H and V: +/- 5º
Compatibility
Computer VGA, SVGA, XGA, WXGA, WXGA+/SXGA/WSXGA+/UXGA
(compressed), MAC 16"
H-Sync 15 kHz - 106 kHz
V-Sync 50 Hz - 120 Hz
Composite Video NTSC, NTSC4.43, PAL, PAL-M, -N, SECAM
Component Video 480i, 480p, 576i, 720p, 1080i, 1080p
HDMI 480i, 480p, 576i, 720p, 1080i, 1080p,
computer signal TMDS clock 27 MHz - 150 MHz
Connectors
Digital Input HDMI x 2 (HDCP compliant)
Computer Input 1 15-pin mini D-sub x 1
Computer Input 2 15-pin mini D-sub x 1
Computer Monitor Output 15-pin mini D-sub x 1 (shared with computer in 2)
Video Input
S-Video N/A
Composite Video RCA jack x 1
Component Video 15-pin D-sub x 2 (shared with computer in 1/2)
Audio Input 3.5 mm stereo mini jack x 1, RCA jack (L/R) x 1,
MIC-in 3.5 mm mini jack x 1
Audio Output 3.5 mm stereo mini jack x 1
Network LAN Wired RJ-45 port (10 base-T / 100 base-TX)
Network LAN Wireless USB-A, IEEE802.11 b/g/n - optional wireless adapter required
USB Type A x 2 (PC-less presentation, wireless adapter)
Type B x 1 (USB display or mouse control)
Control Terminals 9-pin D-sub x 1 (RS-232 control)
Ratings & Warranty
Power Supply AC100-120V / AC220-240V, 50/60Hz
Power Consumption 360W
Operating Temperature 32ºF - 104ºF (0ºC - 40ºC)
Dimensions (W x D x H) 14.8" x 14.2" x 5.4" (excluding protruding parts)
Weight Approximately 9.5 lbs
Approvals UL 60950-1 / cUL, FCC part 15 subpart B Class B
