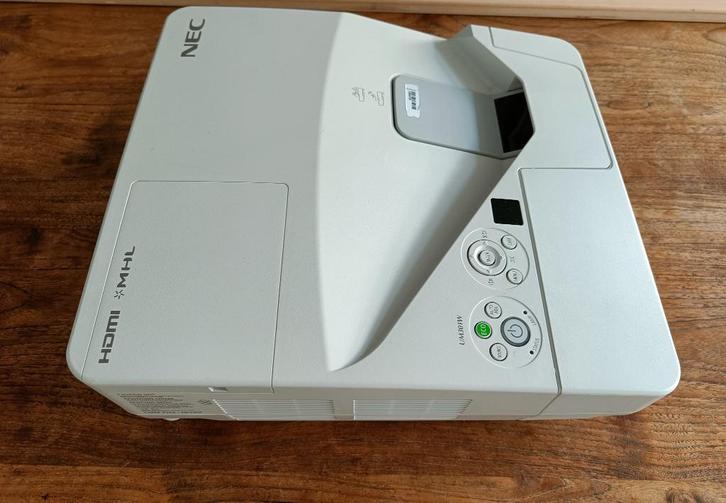

Ultra korte afstand beamer, goed te gebruik in klaslokaal, zowel staand als hangend.
Lamp heeft nog 58% levensduur (+- 2500 uur).

Hieronder de specificaties van Sharp NEC.

Zijn er nog vragen, laat het me weten.

Groet,
Hans

Get great performance while saving the environment. Advanced Eco features help to substantially lower your operating cost without compromising on quality and flexibility. Less shadow and glare gives the presenter more space to engage with his audience and enhances the experience with interactive white boards.
The UM301W is particularly suited for classrooms and small to medium sized meeting rooms.
Benefits

• No Shadow and Glare thanks to ultra-short throwing distance – for an enhanced interactive whiteboard experience and more space to engage with your audience when presenting.
• Minimized Cost of Ownership – due to long lamp life and lower power consumption.
• Innovative new Eco functions – to reduce power consumption.
• Optional Multi-pen and Touch Interactivity – with auto-calibration on any kind of surface.
• Future proof connectivity – due to numerous analog and digital connection terminals including MHL support, network capability as well as optional wireless connectivity.

Product Information
Product Name

NEC UM301W
Product Group

Professional Ultra-Short-Throw Projector
Order Code

60003840
Projection Technology

3LCD Technology
Native Resolution

1280 x 800 (WXGA)
Aspect Ratio

16:10
Contrast Ratio

4000:1
Brightness

3000 Lumen (approx. 75% in Normal, 60% in Eco Mode)
Lamp

235 W High Bright / 170 W Normal / 140 W Eco Mode
Light Source Life [hrs]

8000 Eco / 5000 Normal / 4000 High Bright Mode
Lens

F= 1.8, f= 4.78 mm
Lens Offset [%]

81
Keystone correction

+/- 10° manual horizontal / +/- 10° manual vertical
Projection Angle [°]

49.2
Projection Factor

0.36 : 1
Projection Distance [m]

0.1 – 0.51
Screen Size (diagonal) [cm] / [inch]

Maximum: 279.4 / 110"; Minimum: 147.3 / 58"
Zoom

1.4 x Digital Zoom
Focus Adjustment

Manual
Supported Resolutions

1024 x 768 (XGA);1152 x 864 (XGA);1152 x 870 (MAC 21");1280 x 1024 (MAC 23");1280 x 1024 (SXGA);1280 x 720 (HDTV 720p);1280 x 768 (WXGA);1280 x 800 (WXGA);1280 x 960 (SXGA);1360 x 768 (WXGA);1366 x 768 (WXGA);1400 x 1050 (SXGA+);1440 x 900 (WXGA+);1600 x 1200 (UXGA);1600 x 900 (WXGA++);1680 x 1050 (WSXGA+);1920 x 1080 (HDTV 1080i/60;HDTV 1080i/50);1920 x 1200 (WUXGA);640 x 480 (VGA/MAC 13");720 x 480 SDTV 576p/576i;720 x 576 SDTV 480p/480i;800 x 600 (SVGA);832 x 624 (MAC 16")
Frequency

Horizontal: 15–100 kHz (RGB: 24 kHz– 100 kHz); Vertical: 50 – 120 Hz
Connectivity
RGB (analog)

Input: 1 x Mini D-sub 15-pin, compatible to component (YPbPr)
Output: 1 x Mini D-sub 15 pin
Digital

Input: 1 x HDMI™ (Deep Color, Lip sync); 1 x HDMI™ with MHL support
Video

Input: 1 x RCA
Audio

Input: 1 x 3.5 mm Stereo Mini Jack; 1 x RCA Stereo
Output: 1 x 3.5 mm Stereo Mini Jack (variable)
Microphone

Input: 1 x 3.5 mm Stereo Mini Jack (Dynamic mic)
Control

Input: 1 x D-Sub 9 pin (RS-232) (male)
LAN

1 x RJ45; Optional WLAN
USB

1 x Type B; 2 x Type A (USB 2.0 high speed)
Video Signals

NTSC; NTSC 3.58; NTSC 4.43; PAL; PAL-M; PAL-N; PAL60; SECAM
Remote Control
Remote Control

Aspect Ratio; Audio Control; Auto Adjust; AV Mute; Digital Zoom; Direct Source Select; Freeze; Help Eco Mode; Help-function; ID set; Keystone Correction; Picture Adjust; Presentation and Mouse Control
Electrical
Power Supply

100-240 V AC; 50 - 60 Hz
Power Consumption [W]

227 (Normal) / 190 (Eco) / 3 (Network Stand-by) / 0.5 (Stand-by); 285 (High Bright)
Mechanical
Dimensions (W x H x D) [mm]

378 x 112 x 428 (without lens and feet)
Weight [kg]

5.5
Fan Noise [dB (A)]

27 / 27 / 35 (ECO / Normal / High Bright)
Environmental Conditions
Operating Temperature [°C]

5 to 40
Operating Humidity [%]

20 to 80 non-condensing
Storage Temperature [°C]

-10 to 50
Storage Humidity [%]

20 to 80 non-condensing
Ergonomics
Safety and Ergonomics

CE; Gost-R; RoHS; TüV GS
Speakers [W]

1 x 20 (mono)
Additional Features
Special Characteristics

AMX Beacon; Auto Eco Mode; Auto Power ON/OFF; Carbon Savings Meter; Colour Management; Content Transmission via Network; Crestron RoomView; DICOM simulation; Direct Power-Off Function; High Altitude Mode; Kensington security slot; Keypad Lock; Magnify; NaViSet Administrator 2; Off-Timer; Optional User Logo; Optional WLAN; OSD with 29 languages; Password Security System; PJ LINK; Quick On/Off; Remote control and administration via LAN and RS232; Security Bar; Test Pattern; USB Display; USB Viewer for JPEG; Virtual Remote for direct PC control; Wall Colour Correction
Green Features
Energy Efficiency

75 % AV mute function; Auto ECO mode; ECO scheduler; Green one touch ECO and AV mute button; Intelligent power management; Longer light source life; Reduced power consumption. Only 0.4W stand-by; Software scheduling
Ecological Materials

100% recyclable packaging; Downloadable manuals; ECO packaging
Ecological Standards

ErP compliant; RoHs compliant
